B&R 5ACCIF01.FPLK-000
1x POWERLINK interface for real-time communication
- MPN
- 5ACCIF01.FPLK-000
- Category
- Interface options
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCIF01.FPLK-000?
1x POWERLINK interface for real-time communication
512 kB nvSRAM
Integrated hub for economical wiring
Configurable ring redundancy
Poll-response chaining
Compatible with APC2100/PPC2100 and APC2200/PPC2200

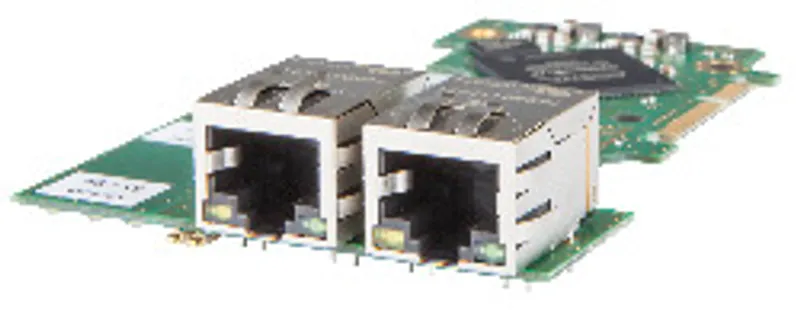

Interface option 5ACCIF01.FPLK-000 is equipped with 2 female RJ45 connectors; both connectors are connected to an integrated POWERLINK hub. In addition, 512 kB nvSRAM is installed.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| LEDs | L1, L2, L3 |
| B&R ID code | 0xE9BA |
Controller
| nvSRAM – Size | 512 kB |
| nvSRAM – Data retention | 20 years |
| nvSRAM – Read/Write endurance | Min. 1,000,000 |
| nvSRAM – Remanent variables in power failure mode | 256 kB (for e.g. Automation Runtime, see Automation Help) |
Interfaces
| POWERLINK – Quantity | 1 (integrated 2-port hub) |
| POWERLINK – Type | Type 4, redundant (note: For additional information, see Automation Help ( Communication / POWERLINK / General information / Hardware - IF / LS ).) |
| POWERLINK – Variant | RJ45, shielded |
| POWERLINK – Transfer rate | 100 Mbit/s |
| POWERLINK – Transfer | 100BASE-TX |
| POWERLINK – Line length | Max. 100 m between two stations (segment length) |
Electrical properties
| Power consumption | 1.75 W |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | -20 to 55°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Weight | 25 g |
