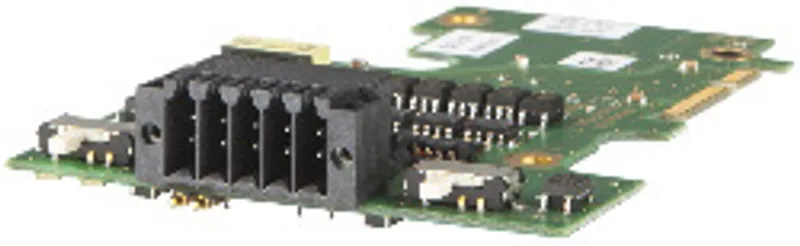

B&R 5ACCIF01.FSS0-000
Interface card, 2x RS422/RS485 interface
- MPN
- 5ACCIF01.FSS0-000
- Category
- Interface options
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5ACCIF01.FSS0-000?
Interface card - 2x RS422/RS485 interface - For APC2100/PPC2100/APC2200/PPC2200 - Only available with a new device
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| LEDs | L2, L3 |
| B&R ID code | 0xED7B |
Interfaces
| COM – Type | Can be switched on and off with slide switch |
| COM – Default setting | Off |
| COM – Quantity | 2 |
| COM – Type | RS422/RS485, galvanically isolated |
| COM – Execution | 10-pin, male |
| COM – UART | 16550-compatible, 16-byte FIFO buffer |
| COM – Max. baud rate | 115 kbit/s |
Electrical properties
| Power consumption | 1 W |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | -20 to 60°C (note: For detailed information, see the temperature tables in the user's manual.) |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Weight | 25 g |
Accessories
Optional accessories (1)
| 0TB1210.3100 | Terminal blocks — Two-row 10-pin terminal block 0TB1210.3100 is used to connect to the button/switch interface of the Automation Panel 9xD and to the interfa… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5ACCIF01.FSS0-000: frequently asked questions
When can 5ACCIF01.FSS0-000 be shipped?
5ACCIF01.FSS0-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCIF01.FSS0-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCIF01.FSS0-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCIF01.FSS0-000, subject to availability and destination.
