B&R 5ACCIF01.FPLS-001
1x POWERLINK interface managing or controlled node1x RS232…
- MPN
- 5ACCIF01.FPLS-001
- Category
- Interface options
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

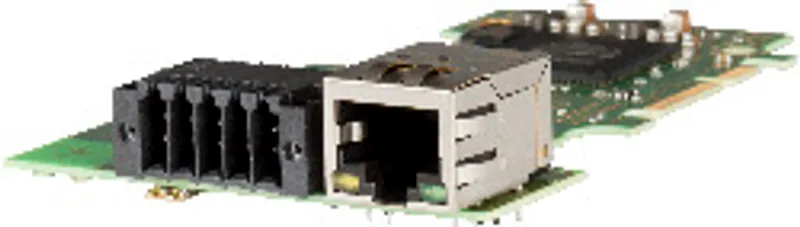

What is the B&R 5ACCIF01.FPLS-001?
1x POWERLINK interface managing or controlled node
1x RS232 interface
512 kB nvSRAM
Compatible with APC2x00 / PPC2x00
Interface option 5ACCIF01.FPLS-001 is equipped with a POWERLINK and RS232 interface. In addition, 512 kB nvSRAM is installed.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T4 (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.) |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) (note: Yes, but applies only if all components installed in the complete system have this certification and are listed on the associated DNV certificate for the product family.) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV3 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| LEDs | L2, L3 |
| B&R ID code | 0xE9B9 |
Controller
| nvSRAM – Size | 512 kB |
| nvSRAM – Data retention | 20 years |
| nvSRAM – Read/Write endurance | Min. 1,000,000 |
| nvSRAM – Remanent variables in power failure mode | 256 kB (for e.g. Automation Runtime, see Automation Help) |
Interfaces
| COM – Quantity | 1 |
| COM – Type | RS232, modem supported, not galvanically isolated |
| COM – Execution | 10-pin, male |
| COM – UART | 16550-compatible, 16-byte FIFO buffer |
| COM – Max. baud rate | 115 kbit/s |
| POWERLINK – Quantity | 1 |
| POWERLINK – Type | Type 4 (note: For additional information, see Automation Help ( Communication / POWERLINK / General information / Hardware - IF / LS ).) |
| POWERLINK – Execution | RJ45, shielded |
| POWERLINK – Transfer rate | 100 Mbit/s |
| POWERLINK – Transfer | 100BASE-TX |
| POWERLINK – Line length | Max. 100 m between two stations (segment length) |
Electrical properties
| Power consumption | 1.5 W |
Operating conditions
| Pollution degree per EN 61131-2 | Pollution degree 2 |
Ambient conditions
| Temperature – Operation | -20 to 55°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Weight | 25 g |
Accessories
Optional accessories (1)
| 0TB1210.3100 | Terminal blocks — Two-row 10-pin terminal block 0TB1210.3100 is used to connect to the button/switch interface of the Automation Panel 9xD and to the interfa… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5ACCIF01.FPLS-001: frequently asked questions
When can 5ACCIF01.FPLS-001 be shipped?
5ACCIF01.FPLS-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACCIF01.FPLS-001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACCIF01.FPLS-001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACCIF01.FPLS-001, subject to availability and destination.
