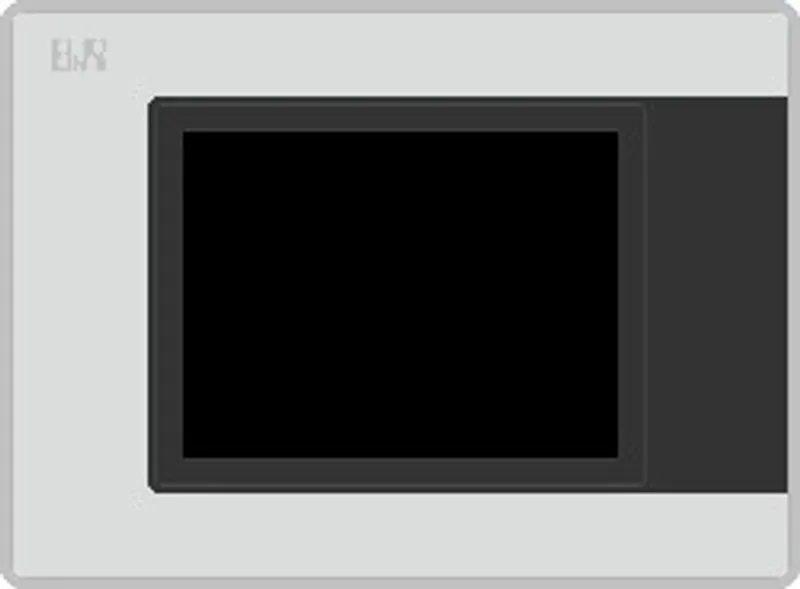

B&R 5PP520.0573-01
5.7" TFT VGA color display
- MPN
- 5PP520.0573-01
- Category
- System units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 5PP520.0573-01?
5.7" TFT VGA color display
Analog resistive touch screen
Intel® Atom™ technology
Compact installation depth
Fanless operation
Can be expanded with an interface or I/O board
Power Panel 520 5.7" VGA TFT display with touch screen (resistive), connections for 1x RS232, 2x USB 2.0, 1x Ethernet 10/100/1000, can be expanded with an interface and I/O board, IP65 protection (front), order 24 VDC connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. If an interface board with SRAM is installed, the service life is 2½ years.) |
| Battery – Removable | Yes, accessible from the outside |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Power, CF, Link, Run |
| B&R ID code | 0xB4CC |
| Cooling | Fanless |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
Controller
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended.) |
| Power failure logic – Buffer time | 10 ms |
| Memory – Type | DDR2 SDRAM |
| Memory – Memory size | Max. 2 GB |
| Graphics – Controller | Intel® Graphics Media Accelerator 500 |
| Bootloader | BIOS |
| Mode/Node switches | 2, 16 positions each (back) |
| Watchdog | MTCX |
Display
| Viewing angles – Horizontal | Direction R = 80° / Direction L = 80° |
| Viewing angles – Vertical | Direction U = 80° / Direction D = 80° |
| Backlight – Type | LED |
| Backlight – Brightness (dimmable) | Typ. 20 to 400 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25°C ambient temperature. Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.) |
| Touch screen – Technology | Analog, resistive (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Controller | B&R, serial, 12-bit (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Touch screen – Transmittance | 81% ±3% (note: Touch screen drivers for approved operating systems are available for download in the Downloads section of the B&R website (www.br-automation.com).) |
| Type | TFT color |
| Diagonal | 5.7" (144 mm) |
| Colors | 262,144 |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 850:1 |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated (note: The COM1 interface is identified in BIOS as the COM A interface.) |
| COM1 – Variant | 9-pin male DSUB connector (note: The COM1 interface is identified in BIOS as the COM A interface.) |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer (note: The COM1 interface is identified in BIOS as the COM A interface.) |
| COM1 – Max. baud rate | 115 kbit/s (note: The COM1 interface is identified in BIOS as the COM A interface.) |
| CompactFlash slot 1 – Type | Type I |
| SD memory card slot – Type | SD card |
| USB – Quantity | 2 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 1 A per connection |
| Ethernet – Quantity | 1 |
| Ethernet – Controller | Intel 82574 |
| Ethernet – Variant | Shielded RJ45 port |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
Keys
| Function keys | No |
| System keys | No |
| Service life | - |
| LED luminous intensity | - |
Slots
| Interface board | Yes |
| I/O board | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25%, SELV (note: IEC 61010-2-201 requirements must be observed.) |
| Nominal current | 1.5 A (note: The specified value applies to a nominal voltage of 24 VDC.) |
| Inrush current | Typ. 3 A, max. 50 A for <300 µs |
| Power consumption | 23 W (note: The specified value applies to a system unit with a CPU board but without an interface and I/O board.) |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card, connected IF board or optional IF cover); Front: IP65, protected against dust and hose-directed water |
Ambient conditions
| Temperature – Operation | 0 to 55°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | See temperature/humidity diagram |
| Relative humidity – Storage | See temperature/humidity diagram |
| Relative humidity – Transport | See temperature/humidity diagram |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 6 ms |
| Shock – Transport | 30 g, 6 ms |
| Elevation – Operation | Max. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Galvanized plate |
| Front – Material | Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Light background color | RAL 9006 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Dark border color around display | RAL 7024 (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Frame | Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Front – Gasket | Flat gasket around display front (note: Visual deviations in color and surface quality are possible due to process or batch conditions.) |
| Dimensions – Width | 212 mm |
| Dimensions – Height | 156 mm |
| Dimensions – Depth | 55 mm |
| Weight | 1287 g |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5PP5CP.US15-02 | CPU boards — Intel Atom Z530 1.6 GHz; Intel US15W chipset; 1x DDR2 memory slot; Intel GMA 500; Insyde BIOS CPU board Intel Atom Z530 1.6 GHz - Single co… |
| 5PP5CP.US15-01 | CPU boards — Intel Atom Z520 1.33 GHz; Intel US15W chipset; 1x DDR2 memory socket; Intel GMA 500; Insyde BIOS CPU board Intel Atom Z520 1.33 GHz - Singl… |
| 5PP5CP.US15-00 | CPU boards — Intel Atom Z510 1.1 GHz; Intel US15W chipset; 1x DDR2 memory socket; Intel GMA 500; Insyde BIOS CPU board Intel Atom Z510 1.1 GHz - Single… |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Optional accessories (13)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
| 5CFCRD.2048-06 | CompactFlash cards — 2 GBSLC flash CompactFlash card |
| 5PP5IO.GNAC-00 | I/O board — 1x USB 2.0; 1x RS232/422/485; 1x HDA sound; 1x Smart Display Link / DVI; Compatible with the PP500 and APC511 The 5PP5IO.GNAC-00 I/O board… |
| 5PP5IF.FXCM-00 | Interface boards — 1x CAN bus master interface; 1x X2X Link master interface; 512 kB SRAM; Compatible with the PP500, APC511 and APC511 The 5PP5IF.FXCM-00 int… |
| 5PP5IF.FX2X-00 | Interface boards — 1x X2X Link master interface; 512 kB SRAM; Compatible with the PP500, APC511 and APC511 The 5PP5IF.FX2X-00 interface board has one X2X Link… |
| 5PP5IF.FPLM-00 | Interface boards — 2x POWERLINK interfaces; 512 kB SRAM; Integrated hub for efficient cabling; Configurable ring redundancy; Poll response chaining; Compatibl… |
| 5PP5IF.FETH-00 | Interface boards — 1 network connection (10/100/1000 Mbit/s); 512 kB SRAM; Compatible with the PP500, APC511 and APC511 The interface board 5PP5IF.FETH-00 has… |
| 5PP5IF.FCAN-00 | Interface boards — 1x CAN bus master interface; 512 kB SRAM; Compatible with the PP500, APC511 and APC511 The 5PP5IF.FCAN-00 interface board has one CAN bus m… |
| 5PP5IF.CHDA-00 | Interface boards — 1x MIC; 1x Line IN; 1x Line OUT; Compatible with the PP500, APC511 and APC511 The 5PP5IF.CHDA-00 interface board has an HDA sound chip with… |
| 5PP5IF.CETH-00 | Interface boards — 1 network connection (10/100/1000 Mbit/s); Compatible with the PP500, APC511 and APC511 The interface board 5PP5IF.CETH-00 has a 10/100/100… |
| 5MMUSB.4096-01 | USB accessories — 4 GB; USB 1.1, USB 2.0; High transfer rate; High data storage; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 4096 MB… |
| 5MMUSB.2048-01 | USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5PP520.0573-01: frequently asked questions
When can 5PP520.0573-01 be shipped?
5PP520.0573-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PP520.0573-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PP520.0573-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PP520.0573-01, subject to availability and destination.
