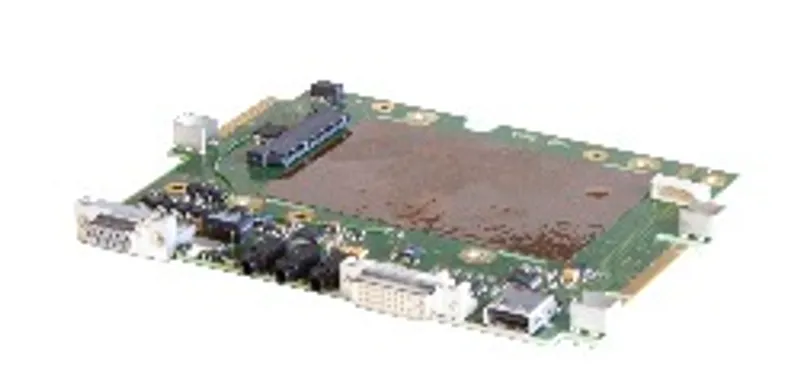

B&R 5PP5IO.GNAC-00

1x USB 2.01x RS232/422/4851x HDA sound1x Smart Display Link…

MPN: 5PP5IO.GNAC-00
Category: I/O board

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5PP5IO.GNAC-00?

1x USB 2.0

1x RS232/422/485

1x HDA sound

1x Smart Display Link / DVI

Compatible with the PP500 and APC511

The 5PP5IO.GNAC-00 I/O board has 1x RS232/422/485 interface, 1x USB 2.0 connection, 1x HDA sound connection and 1x female Smart Display Link/DVI connector. This I/O board can be connected to and operated on Power Panel 500 and Automation PC 511 systems with an I/O board slot.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xB4DD

Interfaces

COM2 – Type	RS232/422/485, galvanically isolated (note: Interface COM2 is identified in BIOS as interface COMD.)
COM2 – Variant	Female DSUB connector, 9-pin (note: Interface COM2 is identified in BIOS as interface COMD.)
COM2 – UART	16550-compatible, 16-byte FIFO buffer (note: Interface COM2 is identified in BIOS as interface COMD.)
COM2 – Max. baud rate	115 kbit/s (note: Interface COM2 is identified in BIOS as interface COMD.)
USB – Quantity	1
USB – Type	USB 2.0
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
USB – Current-carrying capacity	Max. 1 A
Panel/Monitor interface – Variant	Female DVI-I connector
Panel/Monitor interface – Type	SDL/DVI
Audio – Type	HDA sound
Audio – Inputs	Microphone, Line In
Audio – Outputs	Line Out

Electrical properties

Power consumption

7 W

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
