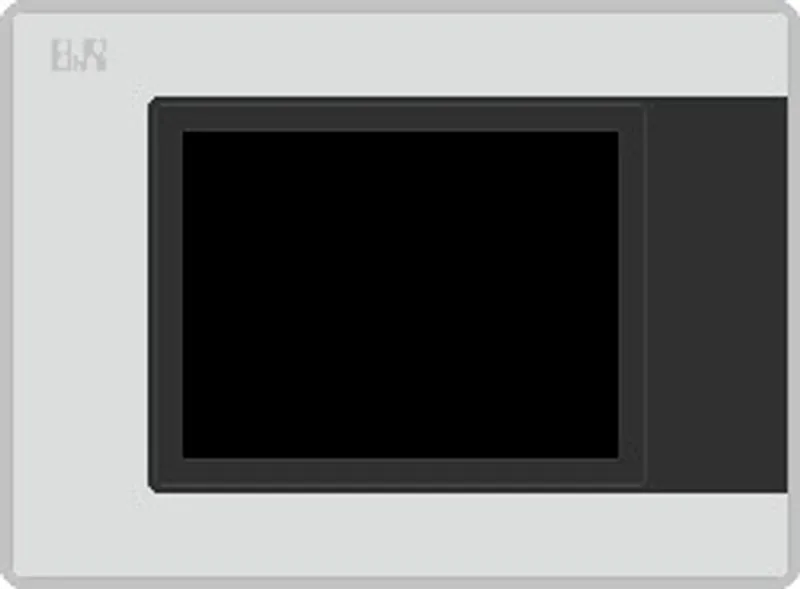

B&R 5PP520.0573-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | System units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1287 kg |
Shipping & availability
When can 5PP520.0573-00 be shipped?
5PP520.0573-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PP520.0573-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PP520.0573-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PP520.0573-00, subject to availability and destination.
5.7" TFT VGA color displayAnalog resistive touch screenIntel® Atom™ technologyCompact installation depthFanless operationCan be upgraded with interface board Power Panel 520 5.7" VGA TFT display with touch screen (resistive), connections for 1x RS232, 2x USB 2.0, 1x Ethernet 10/100/1000, can be expanded with an interface board, IP65 protection (front), order 24 VDC connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
Specifications
Specifications
| LEDs | Power, CF, Link, Run |
| B&R ID code | 0xB4CB |
| Cooling | Fanless |
| Type | USB 2.0 |
| Service life | - |
| Removable | Yes, accessible from the outside |
| Variant | Shielded RJ45 port |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| Bootloader | BIOS |
| Mode/Node switches | 2, 16 positions each (back) |
| Watchdog | MTCX |
| Controller | Intel 82574 |
| Buffer time | 10 ms |
| Memory size | Max. 2 GB |
| Diagonal | 5.7" (144 mm) |
| Colors | 262,144 |
| Resolution | VGA, 640 x 480 pixels |
| Contrast | 850:1 |
| Horizontal | Direction R = 80° / Direction L = 80° |
| Vertical | Direction U = 80° / Direction D = 80° |
| Brightness (dimmable) | Typ. 20 to 400 cd/m² |
| Half-brightness time | 50,000 h |
| Technology | Analog, resistive |
| Transmittance | 81% ±3% |
| UART | 16550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 115 kbit/s |
| Quantity | 1 |
| Transfer rate | 10/100/1000 Mbit/s |
| Current-carrying capacity | Max. 1 A per connection |
| Function keys | No |
| System keys | No |
| LED luminous intensity | - |
| Interface board | Yes |
| I/O board | No |
| Nominal voltage | 24 VDC ±25%, SELV |
| Nominal current | 1 A |
| Inrush current | Typ. 3 A, max. 50 A for <300 µs |
| Power consumption | 23 W |
| Galvanic isolation | Yes |
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card, connected IF board or optional IF cover) Front: IP65, protected against dust and hose-directed water |
| Operation | Max. 3000 m (component-dependent) |
| Storage | 30 g, 6 ms |
| Transport | 30 g, 6 ms |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Material | Polyester |
| Frame | Aluminum, naturally anodized |
| Light background color | RAL 9006 |
| Dark border color around display | RAL 7024 |
| Gasket | Flat gasket around display front |
| Width | 212 mm |
| Height | 156 mm |
| Depth | 55 mm |
| Weight | 1287 g |
