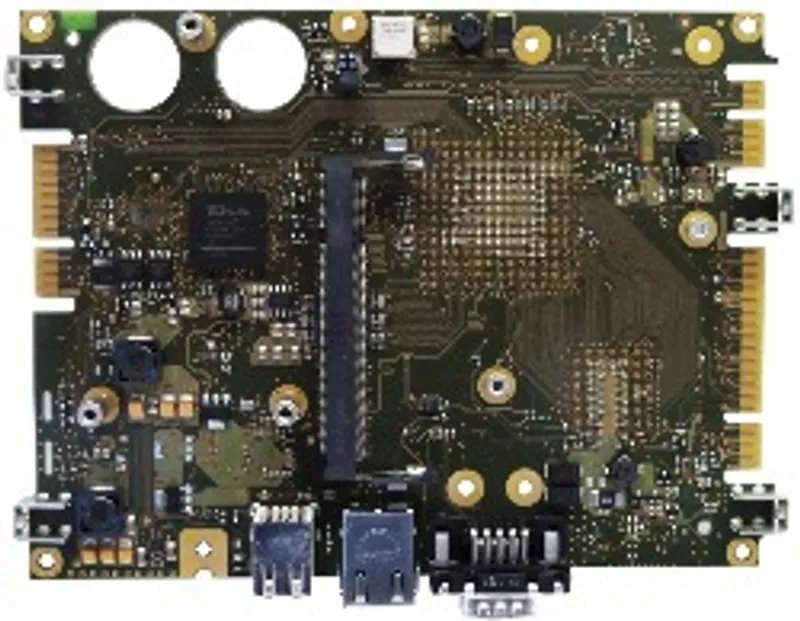

B&R 5PP5CP.US15-00
Intel Atom Z510 1.1 GHz
- MPN
- 5PP5CP.US15-00
- Category
- CPU boards
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5PP5CP.US15-00?
Intel Atom Z510 1.1 GHz
Intel US15W chipset
1x DDR2 memory socket
Intel GMA 500
Insyde BIOS
CPU board Intel Atom Z510 1.1 GHz - Single core - US15W chipset
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Controller
| Processor – Type | Intel® Atom™ Z510PT |
| Processor – Clock frequency | 1100 MHz |
| Processor – Total number of cores | 1 |
| Processor – Architecture | 45 nm |
| Processor – L1 cache | 32 kB |
| Processor – L2 cache | 512 kB |
| Processor – External bus | 400 MHz |
| Processor – Intel 64 architecture | No |
| Processor – Intel Hyper-Threading Technology | Yes |
| Processor – Intel Virtualization Technology (VT-x) | No |
| Processor – Enhanced Intel SpeedStep Technology | Yes |
| Processor – Expanded command set | SSE2, SSE3, SSSE3 |
| Real-time clock – Accuracy | At 25°C: Typ. 12 ppm (1 second) per day (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%.) |
| Real-time clock – Battery-backed | Yes |
| Memory slot – Number of memory channels | 1 |
| Memory slot – Type | DDR2 |
| Memory slot – Memory size | Max. 2 GB |
| Graphics – Controller | Intel® Graphics Media Accelerator 500 |
| Graphics – Memory | Up to 256 MB (note: Allocated in main memory.) |
| Graphics – Color depth | Max. 32-bit |
| Graphics – Resolution | Depends on the system unit used (note: For PP500: The maximum resolution results automatically from selection of the PP500 system unit.) |
| Bootloader | Insyde BIOS |
| Chipset | Intel US15WPT |
| Power management | ACPI 3.0 |
Accessories
Required accessories (order separately)
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
5PP5CP.US15-00: frequently asked questions
When can 5PP5CP.US15-00 be shipped?
5PP5CP.US15-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PP5CP.US15-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PP5CP.US15-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PP5CP.US15-00, subject to availability and destination.
