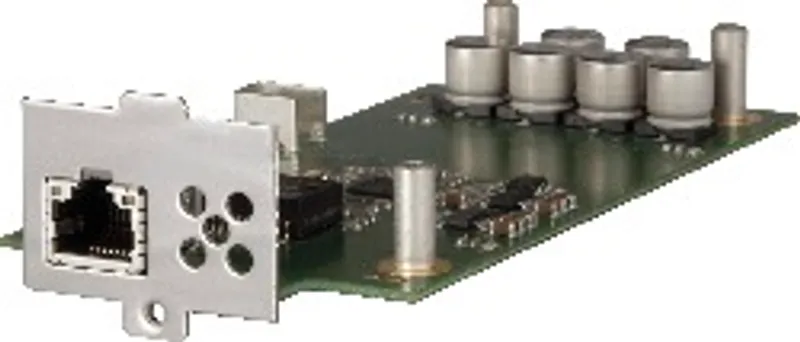

B&R 5PP5IF.FETH-00

1 network connection (10/100/1000 Mbit/s)512 kB…

MPN: 5PP5IF.FETH-00
Category: Interface boards

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5PP5IF.FETH-00?

1 network connection (10/100/1000 Mbit/s)

512 kB SRAM

Compatible with the PP500, APC511 and APC511

The interface board 5PP5IF.FETH-00 has a 10/100/1000 Mbit/sec network connection, 512 kB SRAM and can be used as an additional network interface in a Power Panel 500, Automation PC 510 or Automation PC 511.

Specifications

General information

Diagnostics – Data transfer	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xB7C4

Controller

SRAM – Size	512 kB
SRAM – Battery-backed	Yes
SRAM – Remanent variables in power failure mode	256 kB (e.g. Automation Runtime, see Automation Help) (note: With optimized access using write combining.)

Interfaces

Ethernet – Quantity	1
Ethernet – Controller	Intel 82574
Ethernet – Variant	Shielded RJ45 port
Ethernet – Transfer rate	10/100/1000 Mbit/s
Ethernet – Line length	Max. 100 m between two stations (segment length)

Electrical properties

Power consumption

4 W

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
