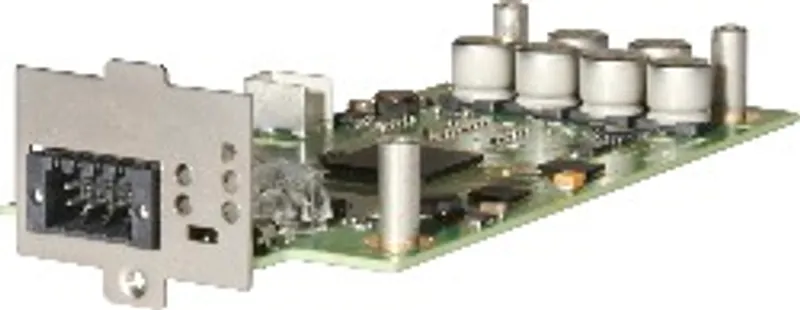

B&R 5PP5IF.FCAN-00

1x CAN bus master interface512 kB SRAMCompatible with the…

MPN: 5PP5IF.FCAN-00
Category: Interface boards

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5PP5IF.FCAN-00?

1x CAN bus master interface

512 kB SRAM

Compatible with the PP500, APC511 and APC511

The 5PP5IF.FCAN-00 interface board has one CAN bus master interface and 512 kB SRAM.

Specifications

General information

Diagnostics – Module status	Yes, using LED status indicator
Diagnostics – Data transfer	Yes, using LED status indicator
Diagnostics – Terminating resistor	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xB4DA

Controller

SRAM – Size	512 kB
SRAM – Battery-backed	Yes
SRAM – Remanent variables in power failure mode	256 kB (e.g. Automation Runtime, see Automation Help) (note: With optimized access using write combining.)

Interfaces

CAN – Type	Can be switched on and off with slide switch
CAN – Default setting	Switched off
CAN – Quantity	1
CAN – Variant	Connector, 8-pin, male
CAN – Transfer rate	Max. 500 kbit/s

Electrical properties

Power consumption

3 W

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Accessories

Required accessories (order separately)

0TB1208.3100

Terminal blocks — The 2-row 8-pin terminal block TB1208 is used to connect to various Power Panel 500 interface boards.
