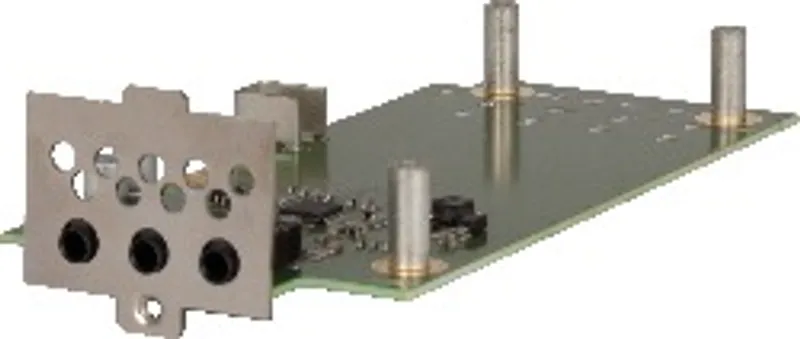

B&R 5PP5IF.CHDA-00

1x MIC1x Line IN1x Line OUTCompatible with the PP500

MPN: 5PP5IF.CHDA-00
Category: Interface boards

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5PP5IF.CHDA-00?

1x MIC

1x Line IN

1x Line OUT

Compatible with the PP500, APC511 and APC511

The 5PP5IF.CHDA-00 interface board has an HDA sound chip with externally accessible MIC, Line IN and Line OUT channels.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xB4D6

Interfaces

Audio – Type	HDA sound
Audio – Controller	Realtek ALC 662
Audio – Inputs	Microphone, Line In
Audio – Outputs	Line Out

Electrical properties

Power consumption

2 W

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
