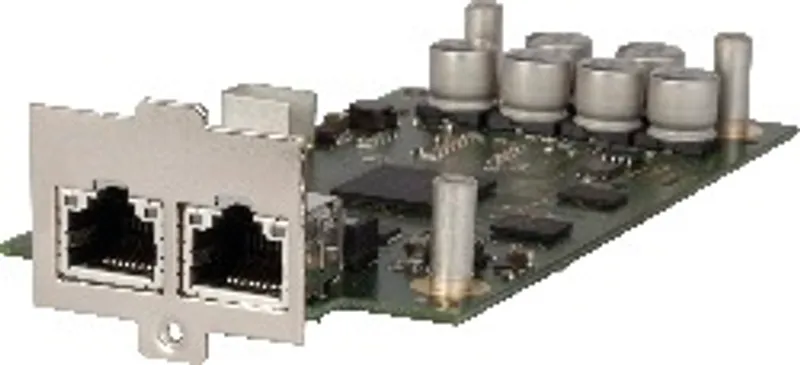

B&R 5PP5IF.FPLM-00

2x POWERLINK interfaces

MPN: 5PP5IF.FPLM-00
Category: Interface boards

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5PP5IF.FPLM-00?

2x POWERLINK interfaces

512 kB SRAM

Integrated hub for efficient cabling

Configurable ring redundancy

Poll response chaining

Compatible with the PP500, APC511 and APC511

The 5PP5IF.FPLM-00 interface board has two POWERLINK connections and 512 kB SRAM.

Specifications

General information

Diagnostics – Data transfer	Yes, using LED status indicator
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xB4D8

Controller

SRAM – Size	512 kB
SRAM – Battery-backed	Yes
SRAM – Remanent variables in power failure mode	256 kB (e.g. Automation Runtime, see Automation Help) (note: With optimized access using write combining.)

Interfaces

POWERLINK – Quantity	2
POWERLINK – Type	Type 4 (note: For additional information, see Automation Help (Communication - POWERLINK - General information - Hardware - IF / LS).)
POWERLINK – Variant	2x shielded RJ45 port (hub)
POWERLINK – Transfer rate	100 Mbit/s
POWERLINK – Transfer	100BASE-TX
POWERLINK – Line length	Max. 100 m between two stations (segment length)

Electrical properties

Power consumption

3 W

Ambient conditions

Temperature – Operation	0 to 55°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

5PP5IF.FPLM-00: frequently asked questions

When can 5PP5IF.FPLM-00 be shipped?

5PP5IF.FPLM-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5PP5IF.FPLM-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5PP5IF.FPLM-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PP5IF.FPLM-00, subject to availability and destination.
