B&R 5PC510.SX01-00
Intel® Atom™ technology
- MPN
- 5PC510.SX01-00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

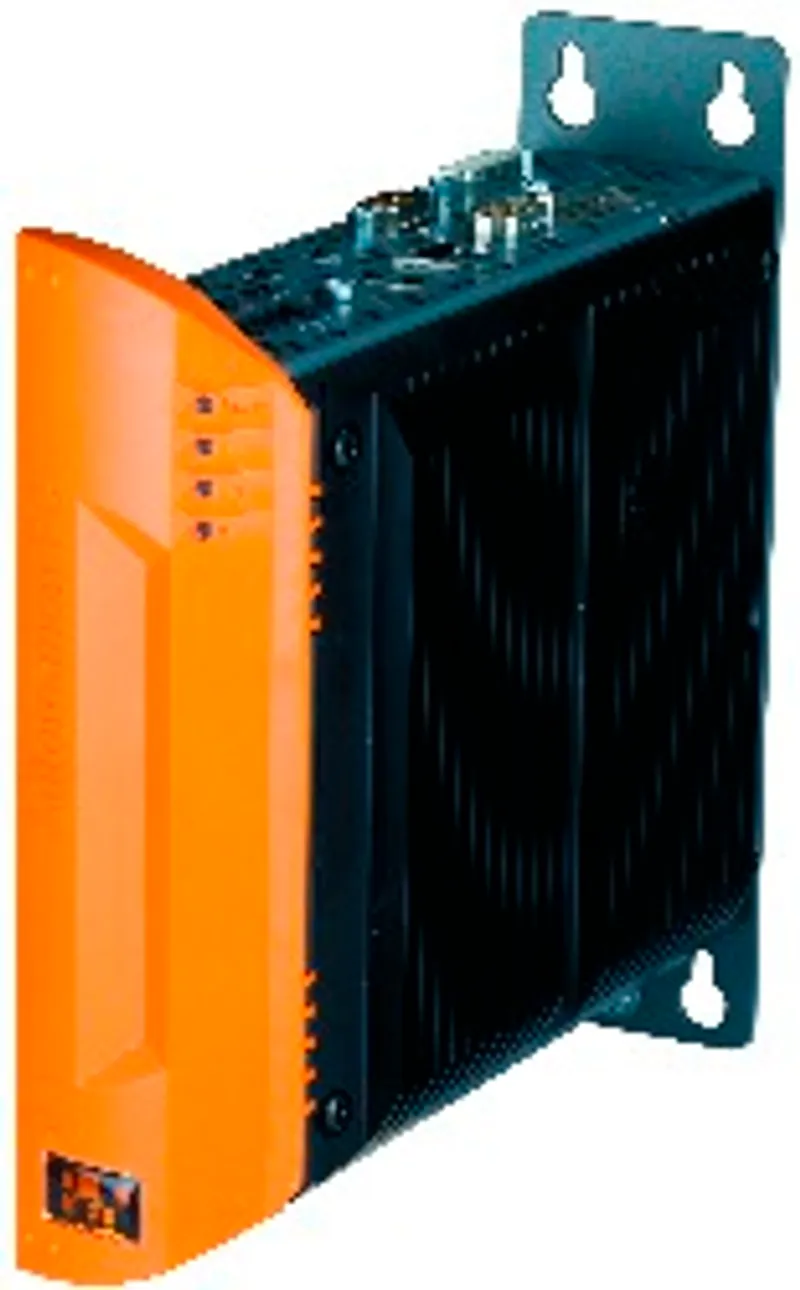

What is the B&R 5PC510.SX01-00?
Intel® Atom™ technology
Fanless operation
Can be upgraded with interface board
Compact dimensions for tight space in the control cabinet
APC510 system unit connections for 1x RS232, 2x USB 2.0, 1x Ethernet 10/100/1000, can be expanded with an interface board, order I/O board (5PP5IO.GMAC-00) and 24 VDC connector for power supply separately (screw clamp terminal block: 0TB103.9, cage clamp terminal block: 0TB103.91).
Specifications
General information
| Battery – Type | Renata 950 mAh |
| Battery – Service life | 4 years (note: At 50°C, 8.5 µA for the components being supplied and self-discharge of 40%. If an interface board with SRAM is installed, the service life is 2½ years.) |
| Battery – Removable | Yes, accessible from the outside |
| Battery – Variant | Lithium ion |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| LEDs | Power, CF, Link, Run |
| B&R ID code | 0xC645 |
| Cooling | Fanless |
| Power button | Yes |
| Reset button | Yes |
| Buzzer | Yes |
Controller
| Power failure logic – Controller | MTCX (note: Maintenance Controller Extended) |
| Power failure logic – Buffer time | 10 ms |
| Graphics – Controller | Intel® Graphics Media Accelerator 500 |
| Bootloader | BIOS |
| Watchdog | MTCX |
Interfaces
| COM1 – Type | RS232, modem supported, not galvanically isolated (note: The COM1 interface is identified in BIOS as the COM A interface.) |
| COM1 – Variant | 9-pin male DSUB connector (note: The COM1 interface is identified in BIOS as the COM A interface.) |
| COM1 – UART | 16550-compatible, 16-byte FIFO buffer (note: The COM1 interface is identified in BIOS as the COM A interface.) |
| COM1 – Max. baud rate | 115 kbit/s (note: The COM1 interface is identified in BIOS as the COM A interface.) |
| CompactFlash slot 1 – Quantity | 1 |
| CompactFlash slot 1 – Type | Type I |
| SD memory card slot – Type | SD card |
| USB – Quantity | 2 |
| USB – Type | USB 2.0 |
| USB – Variant | Type A |
| USB – Transfer rate | Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s) |
| USB – Current-carrying capacity | Max. 1 A per connection |
| Ethernet – Quantity | 1 |
| Ethernet – Controller | Intel 82574 |
| Ethernet – Variant | Shielded RJ45 port |
| Ethernet – Transfer rate | 10/100/1000 Mbit/s |
Slots
| Interface board | Yes |
| I/O board | Yes |
Electrical properties
| Nominal voltage | 24 VDC ±25% |
| Nominal current | 1.5 A (note: The specified value applies to a nominal voltage of 24 VDC.) |
| Inrush current | Typ. 3 A, max. 50 A for <300 µs |
| Power consumption | 35 W (note: The specified value applies to a system unit with a CPU board but without an interface board.) |
| Galvanic isolation | Yes |
Operating conditions
| Degree of protection per EN 60529 | IP20 (only with connected CF and SD card, connected IF board or optional IF cover) |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 90%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Vibration – Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Vibration – Storage | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Vibration – Transport | 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
| Elevation – Operation | Max. 3000 m (component-dependent) (note: The maximum ambient temperature is typically derated 1°C per 1000 meters starting at 500 m above sea level.) |
Mechanical properties
| Housing – Material | Galvanized plate, plastic |
| Housing – Front cover | Dyed orange plastic (similar to Pantone 144CV) |
| Housing – Coating | Light gray (similar to Pantone 427CV), dark gray (similar to Pantone 432CV) |
| Dimensions – Width | 58 mm |
| Dimensions – Height | 210 mm |
| Dimensions – Depth | 202.4 mm |
| Weight | 1600 g |
Accessories
Required accessories (order separately)
| 0TB103.91 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 0TB103.9 | Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply. |
| 5PP5CP.US15-02 | CPU boards — Intel Atom Z530 1.6 GHz; Intel US15W chipset; 1x DDR2 memory slot; Intel GMA 500; Insyde BIOS CPU board Intel Atom Z530 1.6 GHz - Single co… |
| 5PP5CP.US15-01 | CPU boards — Intel Atom Z520 1.33 GHz; Intel US15W chipset; 1x DDR2 memory socket; Intel GMA 500; Insyde BIOS CPU board Intel Atom Z520 1.33 GHz - Singl… |
| 5PP5CP.US15-00 | CPU boards — Intel Atom Z510 1.1 GHz; Intel US15W chipset; 1x DDR2 memory socket; Intel GMA 500; Insyde BIOS CPU board Intel Atom Z510 1.1 GHz - Single… |
| 5MMDDR.2048-01 | Main memory — 2048 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 2048 MB PC2-5300 |
| 5MMDDR.1024-01 | Main memory — 1024 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 1024 MB PC2-5300 |
| 5MMDDR.0512-01 | Main memory — 512 MB memory; DDR2 SDRAM according to PC2-5300; 64-bit data width; 667 MHz SO-DIMM DDR2 RAM 512 MB PC2-5300 |
Optional accessories (13)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
| 5CFCRD.2048-06 | CompactFlash cards — 2 GBSLC flash CompactFlash card |
| 5PP5IO.GMAC-00 | I/O board — 2x USB 2.0; 1x RS232/422/485; 1x HDA sound; 1x Smart Display Link / DVI; Optional SATA interface for HDD (hard disk drive) or SSD (solid-st… |
| 5PP5IF.FXCM-00 | Interface boards — 1x CAN bus master interface; 1x X2X Link master interface; 512 kB SRAM; Compatible with the PP500, APC511 and APC511 The 5PP5IF.FXCM-00 int… |
| 5PP5IF.FX2X-00 | Interface boards — 1x X2X Link master interface; 512 kB SRAM; Compatible with the PP500, APC511 and APC511 The 5PP5IF.FX2X-00 interface board has one X2X Link… |
| 5PP5IF.FPLM-00 | Interface boards — 2x POWERLINK interfaces; 512 kB SRAM; Integrated hub for efficient cabling; Configurable ring redundancy; Poll response chaining; Compatibl… |
| 5PP5IF.FETH-00 | Interface boards — 1 network connection (10/100/1000 Mbit/s); 512 kB SRAM; Compatible with the PP500, APC511 and APC511 The interface board 5PP5IF.FETH-00 has… |
| 5PP5IF.FCAN-00 | Interface boards — 1x CAN bus master interface; 512 kB SRAM; Compatible with the PP500, APC511 and APC511 The 5PP5IF.FCAN-00 interface board has one CAN bus m… |
| 5PP5IF.CHDA-00 | Interface boards — 1x MIC; 1x Line IN; 1x Line OUT; Compatible with the PP500, APC511 and APC511 The 5PP5IF.CHDA-00 interface board has an HDA sound chip with… |
| 5PP5IF.CETH-00 | Interface boards — 1 network connection (10/100/1000 Mbit/s); Compatible with the PP500, APC511 and APC511 The interface board 5PP5IF.CETH-00 has a 10/100/100… |
| 5MMUSB.4096-01 | USB accessories — 4 GB; USB 1.1, USB 2.0; High transfer rate; High data storage; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 4096 MB… |
| 5MMUSB.2048-01 | USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
5PC510.SX01-00: frequently asked questions
When can 5PC510.SX01-00 be shipped?
5PC510.SX01-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5PC510.SX01-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5PC510.SX01-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5PC510.SX01-00, subject to availability and destination.
