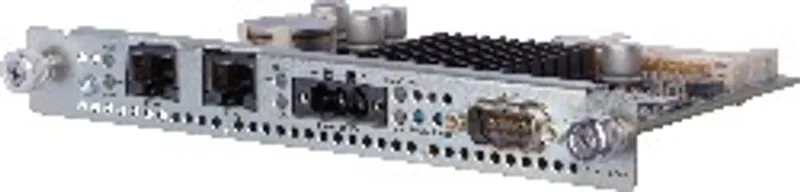

B&R 5PC310.L800-00

MPN: 5PC310.L800-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5PC310.L800-00?

Can be installed in Automation Panel 900 devices

500 MHz Processor

2x Ethernet 10/100 Mbit interfaces

256 MB SRAM onboard

Fan-free operation

Panel PC 300 slot for Automation Panel 900, 256 MB SDRAM, CompactFlash slot (type I), 2x ETH 10/100, RS232, USB 2.0 (via integrated USB 2.0 interfaces of the Automation Panel) battery, 24 VDC (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately).

Specifications

General information

Battery – Type	Renata 950 mAh
Battery – Service life	4 years
Battery – Removable	Yes
Battery – Variant	Lithium ion
Backup capacitor – Buffer time	None
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
LEDs	1x CF (yellow) ; 1x combined Power (red or green) and User (yellow) ; 2x Ethernet 1 - 10/100 (green) and Link Act (yellow) ; 2x Ethernet 2 - 10/100 (green) and Link Act (yellow)
Fans	No
B&R ID code	0x25C7
Power button	Yes
Reset button	Yes

Controller

Processor – Type	AMD Geode LX800
Processor – Clock frequency	500 MHz
Processor – L1 cache	128 kB (64 kB I-cache / 64 kB D-cache)
Processor – L2 cache	128 kB
Processor – External bus	400 MHz
Processor – Expanded command set	MMX technology, 3D Now
Processor – Floating point unit (FPU)	Yes
Real-time clock – Accuracy	At 25°C: Typ. 30 ppm (2.5 seconds) per day (note: At max. specified ambient temperature: Typ. 50 ppm (4 seconds) - worst case 100 ppm (8 seconds).)
Real-time clock – Battery-backed	Yes
Bootloader	BIOS

Display

Supported Automation Panel 900 variants

10.4" VGA TFT color; 12.1" SVGA TFT color; 15" XGA TFT color; 17" SXGA TFT color; 19" SXGA TFT color

Interfaces

COM1 – Type	RS232, modem supported, not galvanically isolated
COM1 – Variant	9-pin male DSUB connector
COM1 – UART	16C550-compatible, 16-byte FIFO buffer
COM1 – Max. baud rate	115 kbit/s
CompactFlash slot 1 – Type	Type I
USB – Quantity	Up to 3 (Automation Panel onboard interfaces)
USB – Type	USB 2.0
USB – Variant	Type A
USB – Current-carrying capacity	Max. 500 mA per connection
Ethernet – Quantity	2
Ethernet – Transfer rate	10/100 Mbit/s
Ethernet – Max. baud rate	100 Mbit/s

Electrical properties

Nominal current	See the technical data of AP900 devices.
Bleeder resistance	1 MΩ
Inrush current	See the technical data of AP900 devices.
Power consumption	Typ. 5.5 W, max. 8 W
Voltage range	18 to 30 VDC (note: Power supply via AP900.)
Galvanic isolation	Yes

Mechanical properties

Locating screws – Quantity	2
Locating screws – Max. tightening torque	0.5 Nm
Weight	Approx. 233 g

Accessories

Required accessories (order separately)

0TB103.91	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
0TB103.9	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Panel PC 300 User's manualPDF · 13 MB · 1.31 (06/15/2011) - EN
