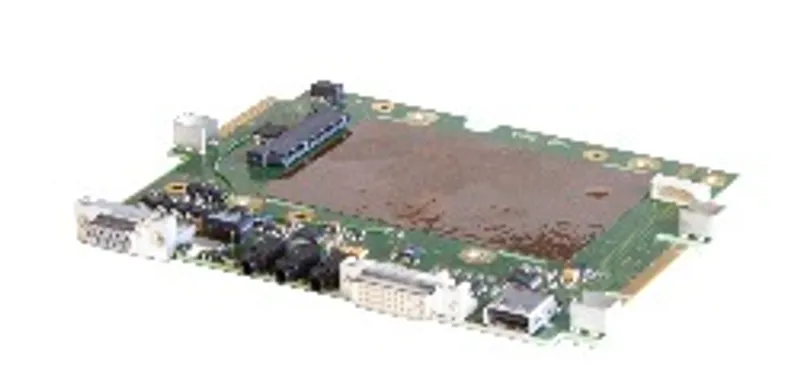

B&R 5PP5IO.GMAC-00

2x USB 2.0; 1x RS232/422/485; 1x HDA sound; 1x Smart Display Link / DVI

MPN: 5PP5IO.GMAC-00

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5PP5IO.GMAC-00?

2x USB 2.0

1x RS232/422/485

1x HDA sound

1x Smart Display Link / DVI

Optional SATA interface for HDD (hard disk drive) or SSD (solid-state drive)

Compatible with the APC510

The APC510 I/O board 5PP5IO.GMAC-00 has 1x RS232/422/485 interface, 2x USB 2.0 connection, 1x HDA sound connection and 1x Smart Display Link/DVI socket. A hard disk or solid-state disk can also be optionally installed. The I/O board can be operated with Automation PC 510 devices.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xCB0B

Interfaces

COM2 – Type	RS232/422/485, galvanically isolated (note: Interface COM2 is identified in BIOS as interface COMD.)
COM2 – Variant	Female DSUB connector, 9-pin (note: Interface COM2 is identified in BIOS as interface COMD.)
COM2 – UART	16550-compatible, 16-byte FIFO buffer (note: Interface COM2 is identified in BIOS as interface COMD.)
COM2 – Max. baud rate	115 kbit/s (note: Interface COM2 is identified in BIOS as interface COMD.)
USB – Quantity	2
USB – Type	USB 2.0
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
USB – Current-carrying capacity	Max. 1 A
Panel/Monitor interface – Variant	Female DVI-I connector
Panel/Monitor interface – Type	SDL/DVI
Audio – Type	HDA sound
Audio – Inputs	Microphone, Line In
Audio – Outputs	Line Out
Optional SATA	PATA to SATA bridge (SATA I)

Electrical properties

Power consumption

12 W

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 60°C
Temperature – Transport	-20 to 60°C
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Accessories

Optional accessories (4)

5MMSSD.0256-00	Drives — Replacement for 5AC801.SSDI-05 or 5AC901.CSSD-05 SSD drives; Accessory for the APC510 (optional SSD for I/O board) This 256 GB solid-state…
5MMSSD.0128-01	Drives — Replacement for 5AC801.SSDI-04 or 5AC901.CSSD-04 SSD drives; Accessory for the APC510 (optional SSD for I/O board) This 128 GB solid-state…
5MMSSD.0060-01	Drives — Replacement for 5AC801.SSDI-03 or 5AC901.CSSD-03 SSD drives; Accessory for the APC510 (optional SSD for I/O board) This 60 GB solid-state d…
5MMHDD.0500-00	Drives — 500 GB hard disk; Replacement hard disk for a 5AC801.HDDI-04 / 5AC901.CHDD-01 hard disk or a 5ACPCI.RAIC-06 RAID controller; Accessory for…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Automation PC 510 User's manualPDF · 11 MB · 1.20 (04/30/2015) - EN
