B&R 4PP420.0571-B5
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Power Panel 400 embedded |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2000 kg |
Shipping & availability
When can 4PP420.0571-B5 be shipped?
4PP420.0571-B5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4PP420.0571-B5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4PP420.0571-B5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4PP420.0571-B5, subject to availability and destination.

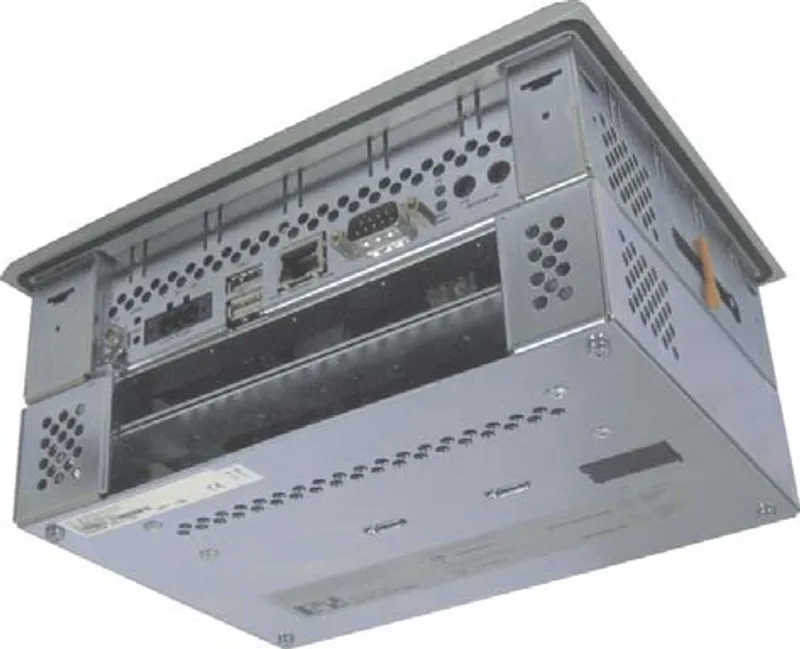

Power Panel PP420, 5.7" QVGA color TFT display with touch screen (resistive), 2 aPCI slots, 128 MB SDRAM, 512 kB SRAM CompactFlash slot (type I), ETH 10/100, RS232, 2x USB, IP65 protection (front), 24 VDC (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately).
Specifications
Specifications
| LEDs | Power/User, CF |
| B&R ID code | 0xA15A |
| Type | USB 1.1, USB 2.0 |
| Service life | - |
| Removable | Yes, accessible from the outside |
| Buffer time | 10 ms |
| Variant | Type A |
| Power button | Yes |
| Reset button | Yes |
| CE | Yes |
| UKCA | Yes |
| UL | cULus E115267 Industrial control equipment |
| KC | Yes |
| Bootloader | Automation Runtime |
| Clock frequency | 500 MHz |
| L1 cache | 128 kB (64 kB I-cache / 64 kB D-cache) |
| L2 cache | 128 kB |
| Expanded command set | MMX technology, 3D Now |
| Floating point unit (FPU) | Yes |
| Flash | 2 MB (for firmware) |
| Cooling | Passive via heat sink |
| Mode/Node switches | 2, 16 positions each |
| Watchdog | MTCX |
| Accuracy | At 25°C: Typ. 30 ppm (2.5 seconds) per day |
| Battery-backed | Yes |
| Controller | Intel 82551ER |
| Memory | 8 MB shared memory (reserved by main memory) |
| Size | 512 kB |
| Diagonal | 5.7" (144 mm) |
| Colors | 262,144 |
| Resolution | QVGA, 320 x 240 pixels |
| Contrast | 350:1 |
| Horizontal | Direction R / Direction L = 65° |
| Vertical | Direction U = 65° / Direction D = 40° |
| Brightness | 500 cd/m² |
| Half-brightness time | 50,000 h |
| Transmittance | Up to 80% ±5% |
| Anti-glare coating | - |
| Technology | Analog, resistive |
| UART | 16C550-compatible, 16-byte FIFO buffer |
| Max. baud rate | 100 Mbit/s |
| Quantity | 1 |
| Transfer rate | 10/100 Mbit/s |
| Current-carrying capacity | Max. 500 mA per connection |
| Function keys | No |
| Soft keys | No |
| System keys | No |
| LED luminous intensity | - |
| aPCI slots | 2 |
| Nominal voltage | 18 to 30 VDC |
| Nominal current | 0.5 A |
| Bleeder resistance | 0 Ω |
| Inrush current | Max. 1.2 A |
| Power consumption | Typ. 12 W |
| Galvanic isolation | Yes |
| Degree of protection per EN 60529 | Back: IP20 (only with connected CF card, connected aPCI module or optional aPCI cover) Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water |
| Operation | Max. 3000 m |
| Storage | 30 g, 15 ms |
| Transport | 30 g, 15 ms |
| Operation (continuous) | 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g |
| Operation (occasional) | 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g |
| Material | Polyester |
| Frame | Aluminum, naturally anodized |
| Design | Gray |
| Light background color | Similar to Pantone 427CV |
| Dark border color around display | Similar to Pantone 432CV |
| Gasket | Flat gasket around display front |
| Width | 212 mm |
| Height | 156 mm |
| Depth | 98 mm |
| Weight | 2000 g |
