Home / B&R / B&R 3IF772.9

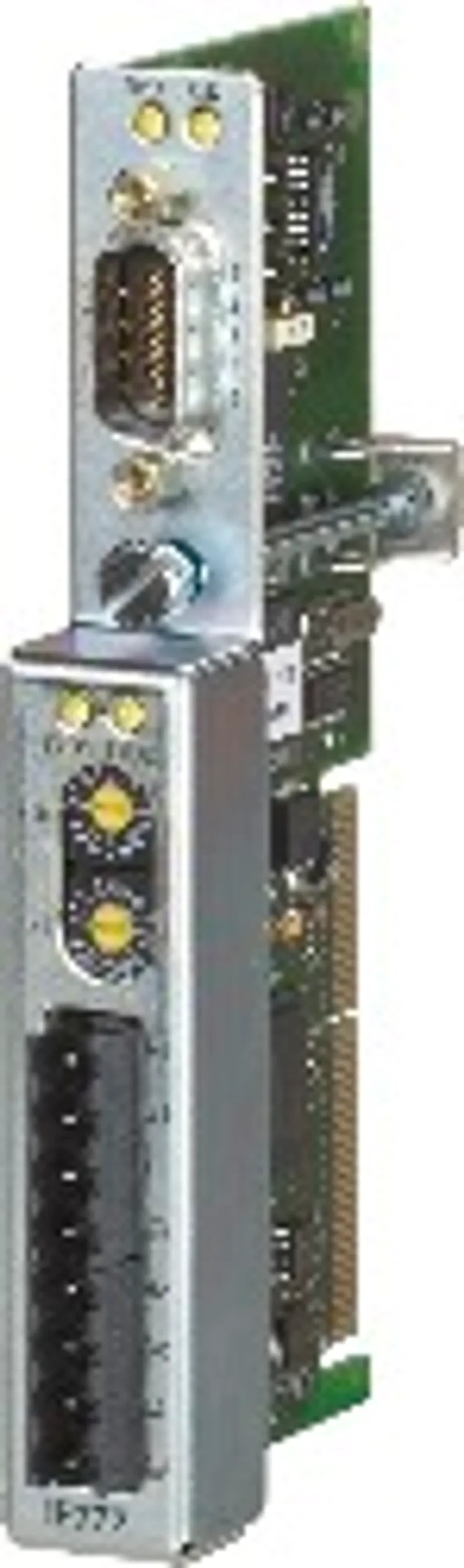

B&R 3IF772.9

Communication module, 1x RS232, 2x CAN bus

MPN: 3IF772.9

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3IF772.9?

Dual CAN bus connection

RS232 can be configured as an online interface

aPCI interface module, 1 RS232 interface, 2 CAN bus interfaces, electrically isolated, network-capable, max. 500 kbit/s, object buffer in transmit and receive direction, order 2x terminal blocks 0TB704.9 separately!

Specifications

Short description

Communication module

1x RS232, 2x CAN bus

General information

Diagnostics – Data transfer	Yes, using LED status indicators
Power consumption – 3.3 VDC	0.2 W
Power consumption – 5 VDC	1.8 W
Power consumption – Total	2.0 W
Electrical isolation – IFx - IFx	Yes
Electrical isolation – PLC - IF1	No
Electrical isolation – PLC - IF2	Yes
Electrical isolation – PLC - IF3	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD
Certifications – KC	Yes
Status indicators	2 LEDs for transmitting/receiving data for IF1 ; 1 LED each for transmitting data for IF2 and IF3

Interfaces

Interface IF1 – Signal	RS232
Interface IF1 – Variant	9-pin male DSUB connector
Interface IF1 – Max. distance	900 m
Interface IF1 – Transfer rate	Max. 115.2 kbit/s
Interface IF2 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF2 – Variant	4-pin male multipoint connector
Interface IF2 – Max. distance	1000 m
Interface IF2 – Transfer rate	Max. 500 kbit/s
Interface IF3 – Signal	CAN bus (note: This CAN bus interface can be configured as a CANopen master in Automation Studio 3.0 and later.)
Interface IF3 – Variant	4-pin male multipoint connector
Interface IF3 – Max. distance	1000 m
Interface IF3 – Transfer rate	Max. 500 kbit/s

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing

Mechanical properties

Note	Order 2x 0TB704.9 terminal blocks separately
Slot	Slot, e.g. in the CP360

Accessories

Required accessories (order separately)

0TB704.9

Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.

Optional accessories (1)

0AC913.93

Infrastructure components — Bus adapter, CAN bus, 2 CAN bus interfaces, including 03 m attachment cable (TB704)
