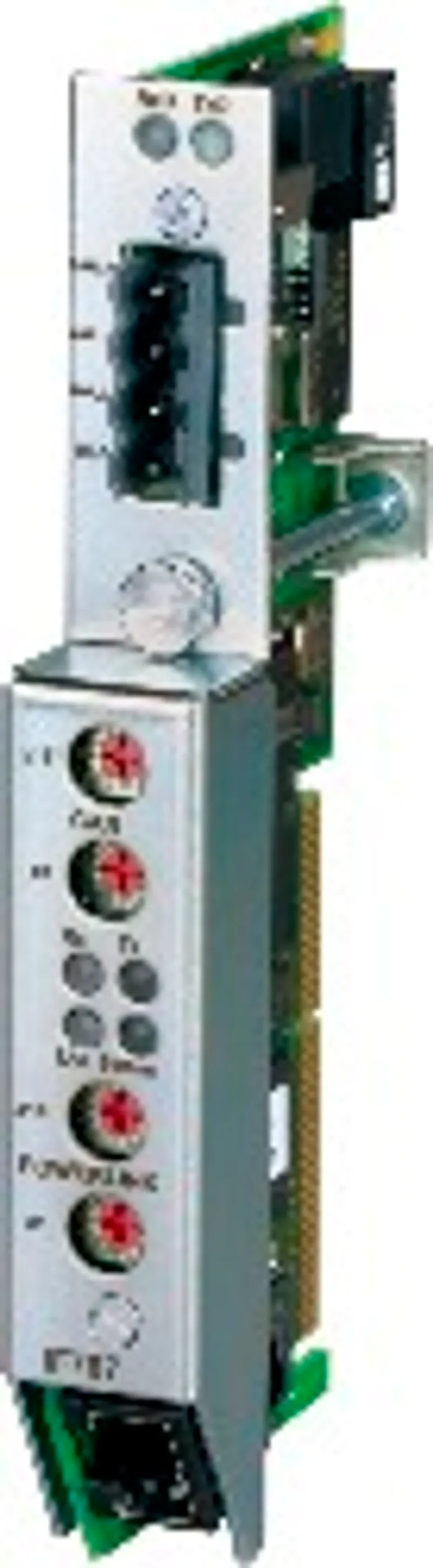

B&R 3IF787.9
Communication module, 1x CAN bus
- MPN
- 3IF787.9
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3IF787.9?
aPCI interface module, 1 POWERLINK interface, managing or controlled node, 1 CAN bus interface, max. 500 kbps, object buffer in the transmit and receive directions, network-capable, electrically isolated, order 1x terminal block TB704 separately!
Specifications
Short description
| Communication module | 1x CAN bus, 1x Ethernet POWERLINK managing or controlled node |
General information
| Diagnostics – Bus function (IF2) | Yes, using LED status indicator and software |
| Diagnostics – Data transfer (IF1) | Yes, using LED status indicator and software |
| Diagnostics – Station status (IF2) | Yes, using LED status indicator and software |
| Power consumption – 3.3 VDC | 2.5 W |
| Power consumption – 5 VDC | 0.5 W |
| Power consumption – Total | 3.0 W |
| Electrical isolation – IF1 - IF2 | Yes |
| Electrical isolation – PLC - IFx | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – HazLoc | cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD |
| Certifications – KC | Yes |
| Status indicators | Transmitting/Receiving data for IF1 ; Status of the POWERLINK station, network activity, link/collision for IF2 |
Interfaces
| Interface IF1 – Type | CAN bus |
| Interface IF1 – Variant | 4-pin male multipoint connector |
| Interface IF1 – Max. transfer rate | 500 kbit/s |
| Interface IF2 – Fieldbus | Ethernet POWERLINK |
| Interface IF2 – Type | 100BASE-T (ANSI/IEEE 802.3) |
| Interface IF2 – Variant | Shielded RJ45 port |
| Interface IF2 – Line length | Max. 100 m between two stations (segment length) |
| Interface IF2 – Transfer rate | 100 Mbit/s |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95% |
Mechanical properties
| Note | Order 1x terminal block TB704 separately. |
| Slot | Slot, e.g. in the CP360 |
Accessories
Required accessories (order separately)
| 0TB704.91 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
| 0TB704.9 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
Optional accessories (1)
| 0AC913.93 | Infrastructure components — Bus adapter, CAN bus, 2 CAN bus interfaces, including 03 m attachment cable (TB704) |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3IF787.9: frequently asked questions
When can 3IF787.9 be shipped?
3IF787.9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3IF787.9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3IF787.9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3IF787.9, subject to availability and destination.
