Home / PLC systems / Power Panel / Power Panel 400 embedded

Power Panel 400 embedded Parts

B&R

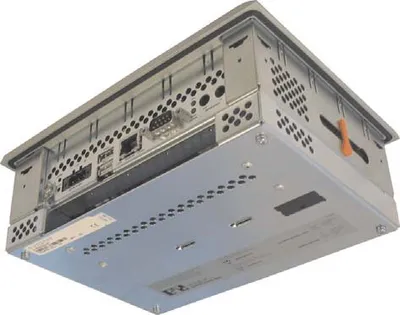

4PP420.0571-45

Power Panel PP420, 5.7&quot

B&R

4PP420.0571-75

Power Panel PP420, 5.7&quot

B&R

4PP420.0571-85

Power Panel PP420, 5.7&quot

B&R

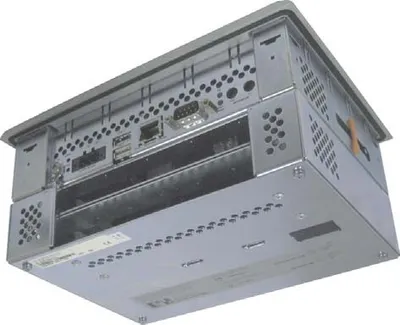

4PP420.0571-B5

Power Panel PP420, 5.7&quot

B&R

4PP420.0573-75

Power Panel PP420, 5.7&quot

B&R

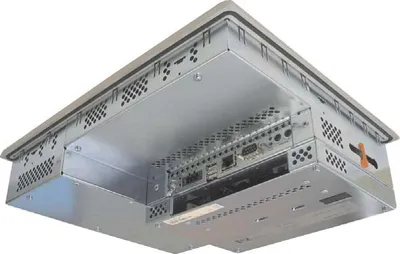

4PP420.1043-75

Power Panel PP420, 10.4&quot

B&R

4PP420.1043-B5

Power Panel PP420, 10.4&quot

B&R

4PP420.1505-75

Power Panel PP420, 15&quot

B&R

4PP420.1505-B5

Power Panel PP420, 15&quot

B&R

4PP451.0571-45

Power Panel PP451, 5.7" QVGA monochrome LCD display

B&R

4PP451.0571-75

Power Panel PP451, 5.7" QVGA TFT color display

B&R

4PP451.0571-85

Power Panel PP451, 5.7" QVGA monochrome LCD display

B&R

4PP451.0571-B5

Power Panel PP451, 5.7" QVGA TFT color display

B&R

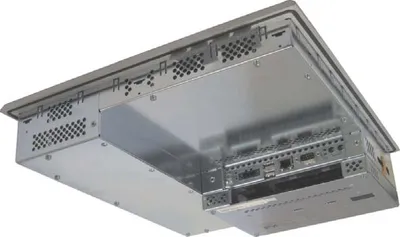

4PP451.1043-75

Power Panel PP451, 10.4&quot

B&R

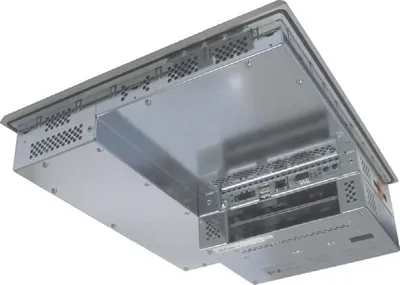

4PP451.1043-B5

Power Panel PP451, 10.4&quot

B&R

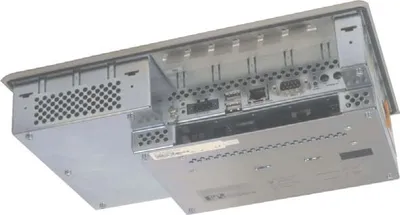

4PP452.0571-45

Power Panel PP452, 5.7" QVGA monochrome LCD display

B&R

4PP452.0571-75

Power Panel PP452, 5.7" QVGA TFT color display

B&R

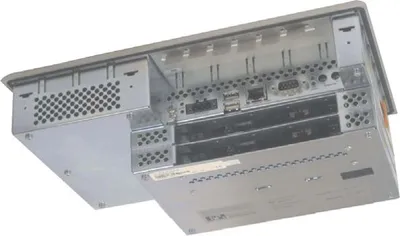

4PP452.0571-B5

Power Panel PP452, 5.7" QVGA TFT color display

B&R

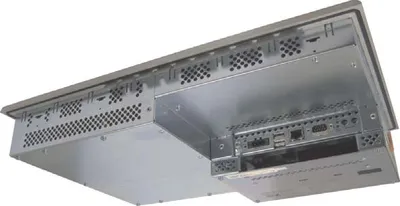

4PP452.1043-75

Power Panel PP452, 10.4&quot

B&R

4PP480.1043-75

Power Panel PP480, 10.4&quot

B&R

4PP481.1043-75

Power Panel PP481, 10.4&quot

B&R

4PP481.1043-B5

Power Panel PP481, 10.4&quot

B&R

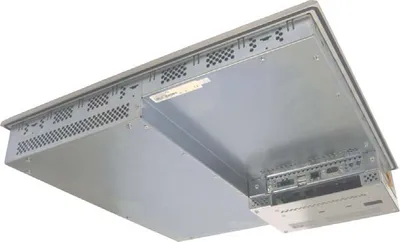

4PP481.1505-75

Power Panel PP481, 15&quot

B&R

4PP482.1043-75

Power Panel PP482, 10.4&quot

Compare Power Panel 400 embedded

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Viewing angles – Vertical	Contrast	Function keys	Nominal current	Dimensions – Height
4PP420.0571-45	Direction U / Direction D = 80°	25:1	No	0.5 A	156 mm
4PP420.0571-75	Direction U = 65° / Direction D = 40°	350:1	No	0.5 A	156 mm
4PP420.0571-85	Direction U / Direction D = 80°	25:1	No	0.5 A	156 mm
4PP420.0571-B5	Direction U = 65° / Direction D = 40°	350:1	No	0.5 A	156 mm
4PP420.0573-75	Direction U = 80° / Direction D = 70°	400:1	No	0.5 A	156 mm
4PP420.1043-75	Direction U = 80° / Direction D = 80°	900:1	No	0.71 A	260 mm
4PP420.1043-B5	Direction U = 80° / Direction D = 80°	900:1	No	0.71 A	260 mm
4PP420.1505-75	Direction U / Direction D = 85°	1000:1	No	1.25 A	330 mm
4PP420.1505-B5	Direction U / Direction D = 85°	1000:1	No	1.25 A	330 mm
4PP451.0571-45	Direction U / Direction D = 80°	25:1	16 with LED (yellow)	0.63 A	245 mm
4PP451.0571-75	Direction U = 65° / Direction D = 40°	350:1	16 with LED (yellow)	0.63 A	245 mm
4PP451.0571-85	Direction U / Direction D = 80°	25:1	16 with LED (yellow)	0.63 A	245 mm
4PP451.0571-B5	Direction U = 65° / Direction D = 40°	350:1	16 with LED (yellow)	0.63 A	245 mm
4PP451.1043-75	Direction U = 80° / Direction D = 80°	900:1	28 with LED (yellow)	0.63 A	358 mm
4PP451.1043-B5	Direction U = 80° / Direction D = 80°	900:1	28 with LED (yellow)	0.63 A	358 mm
4PP452.0571-45	Direction U / Direction D = 80°	25:1	20 with LED (yellow)	0.63 A	187 mm
4PP452.0571-75	Direction U = 65° / Direction D = 40°	350:1	20 with LED (yellow)	0.63 A	187 mm
4PP452.0571-B5	Direction U = 65° / Direction D = 40°	350:1	20 with LED (yellow)	0.63 A	187 mm
4PP452.1043-75	Direction U = 80° / Direction D = 80°	700:1	44 with LED (yellow)	1.38 A	288 mm
4PP480.1043-75	Direction U = 45° / Direction D = 35°	600:1	12 with LED (yellow)	0.84 A	260 mm
4PP481.1043-75	Direction U = 80° / Direction D = 80°	900:1	28 with LED (yellow)	0.84 A	358 mm
4PP481.1043-B5	Direction U = 80° / Direction D = 80°	900:1	28 with LED (yellow)	0.84 A	358 mm
4PP481.1505-75	Direction U / Direction D = 85°	1000:1	20 with LED (yellow)	1.38 A	430 mm
4PP482.1043-75	Direction U = 80° / Direction D = 80°	900:1	44 with LED (yellow)	1.38 A	288 mm

Common to all listed parts

Battery – Type	Renata 950 mAh
Battery – Service life	3 years
Battery – Removable	Yes, accessible from the outside
Battery – Variant	Lithium ion
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
LEDs	Power/User, CF
