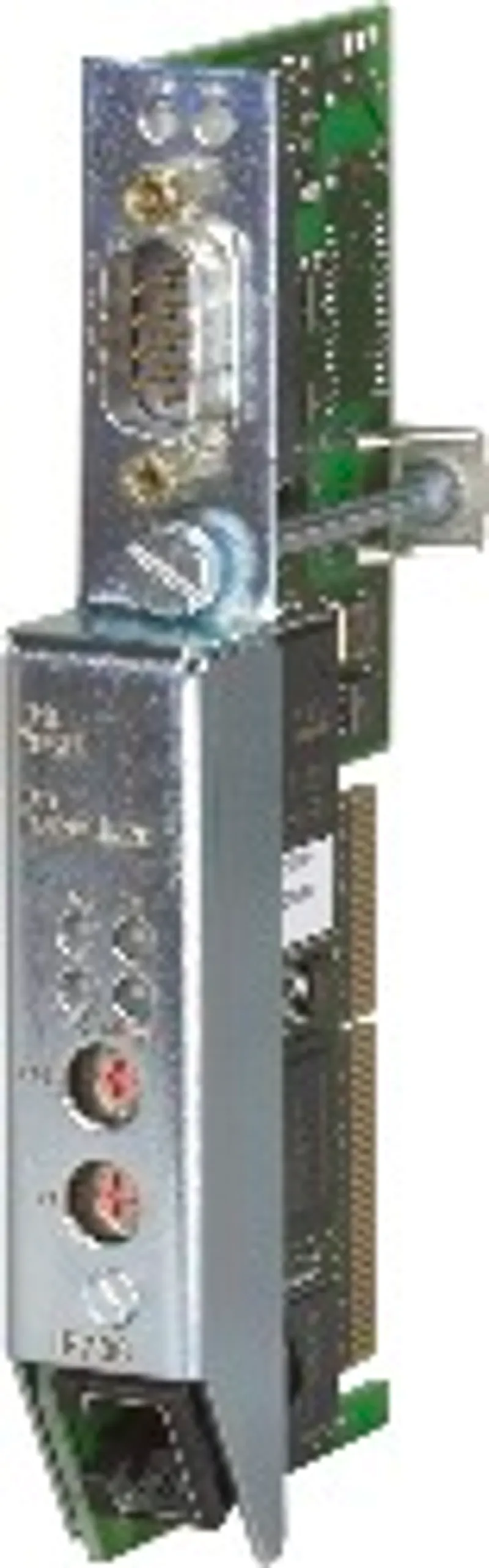

B&R 3IF786.9

Communication module, 1x RS232

MPN: 3IF786.9

€302.10excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3IF786.9?

aPCI interface module, 1 POWERLINK interface module, managing or controlled node, 1 RS232 interface

Specifications

Short description

Communication module

1x RS232, 1x Ethernet POWERLINK managing or controlled node

General information

Diagnostics – Bus function (IF2)	Yes, using LED status indicator and software
Diagnostics – Data transfer (IF1)	Yes, using LED status indicators
Diagnostics – Station status (IF2)	Yes, using LED status indicator and software
Power consumption – 3.3 VDC	2.0 W
Power consumption – 5 VDC	0.5 W
Power consumption – Total	2.5 W
Electrical isolation – IF1 - IF2	Yes
Electrical isolation – PLC - IF1	No
Electrical isolation – PLC - IF2	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
Status indicators	Transmitting/Receiving data for IF1 ; Status of the POWERLINK station, network activity, link/collision for IF2

Interfaces

Interface IF1 – Type	RS232
Interface IF1 – Execution	9-pin male DSUB connector
Interface IF1 – Max. transfer rate	115.2 kbit/s
Interface IF2 – Fieldbus	Ethernet POWERLINK
Interface IF2 – Type	100BASE-T (ANSI/IEEE 802.3)
Interface IF2 – Execution	Shielded RJ45 port
Interface IF2 – Line length	Max. 100 m between two stations (segment length)
Interface IF2 – Transfer rate	100 Mbit/s

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Operation	0 to 60°C
Temperature – Storage	-25 to 70°C
Relative humidity – Operation	5 to 95%

Mechanical properties

Slot	Slot, e.g. in the CP360

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 3IF786.9PDF · 1 MB · 1.1 (04/20/2005) - EN
