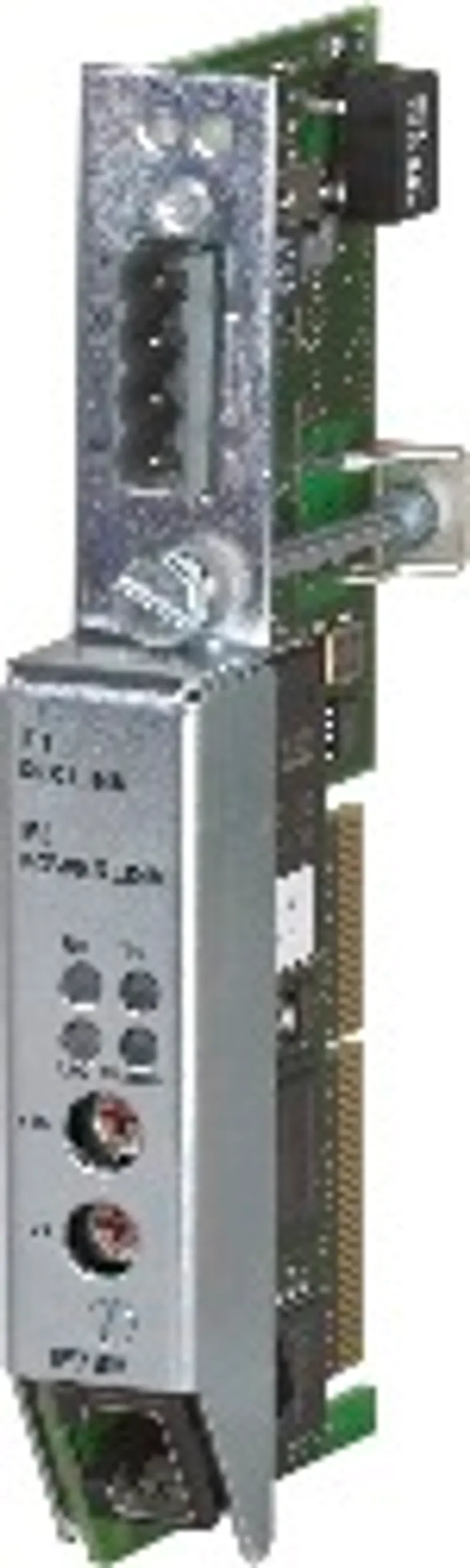

B&R 3IF789.9

Communication module, 1x X2X Link master

MPN: 3IF789.9

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 3IF789.9?

aPCI interface module, 1 POWERLINK interface, managing or controlled node, 1 X2X Link master interface, electrically isolated, order 1x terminal block TB704 separately!

Specifications

Short description

Communication module

1x X2X Link master, 1x Ethernet POWERLINK managing or controlled node

General information

LEDs – Quantity	6
Diagnostics – Bus function (IF2)	Yes, using LED status indicator and software
Diagnostics – Data transfer (IF1)	Yes, using LED status indicator and software
Diagnostics – Station status (IF2)	Yes, using LED status indicator and software
Power consumption – 3.3 VDC	2.3 W
Power consumption – 5 VDC	0.5 W
Power consumption – Total	2.8 W
Electrical isolation – IF1 - IF2	Yes
Electrical isolation – PLC - IFx	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
LEDs	X2X Link Rx/Tx, POWERLINK
B&R ID code	0x13E2
Status indicators	Transmitting/Receiving data for IF1 ; Status of POWERLINK station, network activity, link/collision for IF2

Interfaces

Interface IF1 – Type	X2X Link master
Interface IF1 – Execution	4-pin male multipoint connector
Interface IF1 – Number of stations	Max. 253
Interface IF1 – Internal bus power supply	No
Interface IF1 – Network topology	Line
Interface IF1 – Distance between 2 stations	Max. 100 m
Interface IF1 – Bus terminating resistor	Internal
Interface IF2 – Fieldbus	Ethernet POWERLINK
Interface IF2 – Type	100BASE-T (ANSI/IEEE 802.3)
Interface IF2 – Execution	Shielded RJ45 port
Interface IF2 – Line length	Max. 100 m between two stations (segment length)
Interface IF2 – Transfer rate	100 Mbit/s
Interface IF2 – In/Out buffer	20 kB (note: Firmware version V50 and later. Before that, 11 kB.)

Operating conditions

Degree of protection per EN 60529

IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 60°C
Temperature – Vertical mounting orientation	0 to 60°C
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB704 separately.
Slot	Slot, e.g. in the CP360

Accessories

Required accessories (order separately)

0TB704.91	Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses.
