B&R 4PP420.0571-85

Power Panel PP420, 5.7&quot

MPN: 4PP420.0571-85
Category: Power Panel 400 embedded

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 4PP420.0571-85?

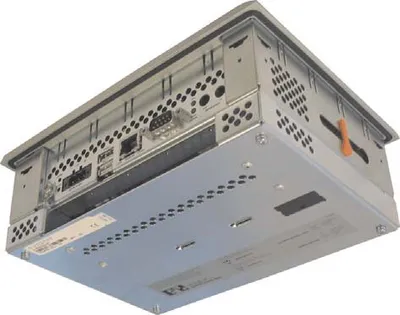

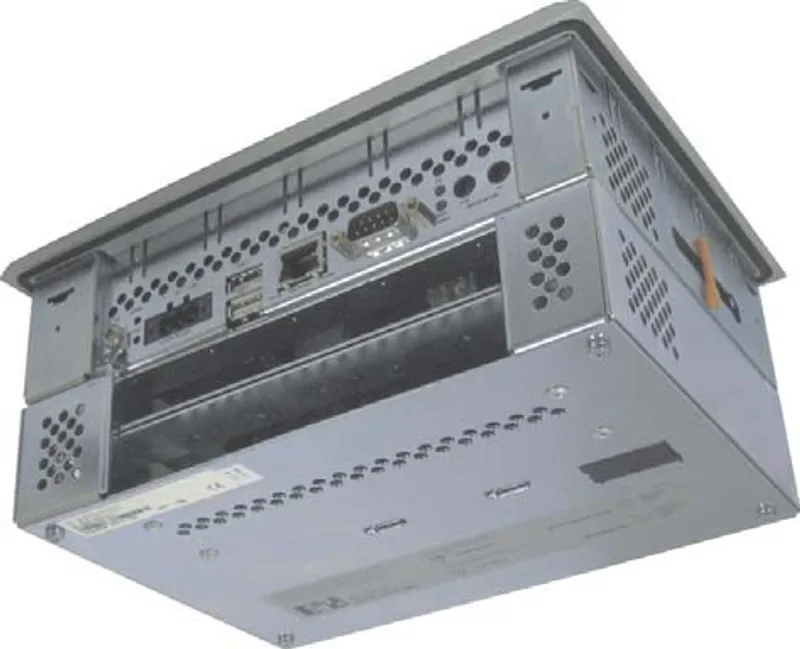

Power Panel PP420, 5.7" QVGA monochrome LCD display with touch screen (resistive), 2 aPCI slots, 128 MB SDRAM, 512 kB SRAM CompactFlash slot (type I), ETH 10/100, RS232, 2x USB, IP65 protection (front), 24 VDC (order screw clamp terminal block 0TB103.9 or cage clamp terminal block 0TB103.91 separately).

Specifications

General information

Battery – Buffer time	10 min
Battery – Type	Renata 950 mAh
Battery – Service life	3 years
Battery – Removable	Yes, accessible from the outside
Battery – Variant	Lithium ion
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – KC	Yes
LEDs	Power/User, CF
B&R ID code	0xA52E
Power button	Yes
Reset button	Yes

Controller

Processor – Type	Geode LX800
Processor – Clock frequency	500 MHz
Processor – L1 cache	128 kB (64 kB I-cache / 64 kB D-cache)
Processor – L2 cache	128 kB
Processor – Expanded command set	MMX technology, 3D Now
Processor – Floating point unit (FPU)	Yes
Real-time clock – Accuracy	At 25°C: Typ. 30 ppm (2.5 seconds) per day
Real-time clock – Battery-backed	Yes
Power failure logic – Controller	MTCX
Power failure logic – Buffer time	10 ms
Graphics – Controller	Geode LX800
Graphics – Memory	8 MB shared memory (reserved by main memory)
SRAM – Size	512 kB
SRAM – Battery-backed	Yes
Bootloader	Automation Runtime
Flash	2 MB (for firmware)
Cooling	Passive via heat sink
Mode/Node switches	2, 16 positions each
Watchdog	MTCX

Display

Viewing angles – Horizontal	Direction R / Direction L = 80°
Viewing angles – Vertical	Direction U / Direction D = 80°
Backlight – Type	LED
Backlight – Brightness	150 cd/m²
Backlight – Half-brightness time	40,000 h
Filter glass – Transmittance	-
Filter glass – Anti-glare coating	-
Touch screen – Type	AMT
Touch screen – Technology	Analog, resistive
Touch screen – Controller	Elo, serial, 12-bit
Touch screen – Transmittance	Up to 80% ±5%
Type	Monochrome LCD
Diagonal	5.7" (144 mm)
Colors	8 shades of gray
Resolution	QVGA, 320 x 240 pixels
Contrast	25:1

Interfaces

COM1 – Type	RS232, modem supported, not galvanically isolated
COM1 – Variant	9-pin male DSUB connector
COM1 – UART	16C550-compatible, 16-byte FIFO buffer
COM1 – Max. baud rate	115 kbit/s
CompactFlash slot 1 – Type	Type I
USB – Quantity	2
USB – Type	USB 1.1, USB 2.0 (note: The actual value depends on the operating system or driver used.)
USB – Variant	Type A
USB – Transfer rate	Low speed (1.5 Mbit/s), full speed (12 Mbit/s) to high speed (480 Mbit/s)
USB – Current-carrying capacity	Max. 500 mA per connection
Ethernet – Quantity	1
Ethernet – Controller	Intel 82551ER
Ethernet – Transfer rate	10/100 Mbit/s
Ethernet – Max. baud rate	100 Mbit/s

Keys

Function keys	No
Soft keys	No
System keys	No
Service life	-
LED luminous intensity	-

Slots

aPCI slots

2 (note: For information regarding available aPCI interface modules, see the B&R System 2005 user's manual.)

Electrical properties

Nominal voltage	18 to 30 VDC
Nominal current	0.5 A
Bleeder resistance	0 Ω
Inrush current	Max. 1.2 A
Power consumption	Typ. 12 W
Galvanic isolation	Yes

Operating conditions

Degree of protection per EN 60529

Back: IP20 (only with connected CF card, connected aPCI module or optional aPCI cover); Front: IP65 / NEMA 250 type 4X indoor, protected against dust and hose-directed water

Ambient conditions

Temperature – Operation	0 to 50°C
Temperature – Storage	-20 to 70°C
Temperature – Transport	-20 to 70°C
Vibration – Operation (continuous)	2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Vibration – Operation (occasional)	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Vibration – Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Vibration – Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock – Operation	15 g, 11 ms
Shock – Storage	30 g, 15 ms
Shock – Transport	30 g, 15 ms
Elevation – Operation	Max. 3000 m

Mechanical properties

Housing – Material	Metal
Front – Material	Polyester (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Light background color	Similar to Pantone 427CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Dark border color around display	Similar to Pantone 432CV (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Frame	Aluminum, naturally anodized (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Design	Gray (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Front – Gasket	Flat gasket around display front (note: Visual deviations in color and surface quality are possible due to process or batch conditions.)
Dimensions – Width	212 mm
Dimensions – Height	156 mm
Dimensions – Depth	76 mm
Weight	1950 g

Accessories

Required accessories (order separately)

0TB103.91	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
0TB103.9	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.

Optional accessories (11)

4A0006.00-000	Batteries — Lithium battery, 3 V / 950 mAh, button cell
0AC201.91	Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell
5MMUSB.2048-01	USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M…
4AC200.1000-00	Undefined — Cover for aPCI slot
3IF789.9-1	Undefined — POWERLINK; Direct connection for high-speed I/O aPCI interface module, 1 POWERLINK interface, managing or controlled node, 1 X2X Link maste…
3IF789.9	Undefined — aPCI interface module, 1 POWERLINK interface, managing or controlled node, 1 X2X Link master interface, electrically isolated, order 1x ter…
3IF787.9-1	Undefined — Interface module with CAN bus and POWERLINK aPCI interface module, 1 POWERLINK interface, managing or controlled node 1 CAN bus interface,…
3IF787.9	Undefined — aPCI interface module, 1 POWERLINK interface, managing or controlled node, 1 CAN bus interface, max. 500 kbps, object buffer in the transmi…
3IF786.9-1	Undefined — Multi-interface module; POWERLINK for real-time Ethernet communication; RS232 can be configured as an online interface aPCI interface modul…
3IF786.9	Undefined — aPCI interface module, 1 POWERLINK interface module, managing or controlled node, 1 RS232 interface
3IF772.9	aPCI communication modules — Dual CAN bus connection; RS232 can be configured as an online interface aPCI interface module, 1 RS232 interface, 2 CAN bus interfaces, ele…
