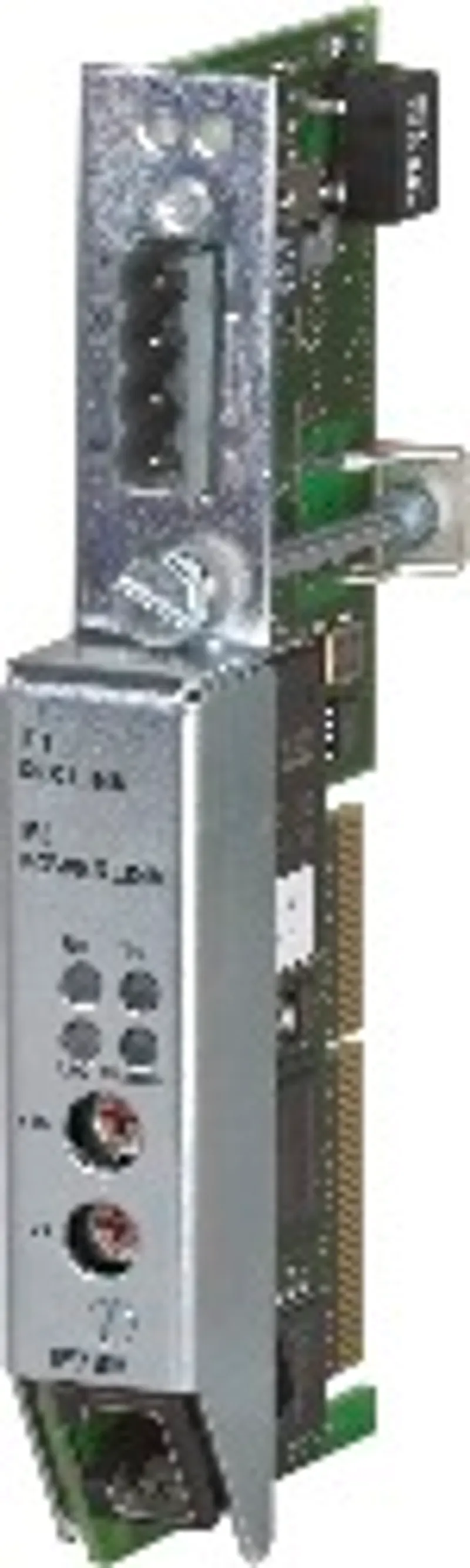

B&R 3IF789.9-1
Communication module, 1x X2X Link master
- MPN
- 3IF789.9-1
€280.90excl. VAT & shipping
In stock — 2 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3IF789.9-1?
POWERLINK
Direct connection for high-speed I/O
aPCI interface module, 1 POWERLINK interface, managing or controlled node, 1 X2X Link master interface, electrically isolated, order 1x terminal block TB704 separately!
Specifications
Short description
| Communication module | 1x X2X Link master, 1x POWERLINK (V1/V2) managing or controlled node |
General information
| Diagnostics – Bus function (IF2) | Yes, using LED status indicator and software |
| Diagnostics – Data transfer (IF1) | Yes, using LED status indicator and software |
| Diagnostics – Station status (IF2) | Yes, using LED status indicator and software |
| Power consumption – 3.3 VDC | 2.3 W |
| Power consumption – 5 VDC | 0.5 W |
| Power consumption – Total | 2.8 W |
| Electrical isolation – IF1 - IF2 | Yes |
| Electrical isolation – PLC - IFx | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – KC | Yes |
| Status indicators | Transmitting/Receiving data for IF1 ; Status of POWERLINK station, network activity, link/collision for IF2 |
Interfaces
| Interface IF1 – Fieldbus | X2X Link master |
| Interface IF1 – Execution | 4-pin male multipoint connector |
| Interface IF1 – Number of stations | Max. 253 |
| Interface IF1 – Internal bus power supply | No |
| Interface IF1 – Network topology | Line |
| Interface IF1 – Distance between 2 stations | Max. 100 m |
| Interface IF1 – Bus terminating resistor | Internal |
| Interface IF2 – Physical layer | 100BASE-TX |
| Interface IF2 – Half-duplex | Yes |
| Interface IF2 – Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
| Interface IF2 – Autonegotiation | Yes |
| Interface IF2 – Auto-MDI/MDIX | Yes |
| Interface IF2 – Fieldbus | POWERLINK (V1/V2) managing or controlled node |
| Interface IF2 – Type | Type 2General information, Hardware - IF/LS" in the POWERLINK help documentation."> (note: See) |
| Interface IF2 – Execution | 1x shielded RJ45 port |
| Interface IF2 – Line length | Max. 100 m between two stations (segment length) |
| Interface IF2 – Transfer rate | 100 Mbit/s |
| Interface IF2 – In/Out buffer | 20 kB (note: Firmware version V50 and later. Before that, 11 kB.) |
Operating conditions
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 60°C |
| Temperature – Storage | -25 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block TB704 separately. |
| Slot | Slot, e.g. in the CP360 |
Accessories
Required accessories (order separately)
| 0TB704.91 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
