Danfoss 22611-16-14Z

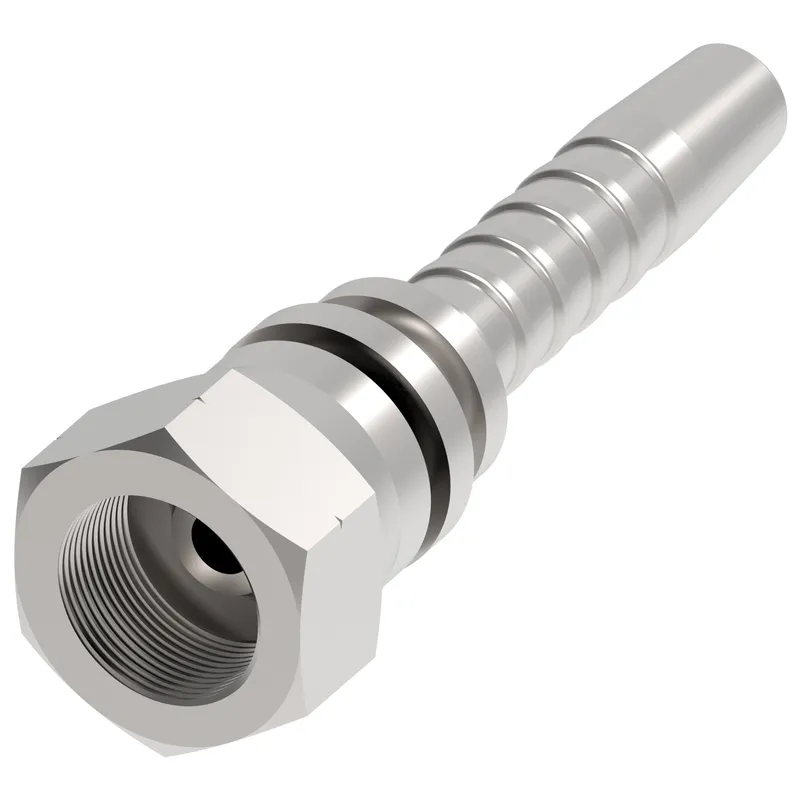

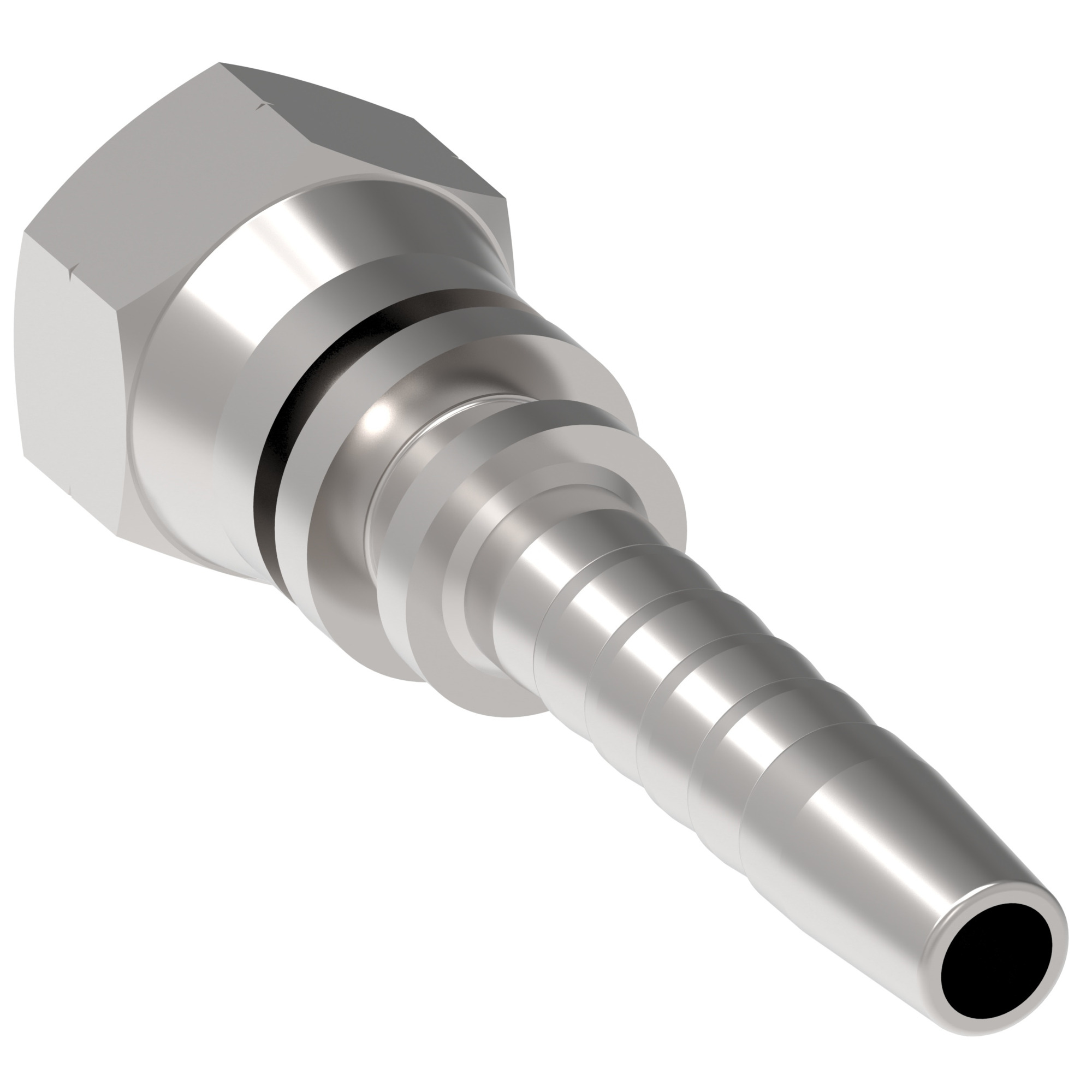

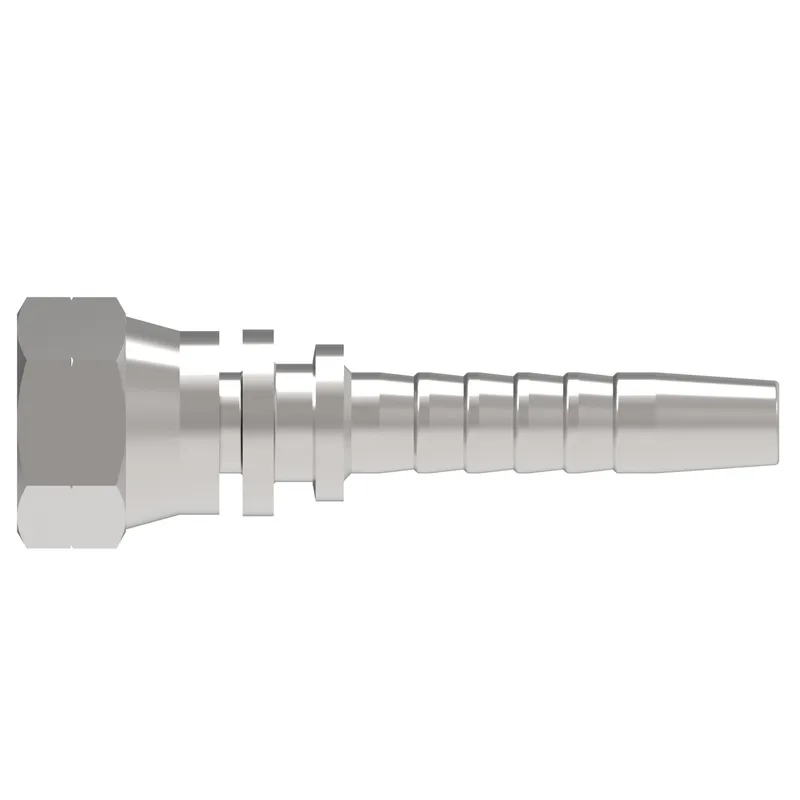

HOSE NIPPLE ASSY, 2P/14, BF/16, CS, STR

MPN: 22611-16-14Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611-16-14Z?

Danfoss HOSE NIPPLE ASSY, 2P/14, BF/16, CS, STR, manufacturer part number 22611-16-14Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.598
A dimension MM	66.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.880
Compatible hose ID MM	22.200
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End connection torque	162-184 lb-ft(220-250 Nm)
End size 1	-16
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	1.610
Hex size 2 MM	40.894
Hose cut off factor IN	1.020
Hose cut off factor MM	26.000
Hose size	-14
Inside diameter IN	0.700
Inside diameter MM	18.000
Product height in	1.860
Product height mm	47.244
Product length in	3.060
Product length mm	77.724
Product material	Carbon steel
Product width in	1.610
Product width mm	40.894
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 1
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
