Danfoss 22611-20-16TZ

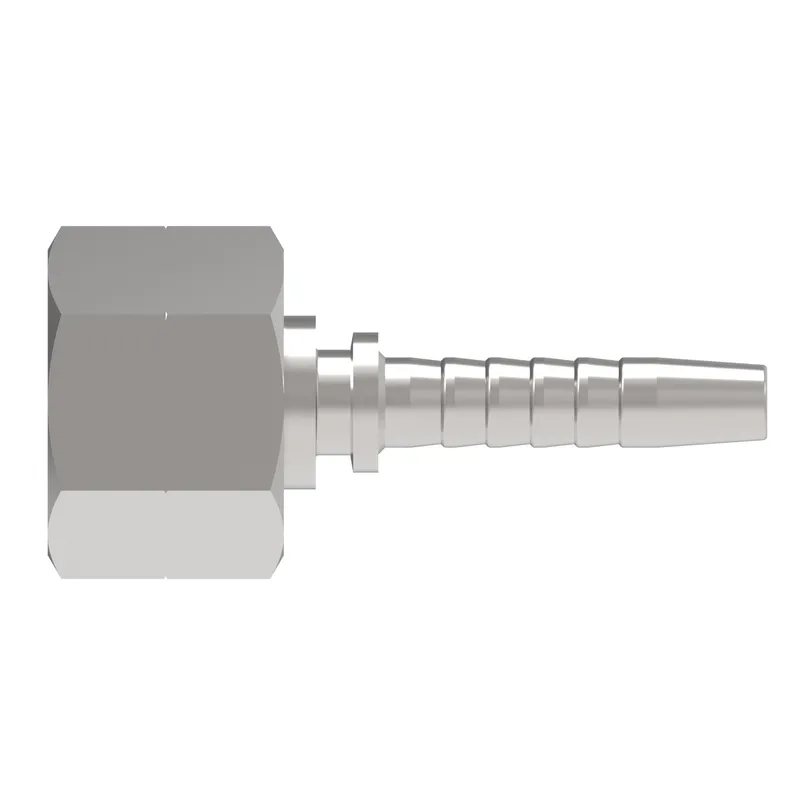

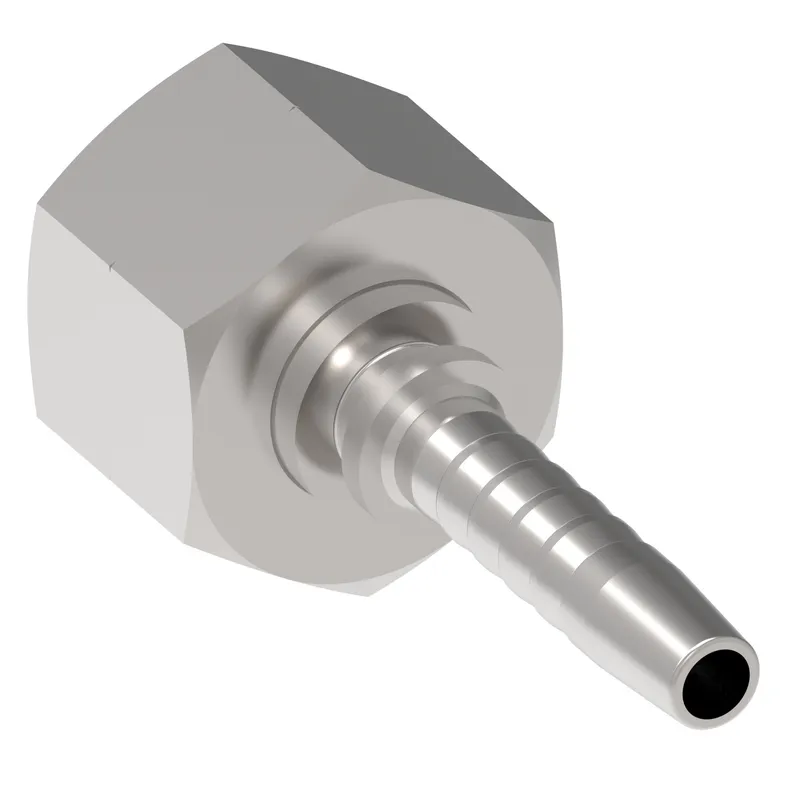

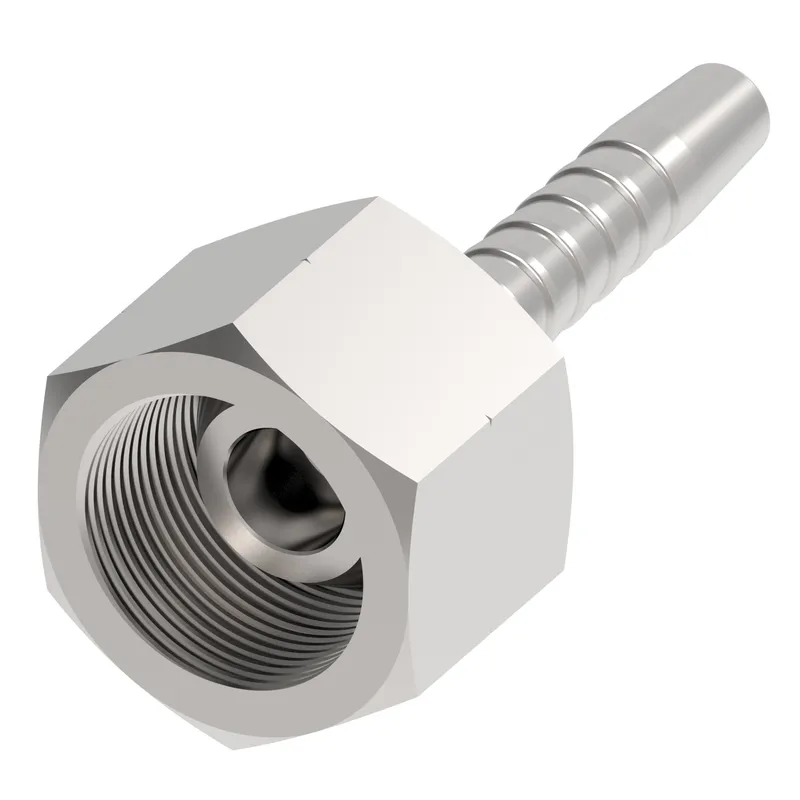

HOSE NIPPLE ASSY, 2P/16, BF/20, CS, STR

MPN: 22611-20-16TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611-20-16TZ?

Danfoss HOSE NIPPLE ASSY, 2P/16, BF/20, CS, STR, manufacturer part number 22611-20-16TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.910
A dimension MM	74.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End connection torque	170-192 lb-ft(230-260 Nm)
End size 1	-20
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hose cut off factor IN	1.063
Hose cut off factor MM	27.000
Hose size	-16
Inside diameter IN	0.820
Inside diameter MM	21.000
Product height in	2.270
Product height mm	57.658
Product length in	3.310
Product length mm	84.074
Product material	Carbon steel
Product width in	1.970
Product width mm	50.038
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
