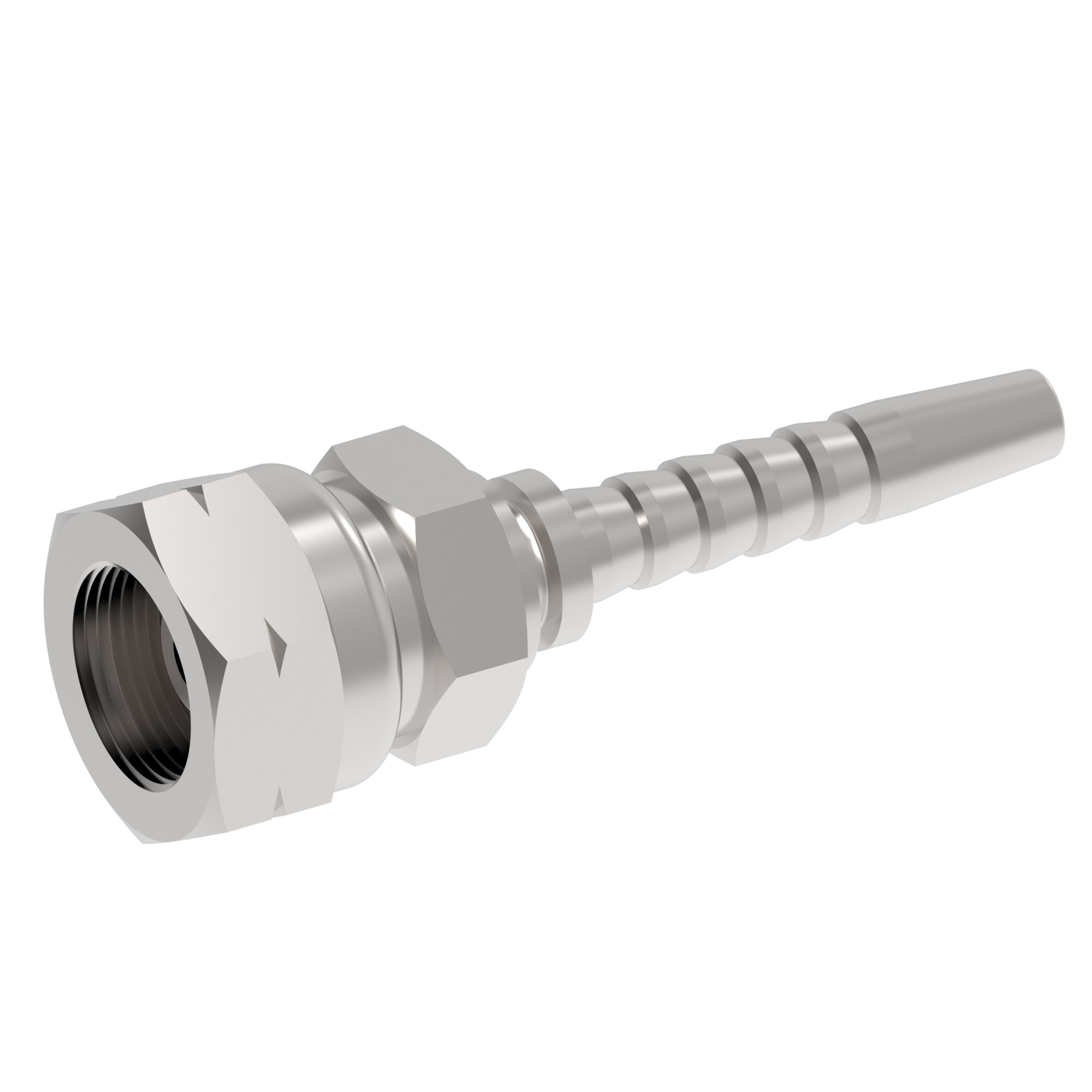

Danfoss 22611D-12-12Z

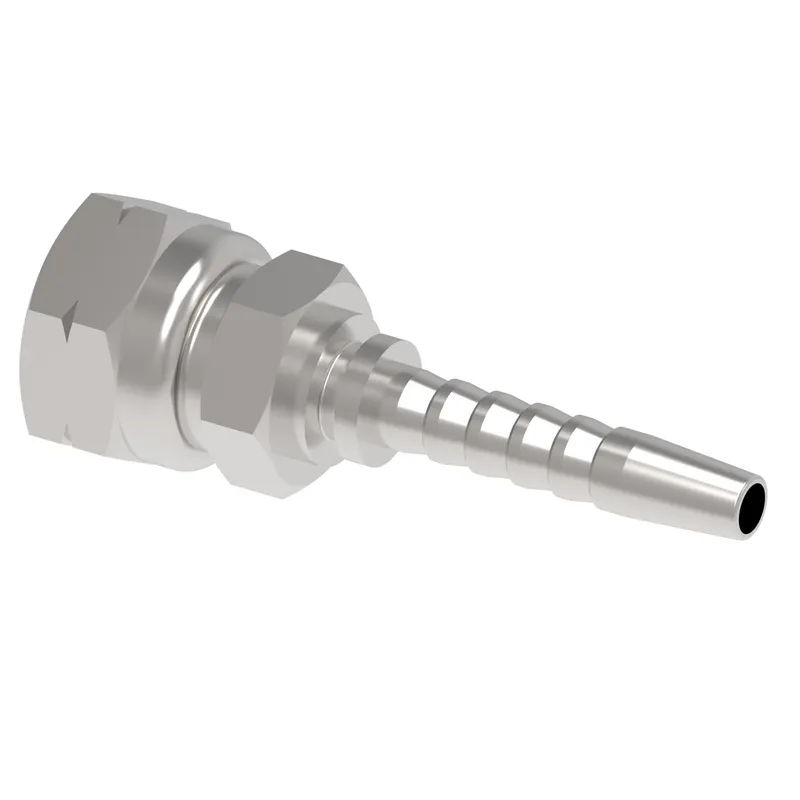

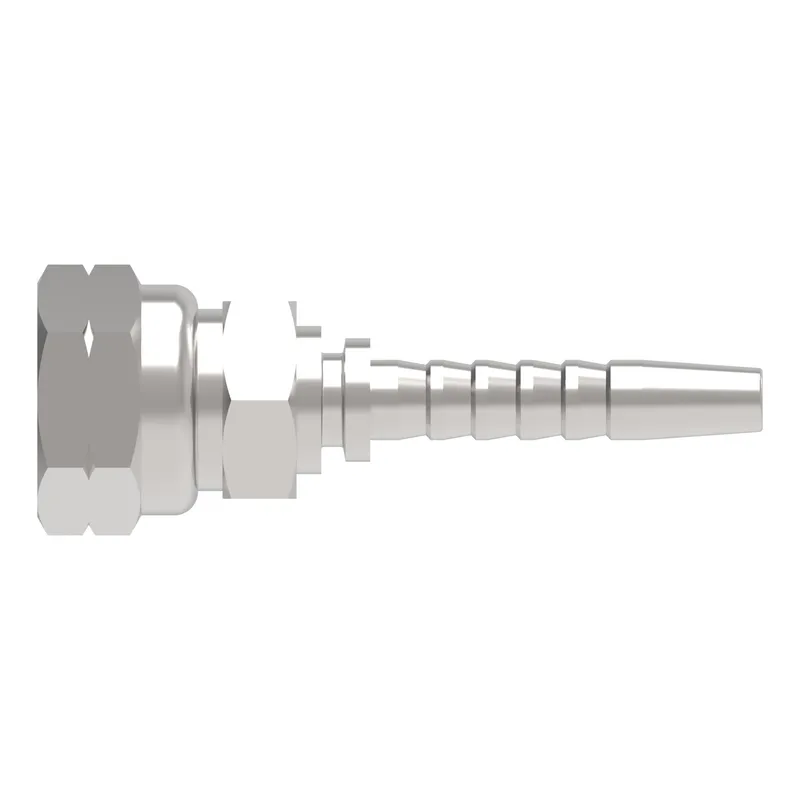

HOSE NIPPLE ASSY, 2P/12, BF/12, CS, STR

MPN: 22611D-12-12Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611D-12-12Z?

Danfoss HOSE NIPPLE ASSY, 2P/12, BF/12, CS, STR, manufacturer part number 22611D-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.830
A dimension MM	72.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	103-118 lb-ft(140-160 Nm)
End size 1	-12
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 1 IN	1.259
Hex size 1 MM	32.000
Hex size 2 MM	32.000
Hose cut off factor IN	1.310
Hose cut off factor MM	33.500
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	1.450
Product height mm	36.830
Product length in	3.260
Product length mm	82.804
Product width in	1.250
Product width mm	31.75
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	G 3/4
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
