Danfoss 22611-08-08TZ

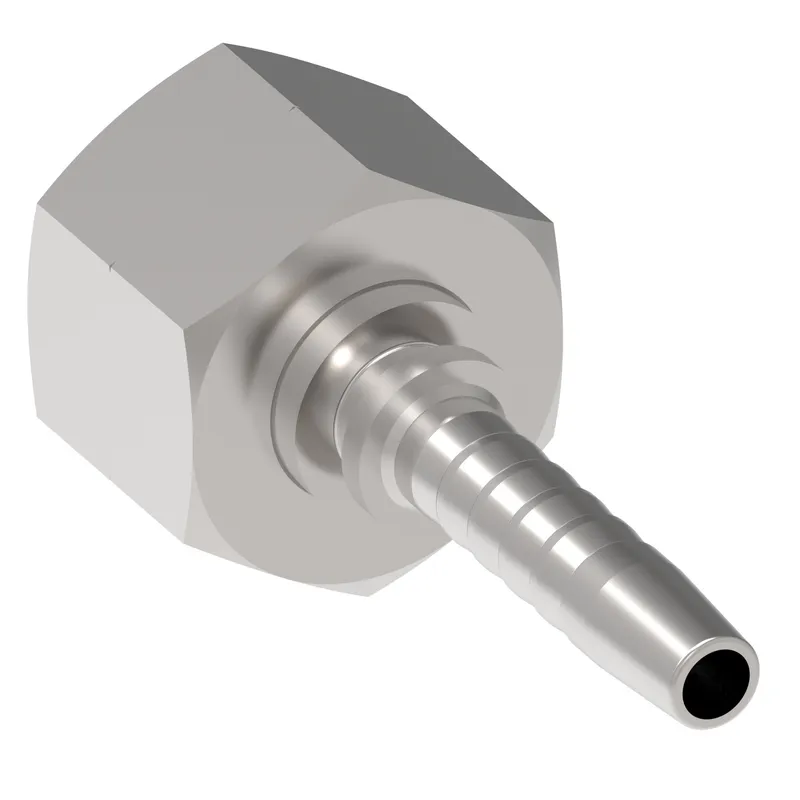

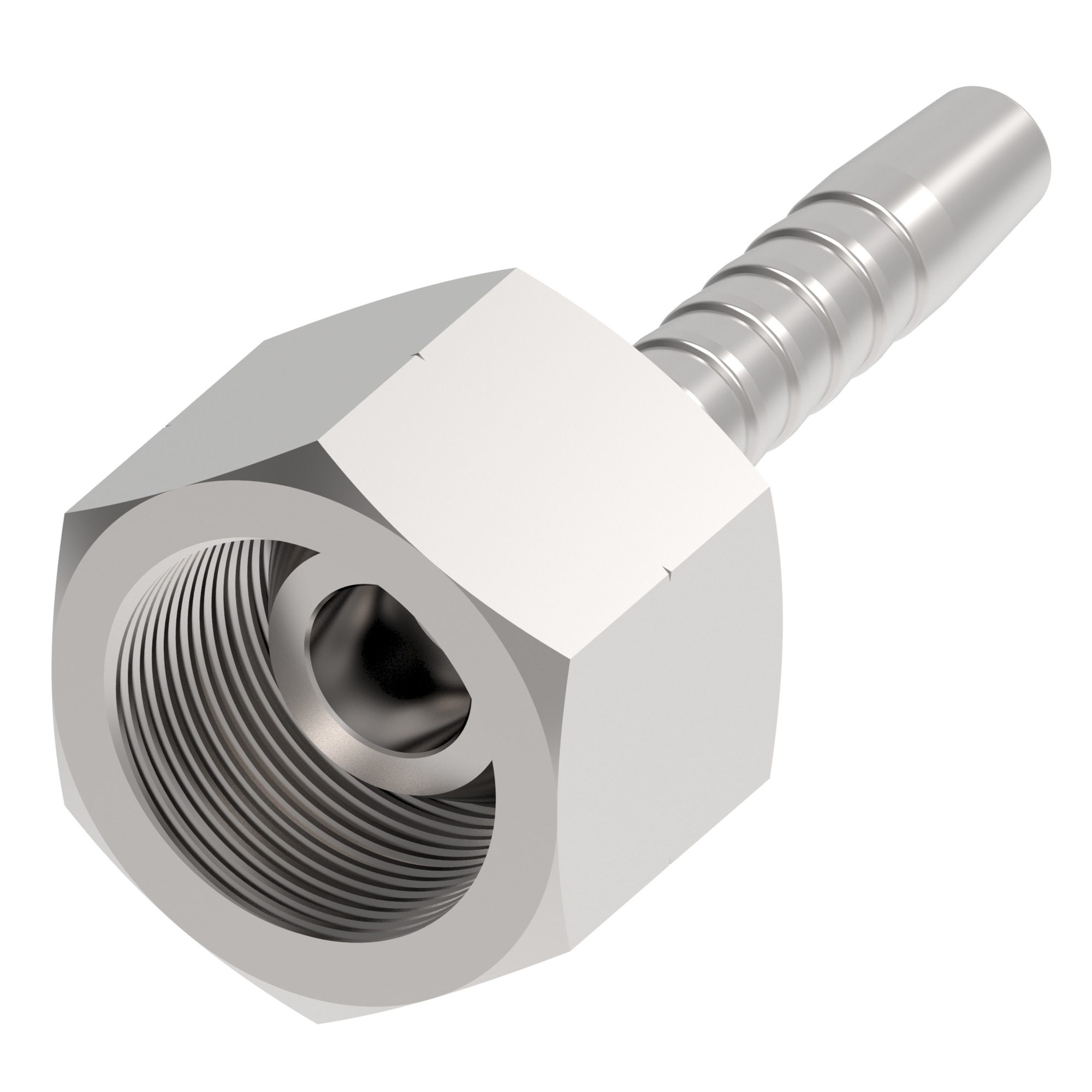

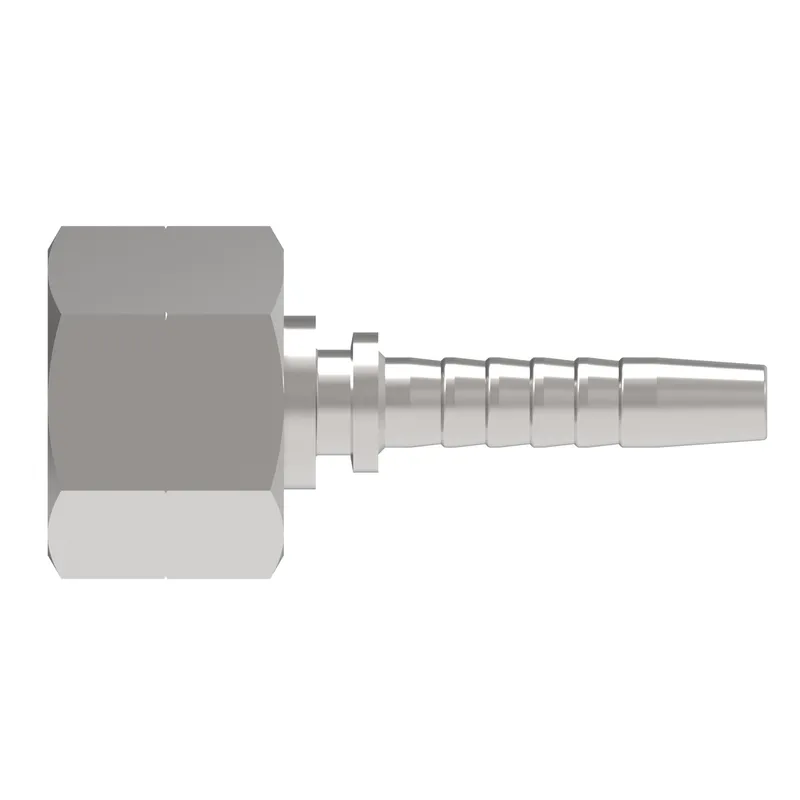

HOSE NIPPLE ASSY, 2P/08, BF/08, CS, STR

MPN: 22611-08-08TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 22611-08-08TZ?

Danfoss HOSE NIPPLE ASSY, 2P/08, BF/08, CS, STR, manufacturer part number 22611-08-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.060
A dimension MM	52.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
End connection torque	55-70 lb-ft(75-95 Nm)
End size 1	-8
End Type 1	Female BSPP swivel
Finish plating	Zinc plating
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	0.820
Hose cut off factor MM	21.000
Hose size	-8
Inside diameter IN	0.826
Inside diameter MM	10.000
Product height in	1.220
Product height mm	30.988
Product length in	2.360
Product length mm	59.944
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	G 1/2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
