Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Product length in | Product length mm |
|---|---|---|---|---|---|
| 22611-06-08Z | 2.000 | 51.000 | 0.760 | 2.260 | 57.404 |
| 22611-06-05ZF | 1.850 | 47.000 | 0.750 | 2.100 | 53.340 |
| 22611-06-05Z | 1.850 | 47.000 | 0.750 | 2.100 | 53.340 |
| 22611-06-04TZ | 1.790 | 45.500 | 0.690 | 2.040 | 51.816 |
| 22611-04-06Z | 1.880 | 48.000 | 0.710 | 2.110 | 53.594 |
| 22611-04-06ORZ | 1.880 | 48.000 | 0.700 | 2.110 | 53.594 |
| 22611-04-05Z | 1.810 | 46.000 | 0.700 | 2.030 | 51.562 |
| 22611-04-04ORZ | 1.810 | 46.000 | 0.700 | 2.030 | 51.562 |
| 22611-04-03Z | 1.530 | 39.000 | 0.680 | 1.750 | 44.450 |
| 22611-02-04Z | 1.710 | 43.500 | 0.610 | 1.930 | 49.022 |
| 22611-02-03Z | 1.430 | 36.500 | 0.590 | 1.440 | 36.576 |
| 22610-08-08Z | 1.750 | 44.500 | 0.710 | 2.050 | 52.070 |
| 22610-08-06TZ | 1.490 | 38.000 | 0.620 | 1.791 | 45.491 |
| 22610-06-08Z | 1.670 | 42.500 | 0.630 | 1.670 | 42.418 |
| 22610-06-06Z | 1.510 | 38.500 | 0.640 | 1.760 | 44.704 |
| 22610-04-04Z | 1.360 | 34.500 | 0.570 | 1.570 | 39.878 |

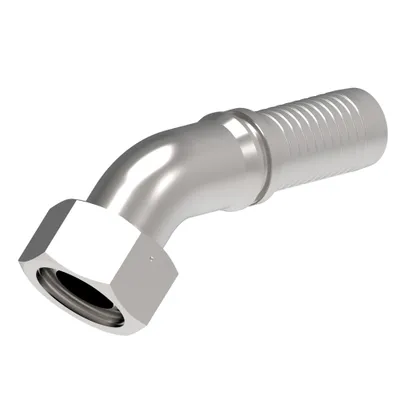

| 22241-20-20WZ | 5.880 | 149.600 | 3.760 | 7.230 | 183.642 |
| 22211-20-20WZ | 3.030 | 77.000 | 0.900 | 3.390 | 86.106 |
| 22211-16-16Z | 2.750 | 70.000 | 0.900 | 3.170 | 80.518 |
| 22211-16-12TZ | 2.360 | 60.000 | 0.840 | 2.970 | 75.438 |
| 22211-12-12Z | 2.360 | 60.000 | 0.840 | 2.720 | 69.088 |
| 22211-12-08TZ | 1.920 | 49.000 | 0.680 | 2.280 | 57.912 |
| 22211-08-08Z | 1.960 | 50.000 | 0.720 | 2.200 | 55.880 |

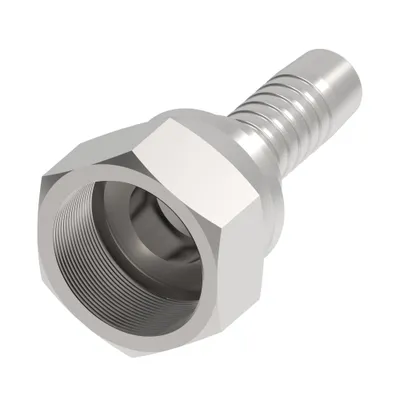

| 22211-08-06TZ | 1.790 | 45.500 | 0.610 | 2.030 | 51.562 |
Common to all listed parts
| Construction Style | Crimp |
| End Type 1 | Female BSPP swivel |
| Finish plating | Zinc plating |
| Product material | Carbon steel |
