Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product height in | Product height mm | Product width mm | Product length in | Product length mm |
|---|---|---|---|---|---|

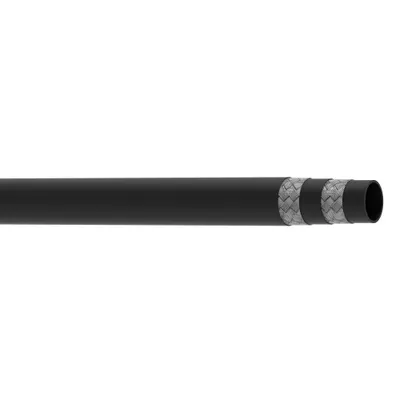

| 2781-12 | 0.750 | 19.000 | 19 | — | — |
| 2781-10 | 0.620 | 15.900 | 15.9 | — | — |
| 26798D-20-20WLTZ | 4.783 | 121.488 | 50.038 | 6.342 | 161.087 |
| 26798D-16-16LTZ | 3.980 | 101.092 | 40.894 | 5.570 | 141.478 |
| 26798D-12-12LTZ | 3.622 | 91.998 | 32.004 | 5.374 | 136.500 |
| 26798D-10-10LTZ | 3.070 | 77.978 | 26.924 | 4.566 | 115.976 |
| 26798D-10-08LTZ | 2.854 | 72.491 | 26.924 | 3.937 | 99.999 |
| 26798D-08-10LTZ | 2.736 | 69.494 | 23.876 | 4.094 | 103.988 |
| 26798D-08-08LTZ | 2.677 | 67.995 | 23.876 | 3.799 | 96.494 |
| 26798D-06-06LTZ | 2.323 | 59.004 | 19.05 | 3.200 | 81.280 |
| 26798D-04-04LTZ | 1.940 | 49.276 | 13.97 | 2.460 | 62.484 |
| 26791Y1-20-20WZ | 4.990 | 126.750 | 61.3 | 6.310 | 160.500 |
| 26791Y-32-32WZ | 7.300 | 185.420 | 81.788 | 9.560 | 242.824 |
| 26791Y-24-24WZ | 5.781 | 146.837 | 68.326 | 8.165 | 207.391 |
| 26791Y-20-20WZ | 4.990 | 126.746 | 60.96 | 6.319 | 160.503 |
| 26791Y-16-16Z | 4.165 | 10.579 | 49.022 | 5.453 | 138.506 |
| 26791Y-16-16WZ | 4.114 | 104.496 | 49.022 | 5.452 | 138.481 |
| 26791Y-12-16Z | 3.385 | 85.979 | 48.996 | 4.970 | 126.238 |
| 26791Y-12-12Z | 3.455 | 87.757 | 39.624 | 4.291 | 108.991 |
| 26791Y-12-12WZ | 3.474 | 88.239 | 39.624 | 4.291 | 108.991 |
| 26791Y-12-12SR | 3.405 | 86.500 | 37 | 4.685 | 119.000 |
| 26791Y-12-12CNZ | 3.110 | 78.994 | 31.75 | 4.530 | 115.062 |
| 26791Y-10-10Z | 3.083 | 78.308 | 35.56 | 3.799 | 96.494 |
| 26791Y-10-10CNZ | 2.510 | 63.754 | 32.766 | 3.790 | 96.266 |
