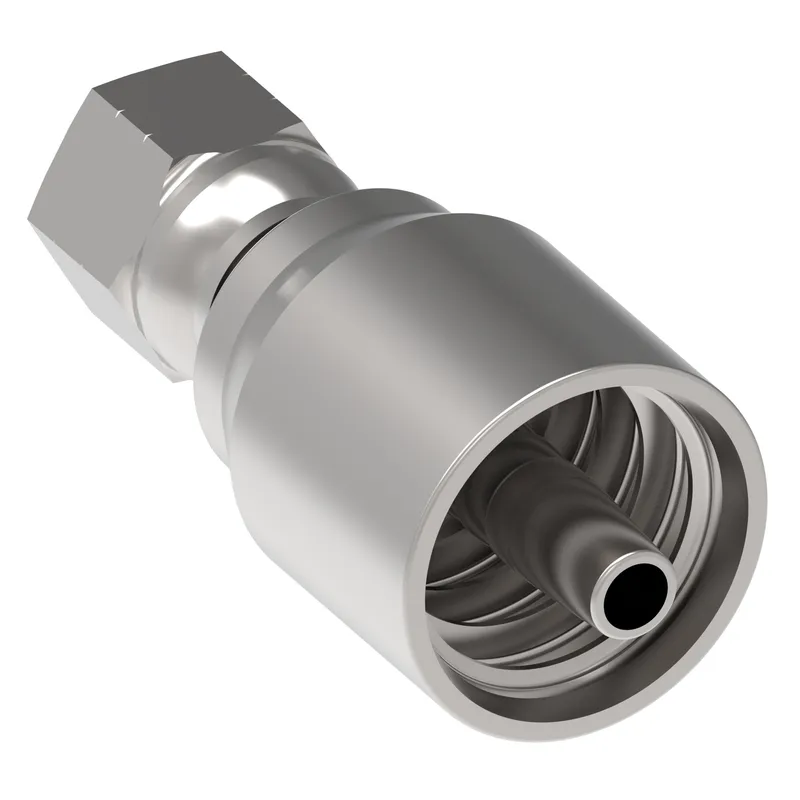

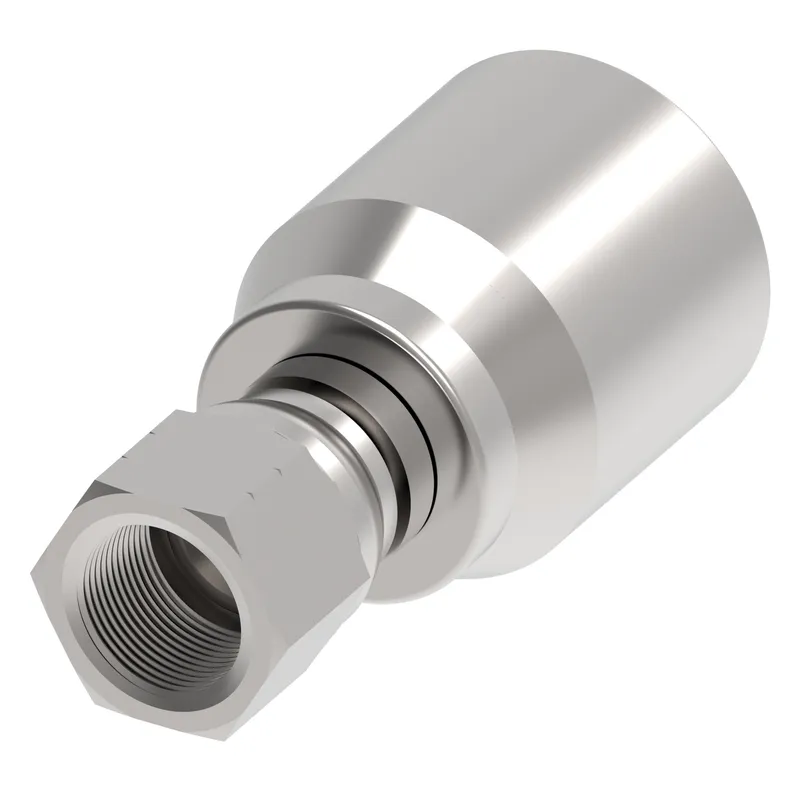

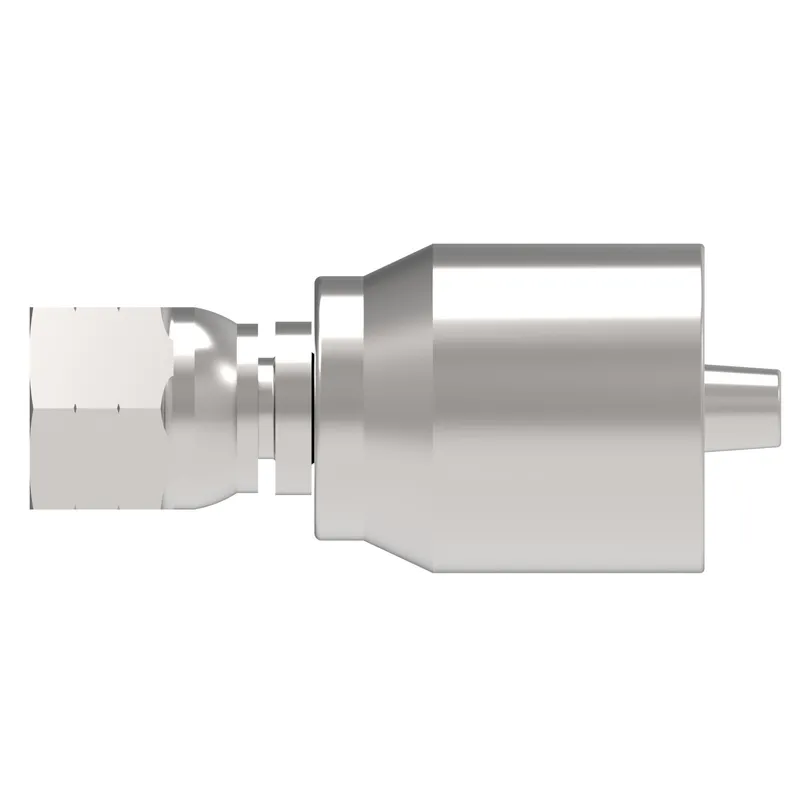

Danfoss 27811Y-04-04Z

HOSE NIPPLE ASSY, 1P/04, FS/04, CS, STR

MPN
27811Y-04-04Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 27811Y-04-04Z?

Danfoss HOSE NIPPLE ASSY, 1P/04, FS/04, CS, STR, manufacturer part number 27811Y-04-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN1.692
A dimension MM43.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.251
Compatible hose ID MM6.350
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-4
End size 2-4
End Type 1Female 45 degree swivel
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN0.551
Hex size 1 MM14.000
Hex size 2 IN0.551
Hex size 2 MM13.995
Hose cut off factor IN0.590
Hose cut off factor MM15.000
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in0.897
Product height mm22.783
Product length in2.059
Product length mm52.298
Product materialCarbon steel
Product width in0.897
Product width mm22.783
Thread sealantNo
Thread size 17/16-20 UNF

27811Y-04-04Z: frequently asked questions

When can 27811Y-04-04Z be shipped?

27811Y-04-04Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 27811Y-04-04Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 27811Y-04-04Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 27811Y-04-04Z, subject to availability and destination.
