HOSE NIPPLE ASSY, 1P/12, FS/12, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 27891-12-12Z be shipped?
27891-12-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 27891-12-12Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 27891-12-12Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 27891-12-12Z, subject to availability and destination.

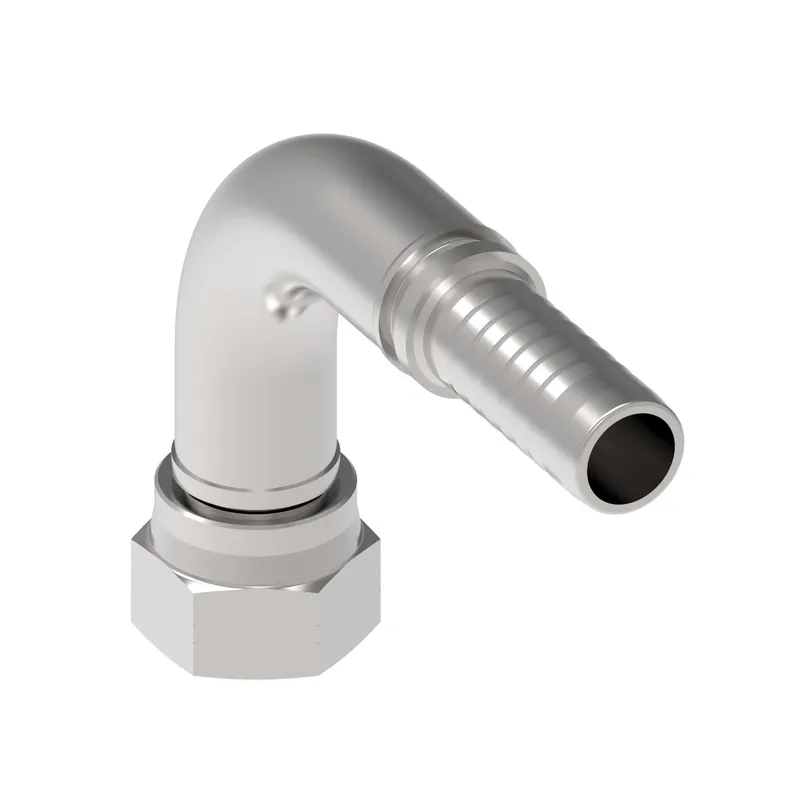

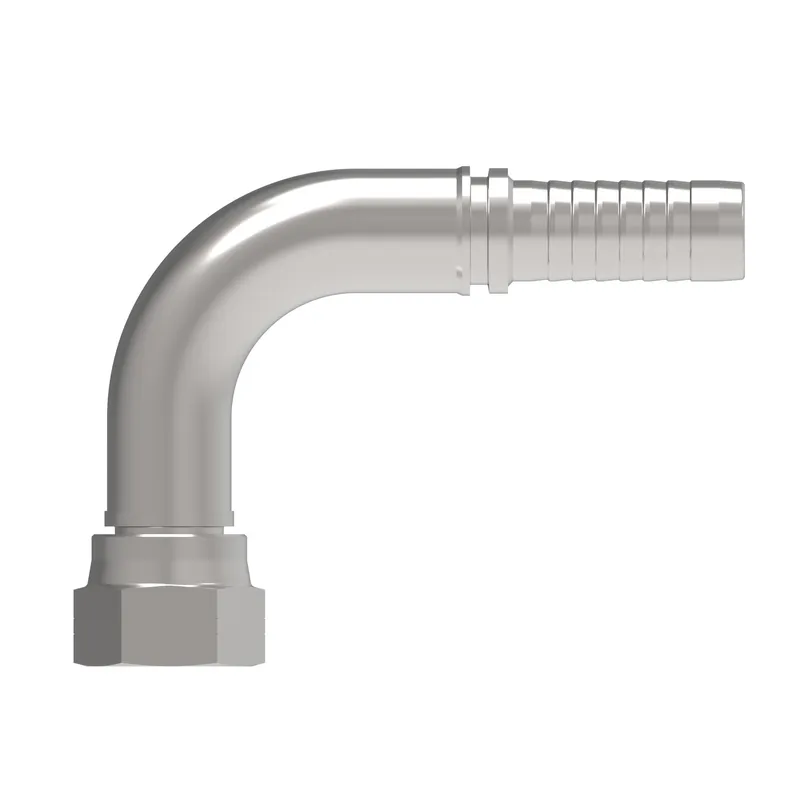

Danfoss HOSE NIPPLE ASSY, 1P/12, FS/12, CS, 90D, manufacturer part number 27891-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.070 |
| A dimension MM | 103.400 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.748 |
| Compatible hose ID MM | 19.050 |
| Construction Style | Crimp |
| Drop dimension IN | 2.500 |
| Drop dimension MM | 63.50 |
| End size 1 | -12 |
| End Type 1 | Female 45 degree swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.260 |
| Hex size 1 MM | 32.000 |
| Hose cut off factor IN | 2.555 |
| Hose cut off factor MM | 64.900 |
| Hose size | -12 |
| Inside diameter IN | 0.590 |
| Inside diameter MM | 15.000 |
| Product height in | 3.555 |
| Product height mm | 90.300 |
| Product length in | 4.700 |
| Product length mm | 119.400 |
| Product material | Carbon steel |
| Product width in | 1.259 |
| Product width mm | 32 |
| Thread sealant | No |
More Danfoss (Drives) parts
Available on requestCG 03 FV 10 S81, CG03FV10S81
Available on requestHOSE NIPPLE ASSY, 1P/05, FS/06, CS, 90D
Available on requestHOSE NIPPLE ASSY, 1P/06, FS/06, CS, 90D
Available on requestHOSE NIPPLE ASSY, 1P/10, FS/10, CS, 90D
Available on requestURT2 06 C 12, URT206C12

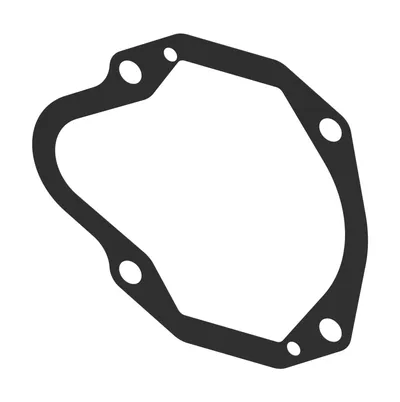

Available on requestGasket, End Cover (Paper) - PVB5/6
