Danfoss 27818D-06-06LTZ

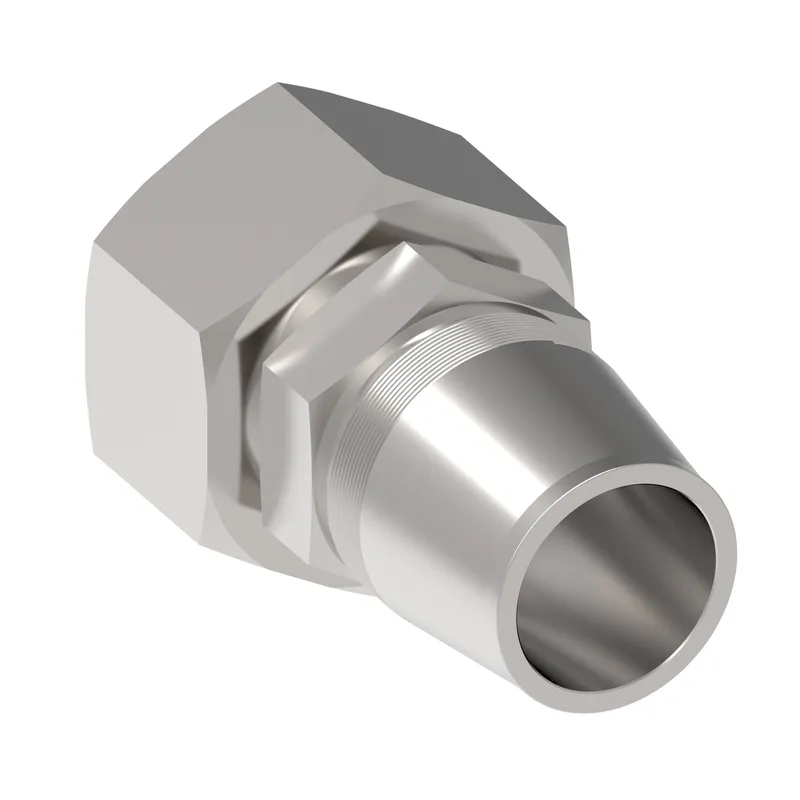

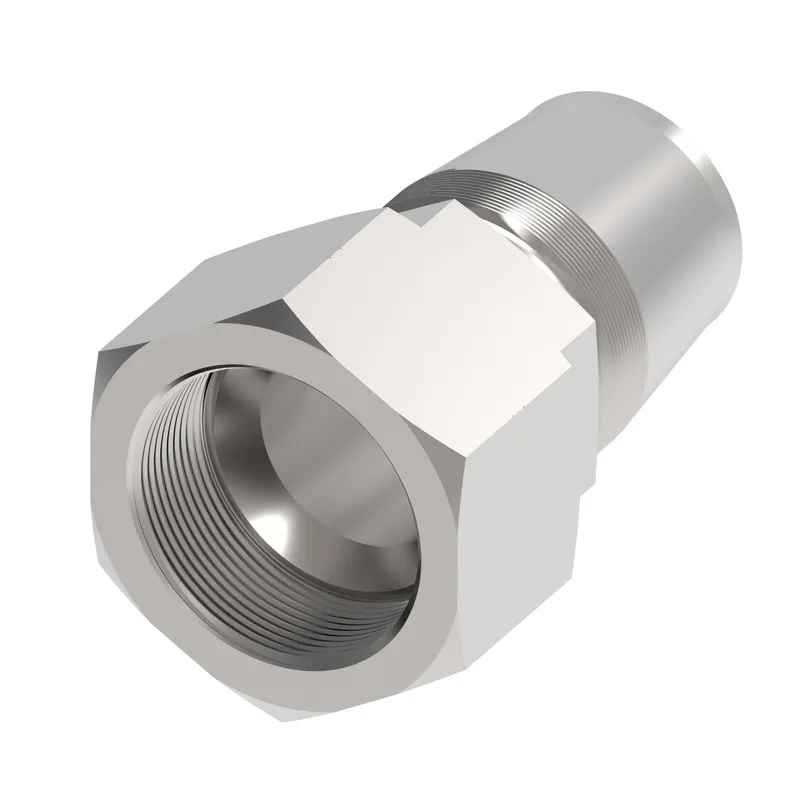

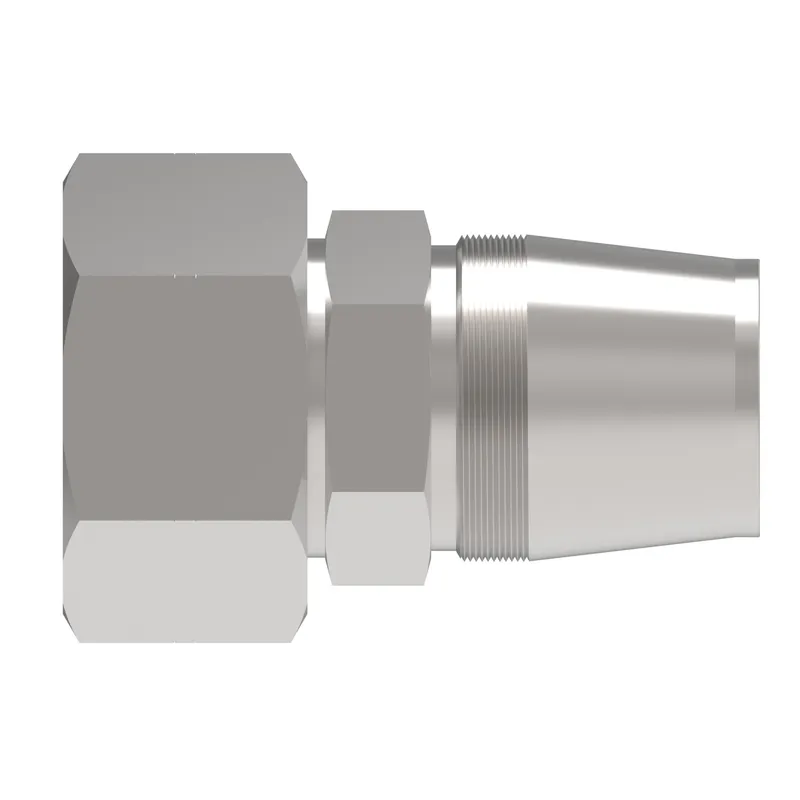

HOSE NIPPLE ASSY, 1P/06, FS/06, CS, STR

MPN
27818D-06-06LTZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 27818D-06-06LTZ?

Danfoss HOSE NIPPLE ASSY, 1P/06, FS/06, CS, STR, manufacturer part number 27818D-06-06LTZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN1.988
A dimension MM50.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.374
Compatible hose ID MM9.525
Construction StyleCrimp
End size 1-6
End size 2-6
End Type 1Female 45 degree swivel
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN0.669
Hex size 1 MM17.000
Hex size 2 IN0.870
Hex size 2 MM22.098
Hose cut off factor IN1.082
Hose cut off factor MM27.500
Hose size-6
Inside diameter IN0.236
Inside diameter MM6.000
Product height in1.000
Product height mm25.400
Product length in2.433
Product length mm61.798
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Thread sealantNo

27818D-06-06LTZ: frequently asked questions

When can 27818D-06-06LTZ be shipped?

27818D-06-06LTZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 27818D-06-06LTZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 27818D-06-06LTZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 27818D-06-06LTZ, subject to availability and destination.
