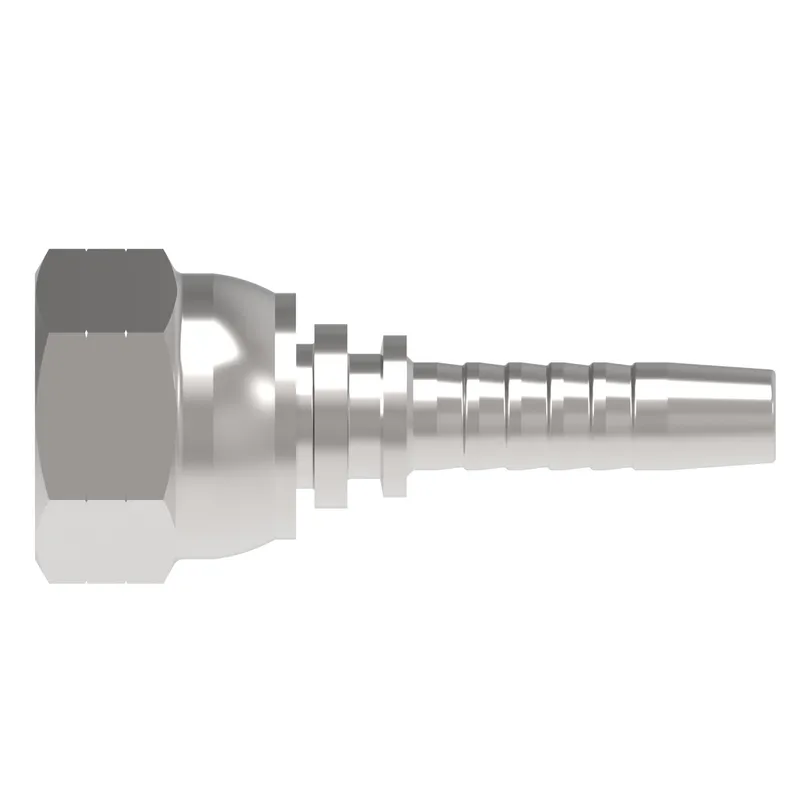

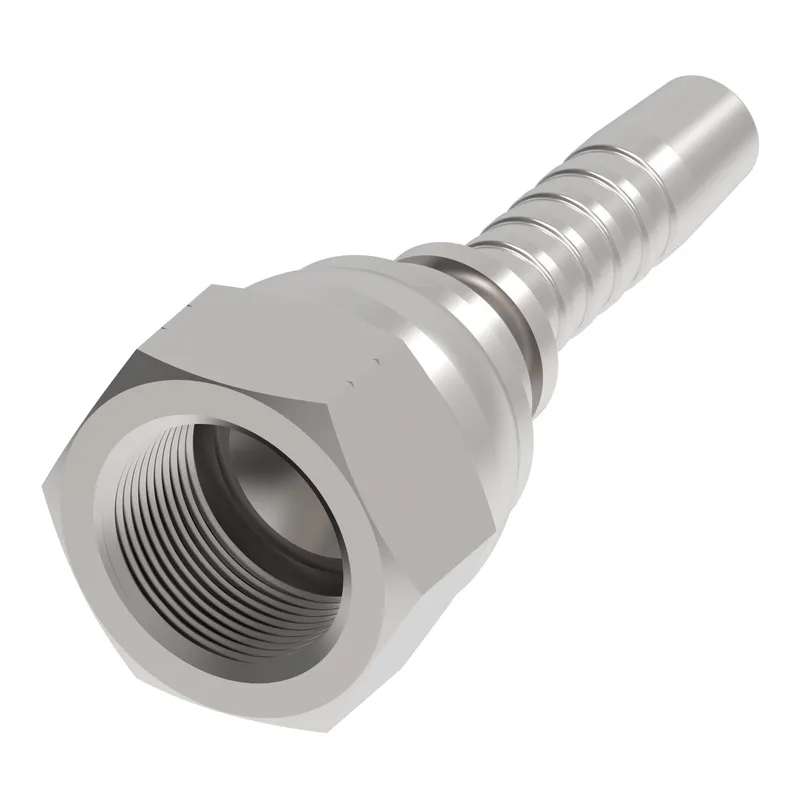

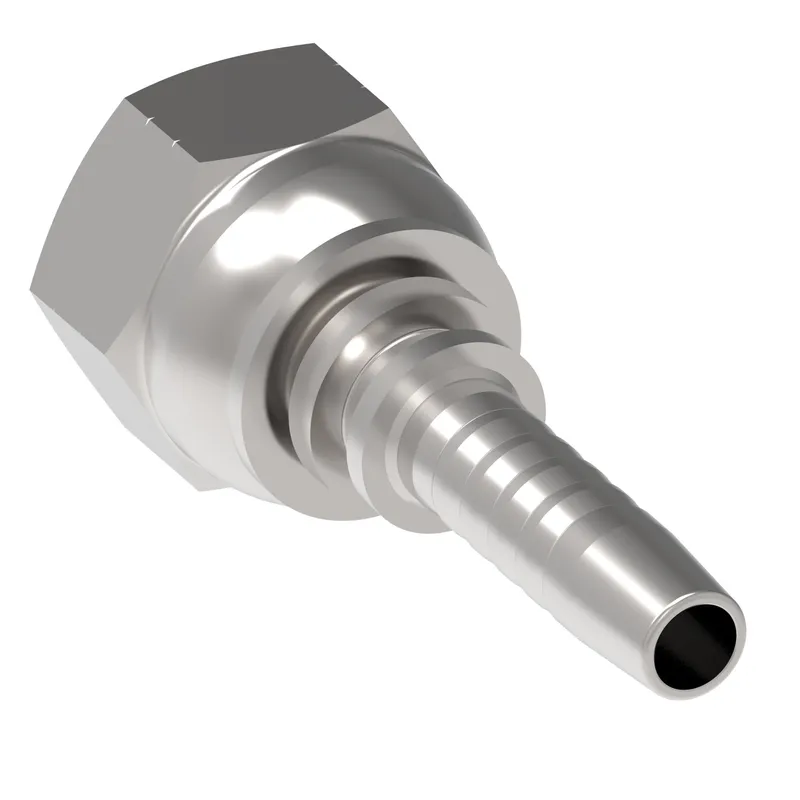

Danfoss 27811-12-10Z

HOSE NIPPLE ASSY, 2P/10, FS/12, CS, STR

MPN
27811-12-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 27811-12-10Z?

Danfoss HOSE NIPPLE ASSY, 2P/10, FS/12, CS, STR, manufacturer part number 27811-12-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.141
A dimension MM54.400
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.875
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-12
End size 2-6
End Type 1Female 45 degree swivel
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.259
Hex size 1 MM32.000
Hex size 2 IN1.260
Hex size 2 MM32.004
Hose cut off factor IN0.803
Hose cut off factor MM20.400
Hose size-10
Inside diameter IN0.470
Inside diameter MM12.000
Product height in1.450
Product height mm36.830
Product length in2.704
Product length mm68.681
Product materialCarbon steel
Product width in1.260
Product width mm32.004
Thread sealantNo
Thread size 11 1/16-14 UN

27811-12-10Z: frequently asked questions

When can 27811-12-10Z be shipped?

27811-12-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 27811-12-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 27811-12-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 27811-12-10Z, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 27810-10-10Z – HOSE NIPPLE ASSY, 2P/10, FS/10, CS, STR
Danfoss
27810-10-10Z

HOSE NIPPLE ASSY, 2P/10, FS/10, CS, STR

Danfoss 27811-06-05Z – HOSE NIPPLE ASSY, 2P/05, FS/06, CS, STR
Danfoss
27811-06-05Z

HOSE NIPPLE ASSY, 2P/05, FS/06, CS, STR

Danfoss 27811-06-06Z – HOSE NIPPLE ASSY, 2P/06, FS/06, CS, STR
Danfoss
27811-06-06Z

HOSE NIPPLE ASSY, 2P/06, FS/06, CS, STR

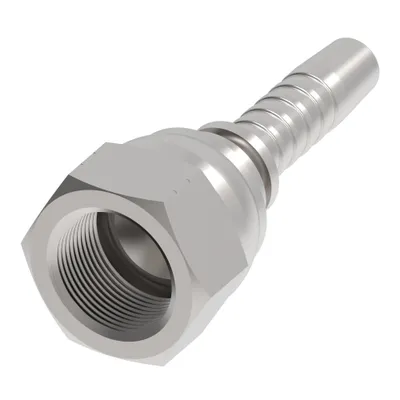

Danfoss 27811-08-08Z – HOSE NIPPLE ASSY, 2P/08, FS/08, CS, STR
Danfoss
27811-08-08Z

HOSE NIPPLE ASSY, 2P/08, FS/08, CS, STR

Danfoss 27811-12-12Z – HOSE NIPPLE ASSY, 2P/12, FS/12, CS, STR
Danfoss
27811-12-12Z

HOSE NIPPLE ASSY, 2P/12, FS/12, CS, STR

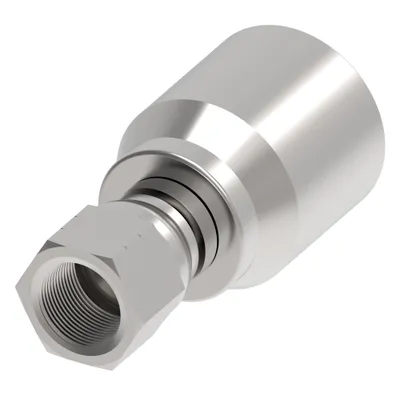

Danfoss 27811Y-04-04Z – HOSE NIPPLE ASSY, 1P/04, FS/04, CS, STR
Danfoss
27811Y-04-04Z

HOSE NIPPLE ASSY, 1P/04, FS/04, CS, STR

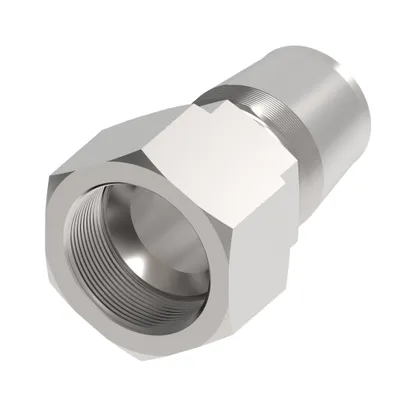

Danfoss 27818D-06-06LTZ – HOSE NIPPLE ASSY, 1P/06, FS/06, CS, STR
