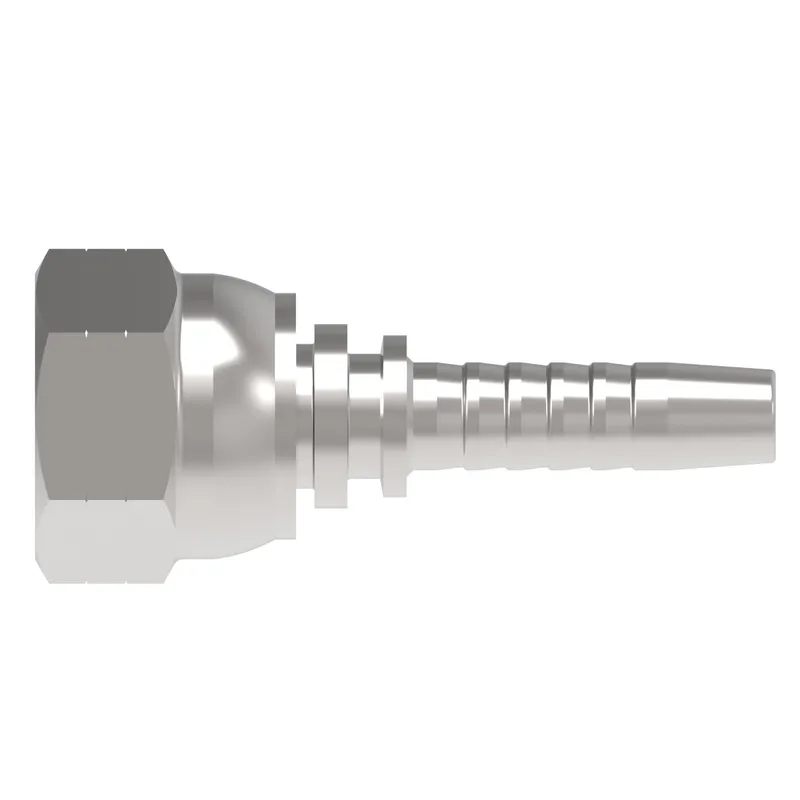

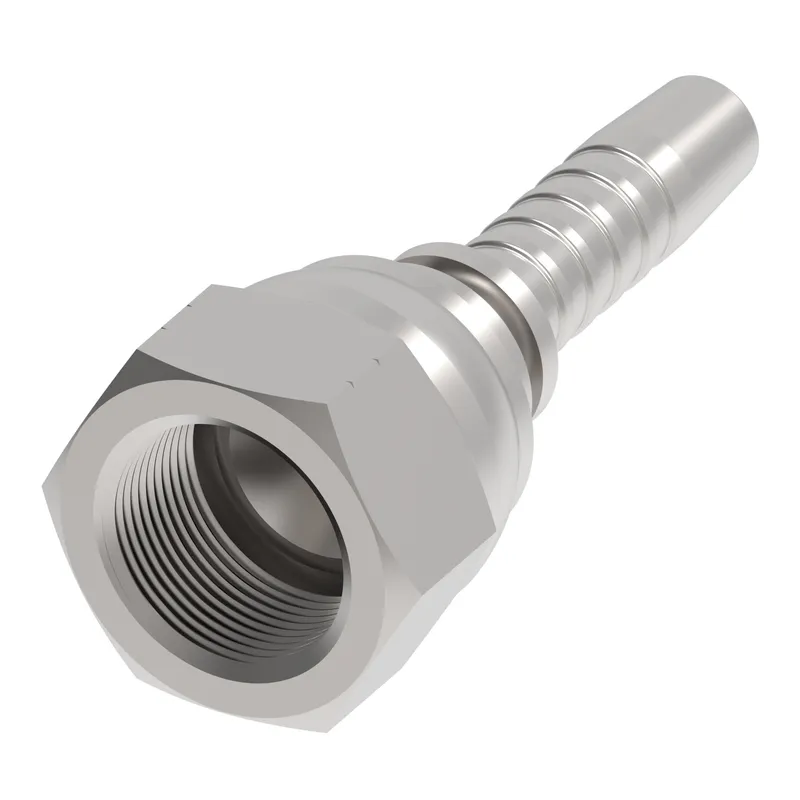

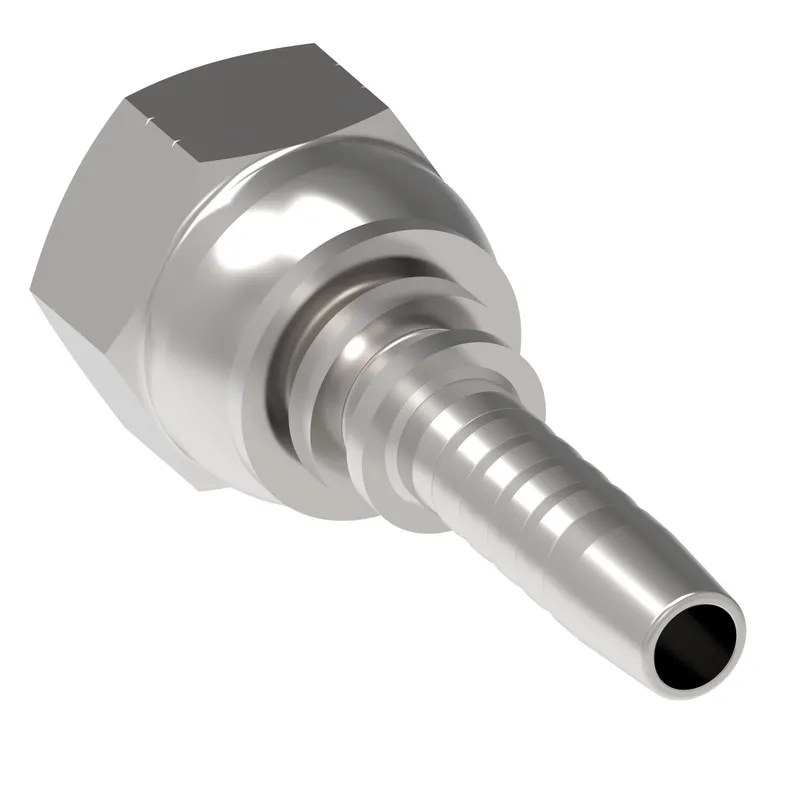

Danfoss 27810-10-10Z

HOSE NIPPLE ASSY, 2P/10, FS/10, CS, STR

MPN
27810-10-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 27810-10-10Z?

Danfoss HOSE NIPPLE ASSY, 2P/10, FS/10, CS, STR, manufacturer part number 27810-10-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.145
A dimension MM54.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.875
Construction StyleCrimp
End size 1-10
End size 2-6
End Type 1Female 45 degree swivel
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.062
Hex size 1 MM27.000
Hex size 2 IN1.063
Hex size 2 MM27.000
Hose cut off factor IN0.598
Hose cut off factor MM15.200
Hose size-10
Inside diameter IN0.484
Inside diameter MM12.300
Product height in1.220
Product height mm30.988
Product length in2.657
Product length mm67.487
Product materialCarbon steel
Product width in1.062
Product width mm26.974
Thread sealantNo
Thread size 17/8-14 UNF

27810-10-10Z: frequently asked questions

When can 27810-10-10Z be shipped?

27810-10-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 27810-10-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 27810-10-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 27810-10-10Z, subject to availability and destination.
