Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension MM | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|
| 87341Y-20-20Z | 148.500 | 3.492 | 88.699 | 6.453 | 163.901 |
| 87341Y-16-16Z | 130.900 | 2.963 | 75.250 | 6.020 | 152.900 |
| 87341Y-16-12Z | 114.800 | 2.740 | 69.596 | 4.520 | 114.808 |
| 87341Y-12-12Z | 114.800 | 2.616 | 66.449 | 5.260 | 133.599 |
| 87341-40-40Z | 180.000 | 7.874 | 200.000 | 7.638 | 194.000 |
| 87341-40-32Z | 202.700 | 4.675 | 118.750 | 7.980 | 202.700 |
| 87341-32-32ZN | 201.300 | 3.228 | 82.001 | 7.925 | 201.300 |
| 87341-32-32Z | 201.300 | 4.921 | 125.001 | 9.331 | 237.000 |
| 87341-32-24Z | 177.900 | 4.921 | 125.001 | 8.409 | 213.601 |
| 87341-24-32Z | 200.600 | 3.955 | 100.449 | 9.085 | 230.751 |
| 87341-24-24SV | 177.900 | 2.425 | 61.600 | 7.004 | 177.899 |
| 87341-24-24SR | 177.900 | 2.425 | 61.600 | 7.004 | 177.899 |
| 87341-24-20Z | 149.900 | 3.636 | 92.349 | 7.089 | 180.050 |

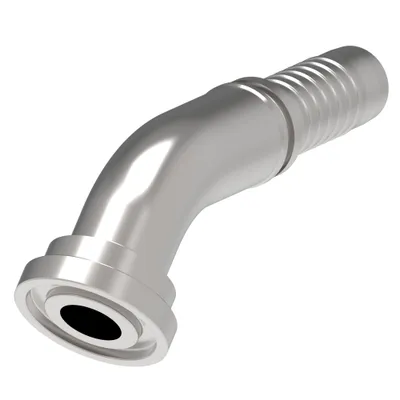

| 87341-20-16Z | 51.500 | 3.000 | 76.200 | 6.200 | 157.480 |
| 87341-16-20Z | 47.500 | 2.953 | 75.001 | 5.846 | 148.501 |
| 87341-16-16Z | 97.000 | 2.870 | 72.898 | 6.020 | 152.908 |
| 87341-12-08Z | 194.000 | 2.080 | 52.832 | 4.300 | 109.220 |
| 87331-16-16Z | 138.400 | 2.205 | 55.999 | 5.449 | 138.400 |
| 87321-20-20Z | 157.700 | 2.290 | 58.166 | 6.520 | 165.608 |
| 87311Y1-20-20Z | 112.000 | 2.000 | 50.800 | 4.410 | 112.014 |
| 87311Y-32-32ZN | 142.000 | 3.150 | 80.010 | 5.590 | 141.986 |
| 87311Y-32-32Z | 142.000 | 3.220 | 81.801 | 4.843 | 123.000 |
| 87311Y-32-24Z | 138.000 | 2.811 | 71.399 | 5.430 | 137.922 |
| 87311Y-24-24RSV | 136.000 | 2.638 | 67.000 | 5.354 | 135.999 |
Common to all listed parts
| Construction Style | Crimp |
| End Type 1 | Split flange code 61 |
| Thread sealant | No |
