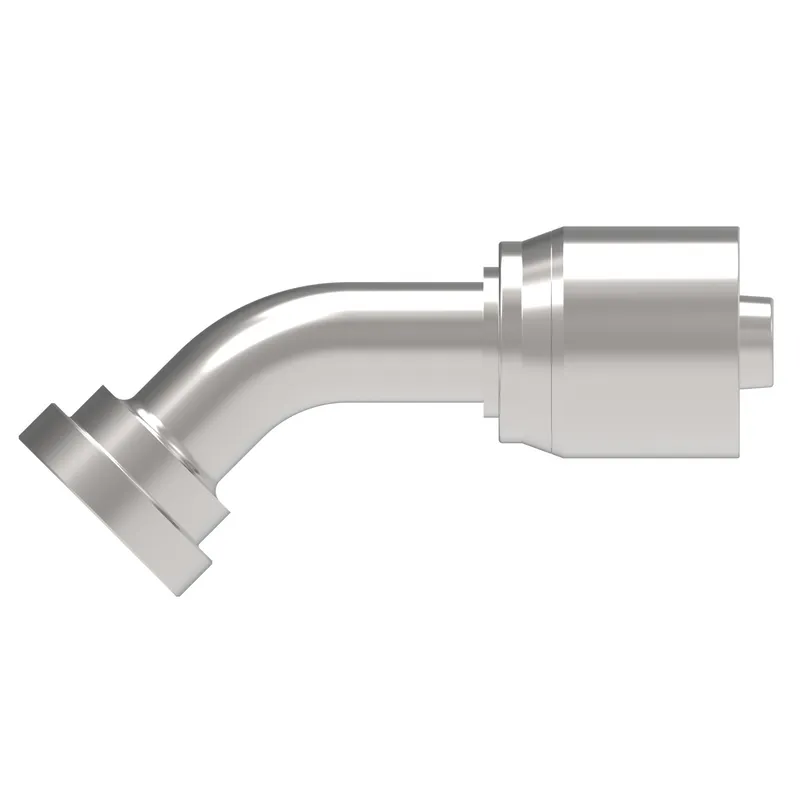

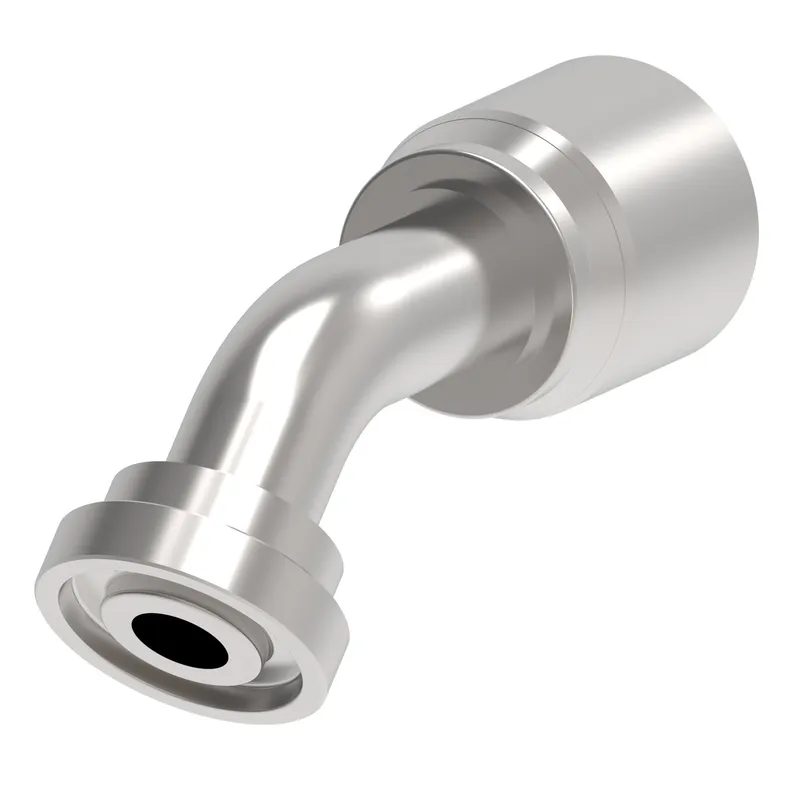

Danfoss 87341Y-20-20Z

HOSE NIPPLE, 1P/20, C61/20, CS, 45D

MPN
87341Y-20-20Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87341Y-20-20Z?

Danfoss HOSE NIPPLE, 1P/20, C61/20, CS, 45D, manufacturer part number 87341Y-20-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.846
A dimension MM148.500
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN1.330
Drop dimension MM33.80
End size 1-20
End size 2-20
End Type 1Split flange code 61
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN3.720
Hose cut off factor MM94.500
Hose size-20
Inside diameter IN1.062
Inside diameter MM27.000
Product height in3.492
Product height mm88.699
Product length in6.453
Product length mm163.901
Product materialCarbon steel
Product width in2.000
Product width mm50.8
Thread sealantNo
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87341Y-20-20Z: frequently asked questions

When can 87341Y-20-20Z be shipped?

87341Y-20-20Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87341Y-20-20Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87341Y-20-20Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87341Y-20-20Z, subject to availability and destination.
