Danfoss 87341-20-16Z

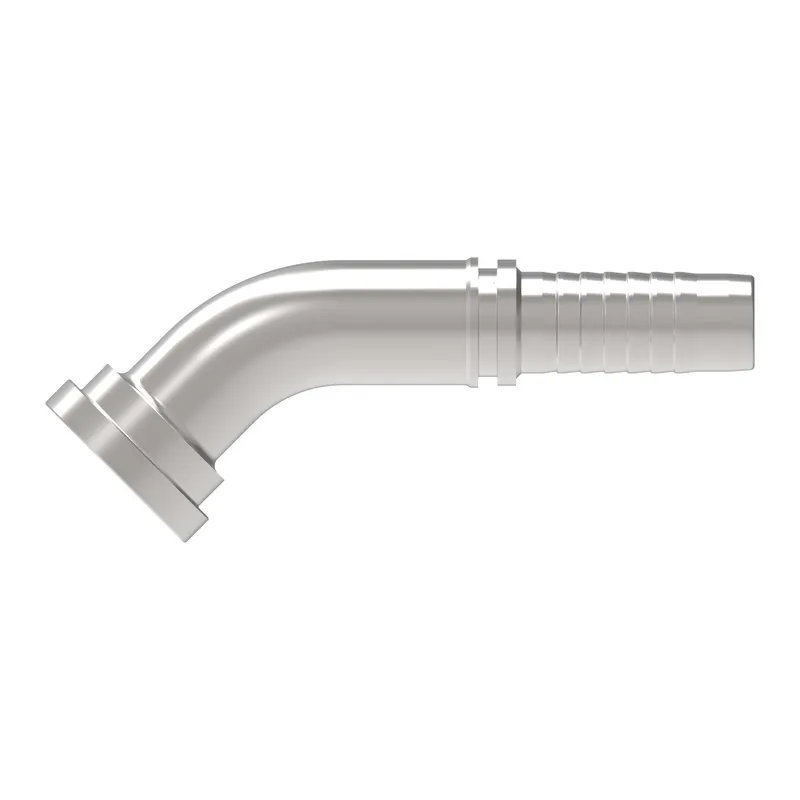

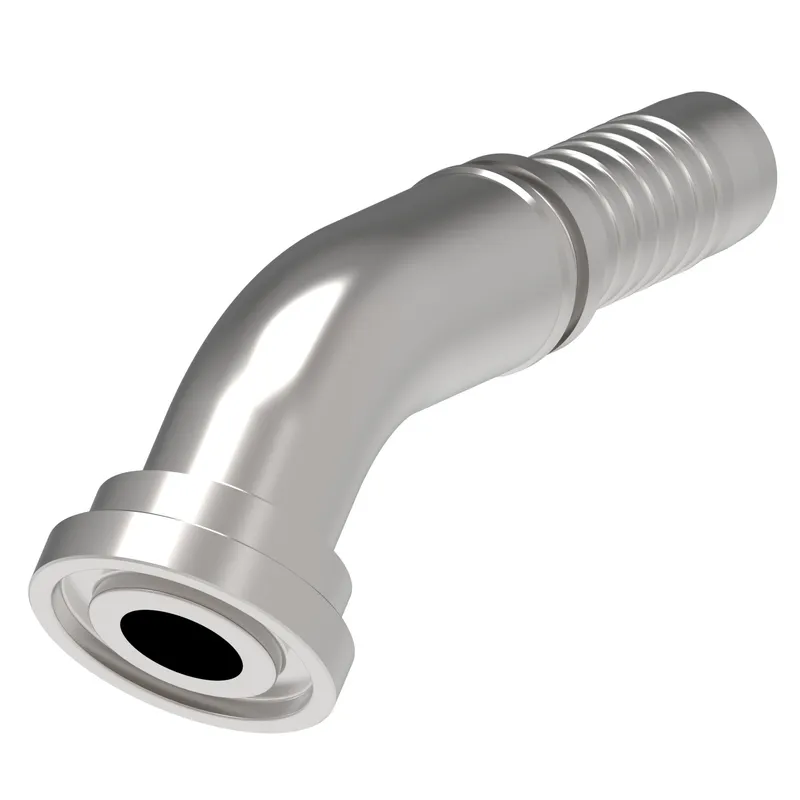

HOSE NIPPLE, 2P/16, C61/20, CS, 45D

MPN
87341-20-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87341-20-16Z?

Danfoss HOSE NIPPLE, 2P/16, C61/20, CS, 45D, manufacturer part number 87341-20-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.204
A dimension MM51.500
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.000
Construction StyleCrimp
Drop dimension IN1.169
Drop dimension MM29.70
End size 1-20
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN3.354
Hose cut off factor MM85.200
Inside diameter IN0.826
Inside diameter MM21.000
Product height in3.000
Product height mm76.200
Product length in6.200
Product length mm157.480
Product materialCarbon steel
Product width in2.000
Product width mm50.8
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR276
Working pressure max PSI4000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87341-20-16Z: frequently asked questions

When can 87341-20-16Z be shipped?

87341-20-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87341-20-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87341-20-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87341-20-16Z, subject to availability and destination.
