Danfoss 87341-16-16Z

HOSE NIPPLE, 2P/16, C61/16, CS, 45D

MPN
87341-16-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

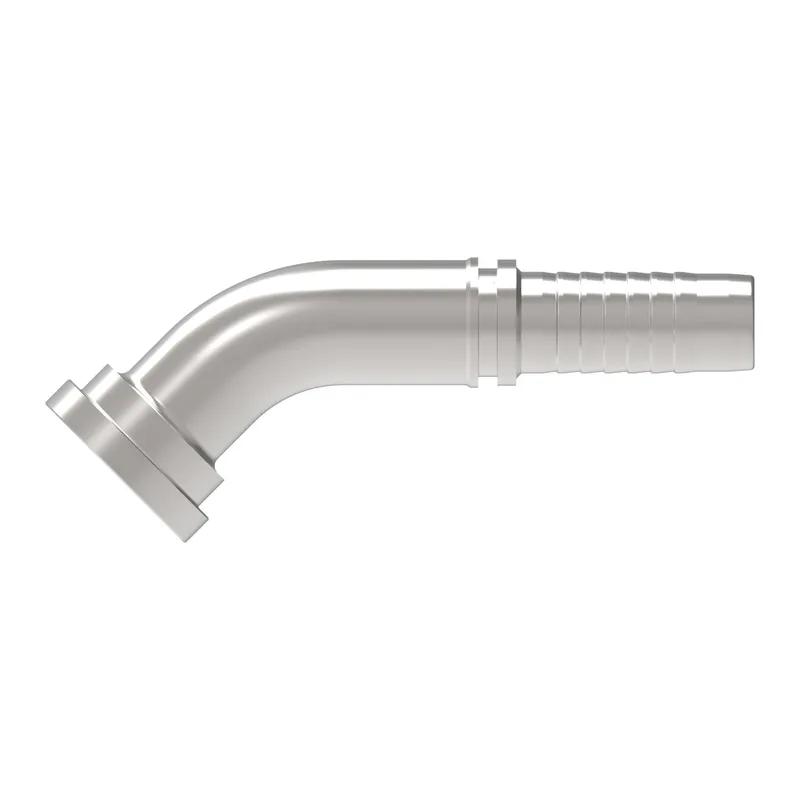

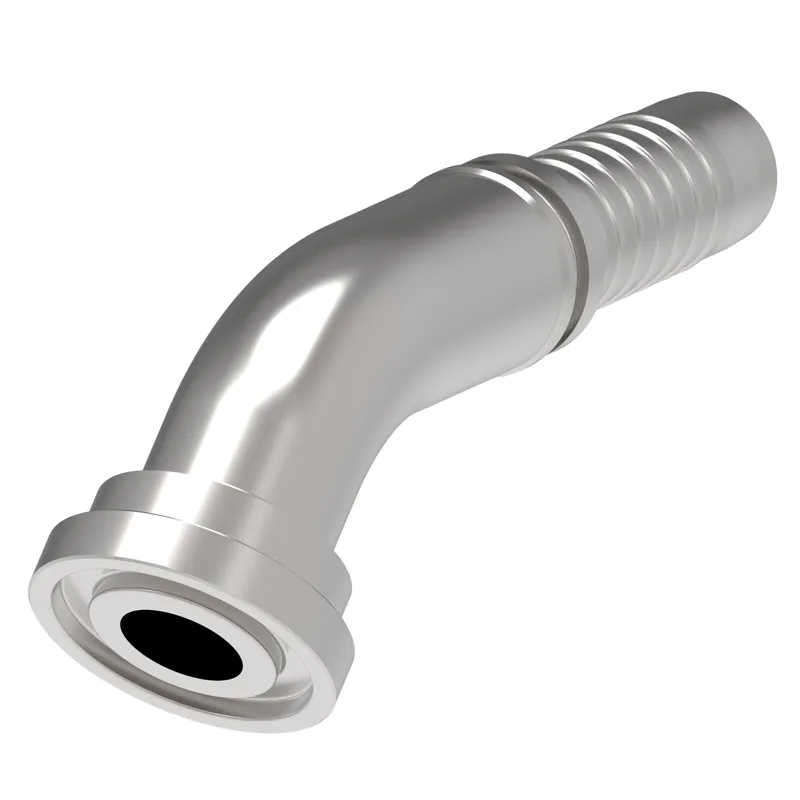

What is the Danfoss 87341-16-16Z?

Danfoss HOSE NIPPLE, 2P/16, C61/16, CS, 45D, manufacturer part number 87341-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.519
A dimension MM97.000
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
Drop dimension IN1.137
Drop dimension MM28.90
End size 1-16
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN3.003
Hose cut off factor MM76.300
Hose size-16
Inside diameter IN0.590
Inside diameter MM15.000
Product height in2.870
Product height mm72.898
Product length in6.020
Product length mm152.908
Product materialCarbon steel
Product width in1.750
Product width mm44.45
Proposition 65Cancer and Reproductive Harm
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
