Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | A dimension IN | A dimension MM | Hose cut off factor IN | Product length in | Product length mm |
|---|---|---|---|---|---|
| 87311Y-24-20Z | 4.803 | 122.000 | 2.677 | 4.803 | 122.001 |
| 87311Y-20-20Z | 4.409 | 112.000 | 2.283 | 4.410 | 112.001 |
| 87311Y-20-16Z | 4.094 | 104.000 | 2.244 | 4.095 | 104.000 |
| 87311Y-16-16Z | 3.897 | 99.000 | 2.047 | 3.898 | 98.999 |
| 87311Y-16-16RZ | 3.897 | 99.000 | 2.047 | 3.898 | 98.999 |
| 87311Y-16-12Z | 3.523 | 89.500 | 2.007 | 3.524 | 89.499 |
| 87311Y-12-12Z | 3.405 | 86.500 | 1.889 | 3.406 | 86.500 |
| 87311Y-08-08Z | 3.051 | 77.500 | 1.811 | 3.051 | 77.500 |
| 87311-48-48Z | 6.417 | 163.000 | 3.090 | 6.417 | 162.999 |
| 87311-40-48Z | 6.496 | 165.000 | 3.169 | 6.496 | 165.001 |
| 87311-40-40Z | 6.220 | 158.000 | 2.992 | 6.221 | 158.001 |
| 87311-40-40SR | 6.220 | 158.000 | 2.992 | 6.221 | 158.001 |
| 87311-40-40RZ | 6.220 | 158.000 | 2.992 | 6.221 | 158.001 |
| 87311-40-38FAZ | 5.826 | 148.000 | 2.992 | 5.826 | 147.980 |
| 87311-40-32Z | 5.708 | 145.000 | 2.874 | 5.709 | 145.001 |
| 87311-32-40FASV | — | — | 3.031 | 6.260 | 158.999 |
| 87311-32-32ZN | 5.590 | 142.000 | 2.755 | 5.591 | 142.001 |

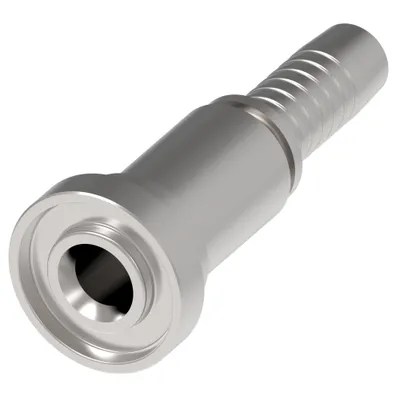

| 87311-32-32Z | 5.590 | 142.000 | 2.755 | 4.843 | 123.000 |
| 87311-32-32SR | 5.590 | 142.000 | 2.755 | 4.843 | 123.000 |
| 87311-32-20Z | 4.881 | 124.000 | 2.755 | 4.882 | 124.000 |
| 87311-24-24ZN | 5.354 | 136.000 | 2.677 | 5.350 | 135.890 |
| 87311-24-24SV | 5.354 | 136.000 | 2.677 | 5.354 | 135.999 |
| 87311-24-24SR | 5.354 | 136.000 | 2.677 | 5.354 | 135.999 |
| 87311-24-20Z | 4.803 | 122.000 | 2.677 | 4.803 | 122.001 |
Common to all listed parts
| Angle shape | Straight |
| Construction Style | Crimp |
| Thread sealant | No |
