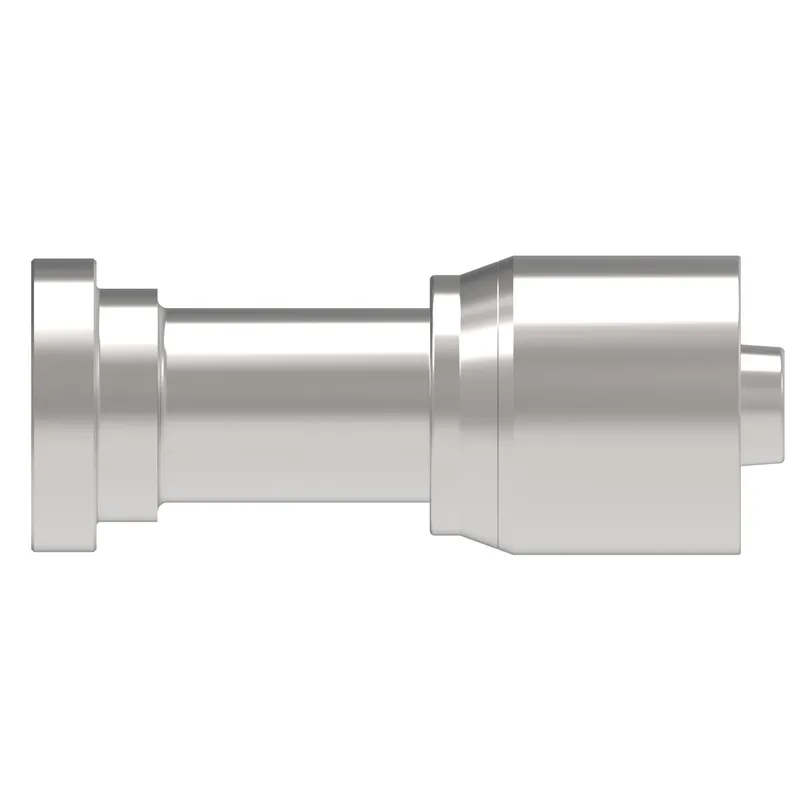

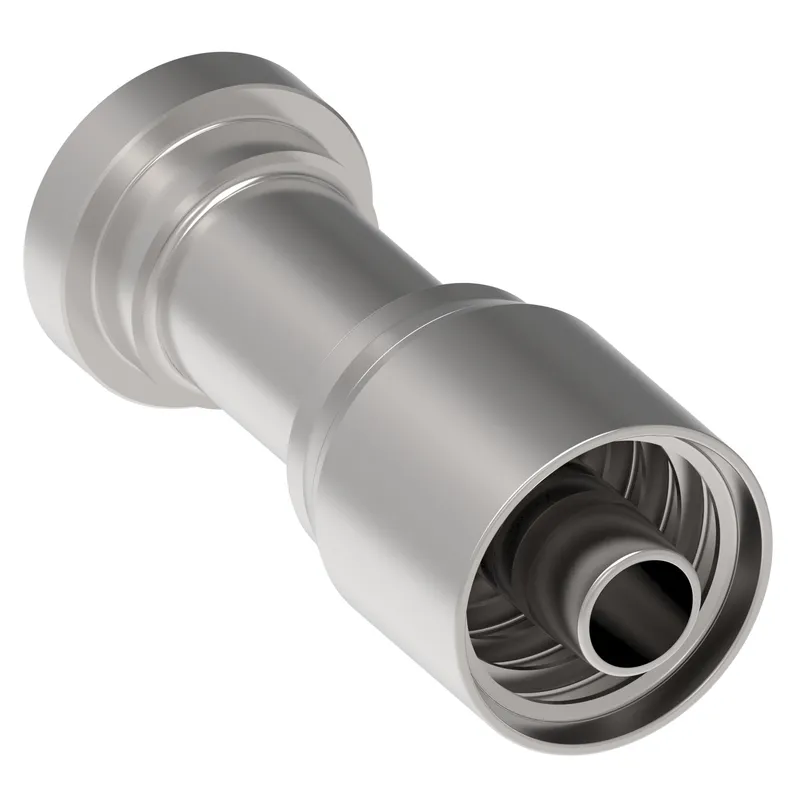

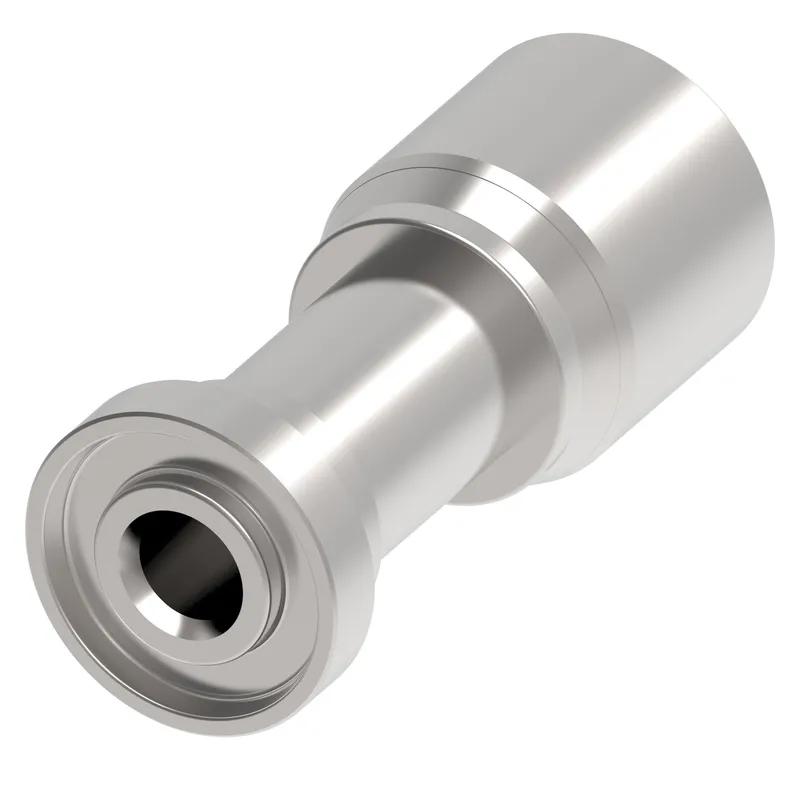

Danfoss 87311Y-24-24RSV

HOSE NIPPLE ASSY, 1P/24, C61/24, AP, STR

MPN
87311Y-24-24RSV
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311Y-24-24RSV?

Danfoss HOSE NIPPLE ASSY, 1P/24, C61/24, AP, STR, manufacturer part number 87311Y-24-24RSV. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.354
A dimension MM136.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.500
Compatible hose ID MM38.100
Compatible hosesH0554
Construction StyleCrimp
End size 1-24
End size 2-24
End Type 1Split flange code 61
End Type 2Line/hose/tube
Hose cut off factor IN2.677
Hose cut off factor MM68.000
Hose size-24
Inside diameter IN1.259
Inside diameter MM32.000
Product height in2.638
Product height mm67.000
Product length in5.354
Product length mm135.999
Product material316L Stainless steel
Product width in2.638
Product width mm67
Thread sealantNo
Working pressure max BAR206
Working pressure max PSI2950
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87311Y-24-24RSV: frequently asked questions

When can 87311Y-24-24RSV be shipped?

87311Y-24-24RSV is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87311Y-24-24RSV in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87311Y-24-24RSV and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87311Y-24-24RSV, subject to availability and destination.
