Braided hose and fittings Parts

Danfoss

87311-24-20SV

HOSE NIPPLE ASSY, 2P/20, C61/24, AP, STR

Danfoss

87311-20-24Z

HOSE NIPPLE ASSY, 2P/24, C61/20, CS, STR

Danfoss

87311-20-20SV

HOSE NIPPLE ASSY, 2P/20, C61/20, AP, STR

Danfoss

87311-16-16Z

HOSE NIPPLE ASSY, 2P/16, C61/16, CS, STR

Danfoss

87311-16-16SV

HOSE NIPPLE ASSY, 2P/16, C61/16, AP, STR

Danfoss

87311-16-16SR

HOSE NIPPLE ASSY, 2P/16, C61/16, AN, STR

Danfoss

87311-16-12SR

HOSE NIPPLE ASSY, 2P/12, C61/16, AN, STR

Danfoss

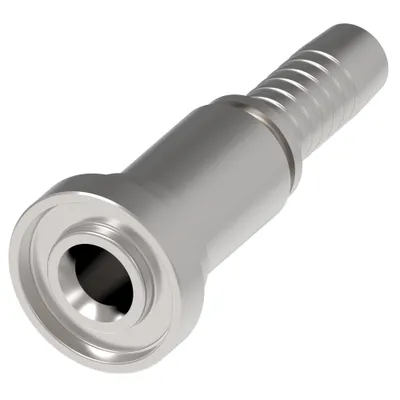

87311-12-16Z

HOSE NIPPLE ASSY, 2P/16, C61/12, CS, STR

Danfoss

87311-12-12Z

HOSE NIPPLE ASSY, 2P/12, C61/12, CS, STR

Danfoss

87311-12-12SR

HOSE NIPPLE ASSY, 2P/12, C61/12, AN, STR

Danfoss

87311-12-10Z

HOSE NIPPLE ASSY, 2P/10, C61/12, CS, STR

Danfoss

87311-12-10SR

HOSE NIPPLE ASSY, 2P/10, C61/12, AN, STR

Danfoss

87311-12-08Z

HOSE NIPPLE ASSY, 2P/08, C61/12, CS, STR

Danfoss

87311-12-08SR

HOSE NIPPLE ASSY, 2P/08, C61/12, AN, STR

Danfoss

87311-08-08Z

HOSE NIPPLE ASSY, 2P/08, C61/08, CS, STR

Danfoss

87311-08-08SR

HOSE NIPPLE ASSY, 2P/08, C61/08, AN, STR

Danfoss

72011Y-04-04Z

HOSE NIPPLE ASSY,1P/04,BANJO/04,CS,STR

Danfoss

72011-12-12Z

HOSE NIPPLE ASSY,2P/12,BANJO/12,CS,STR

Danfoss

72011-10-10Z

HOSE NIPPLE ASSY,2P/10,BANJO/10,CS,STR

Danfoss

72011-08-08Z

HOSE NIPPLE ASSY,2P/08,BANJO/08,CS,STR

Danfoss

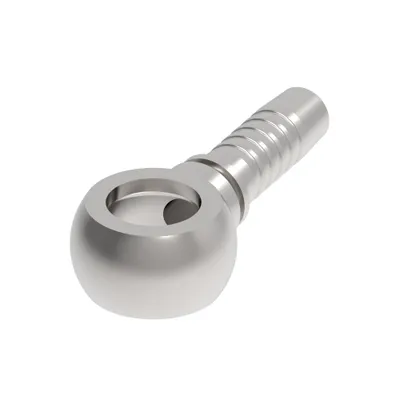

72011-08-06Z

HOSE NIPPLE ASSY,2P/06,BANJO/08,CS,STR

Danfoss

72011-06-06Z

HOSE NIPPLE ASSY,2P/06,BANJO/06,CS,STR

Danfoss

72011-06-04Z

HOSE NIPPLE ASSY,2P/04,BANJO/06,CS,STR

Danfoss

72011-04-06Z

HOSE NIPPLE ASSY,2P/06,BANJO/04,CS,STR

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	A dimension IN	A dimension MM	Hose cut off factor IN	Product length in	Product length mm
87311-24-20SV	4.803	122.000	2.677	4.803	122.001
87311-20-24Z	5.078	129.000	2.401	5.079	128.999
87311-20-20SV	4.409	112.000	2.283	4.410	112.001
87311-16-16Z	3.897	99.000	2.047	3.900	99.060
87311-16-16SV	3.897	99.000	2.047	3.898	98.999
87311-16-16SR	3.897	99.000	2.047	3.898	98.999
87311-16-12SR	3.523	89.500	2.007	3.524	89.499
87311-12-16Z	3.779	96.000	1.929	3.780	95.999
87311-12-12Z	3.405	86.500	1.889	3.410	86.614
87311-12-12SR	3.405	86.500	1.889	3.406	86.500
87311-12-10Z	3.208	81.500	1.870	3.209	81.501
87311-12-10SR	3.208	81.500	1.870	3.209	81.501
87311-12-08Z	3.090	78.500	1.850	3.091	78.501
87311-12-08SR	3.090	78.500	1.850	3.091	78.501
87311-08-08Z	3.051	77.500	1.811	3.051	77.500
87311-08-08SR	3.051	77.500	1.811	3.051	77.500
72011Y-04-04Z	1.870	47.500	0.767	2.340	59.436
72011-12-12Z	2.775	70.500	1.259	3.720	94.501
72011-10-10Z	2.519	64.000	1.181	3.307	84.000
72011-08-08Z	2.342	59.500	1.102	2.342	59.499
72011-08-06Z	2.263	57.500	1.082	3.010	76.454
72011-06-06Z	2.047	52.000	0.866	2.047	51.999
72011-06-04Z	1.968	50.000	0.866	2.638	67.000
72011-04-06Z	1.948	49.500	0.767	2.420	61.468

Common to all listed parts

Angle shape	Straight
Construction Style	Crimp
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
