Danfoss 87311Y-32-32ZN

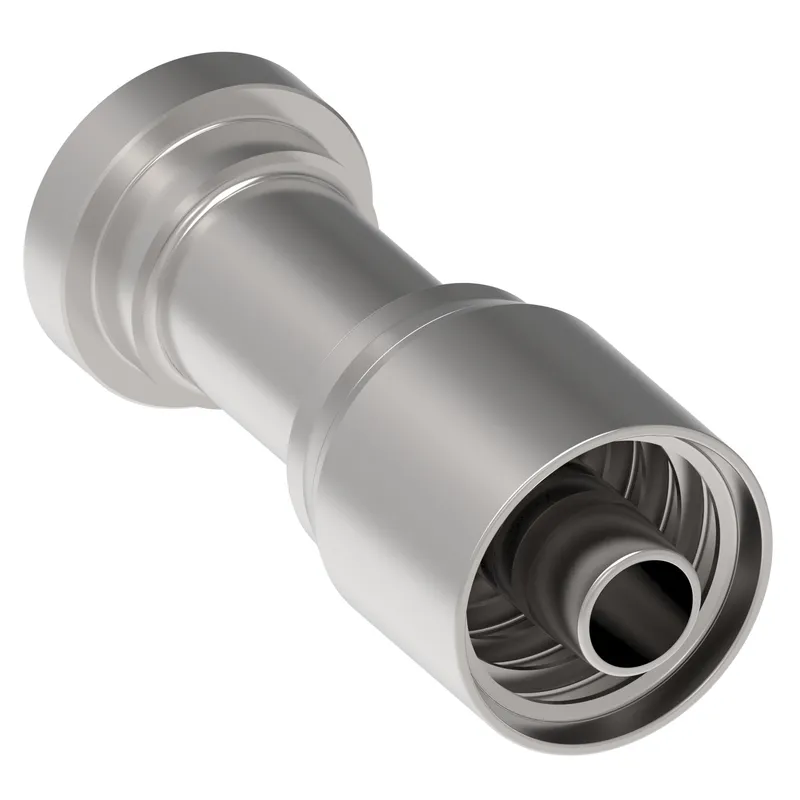

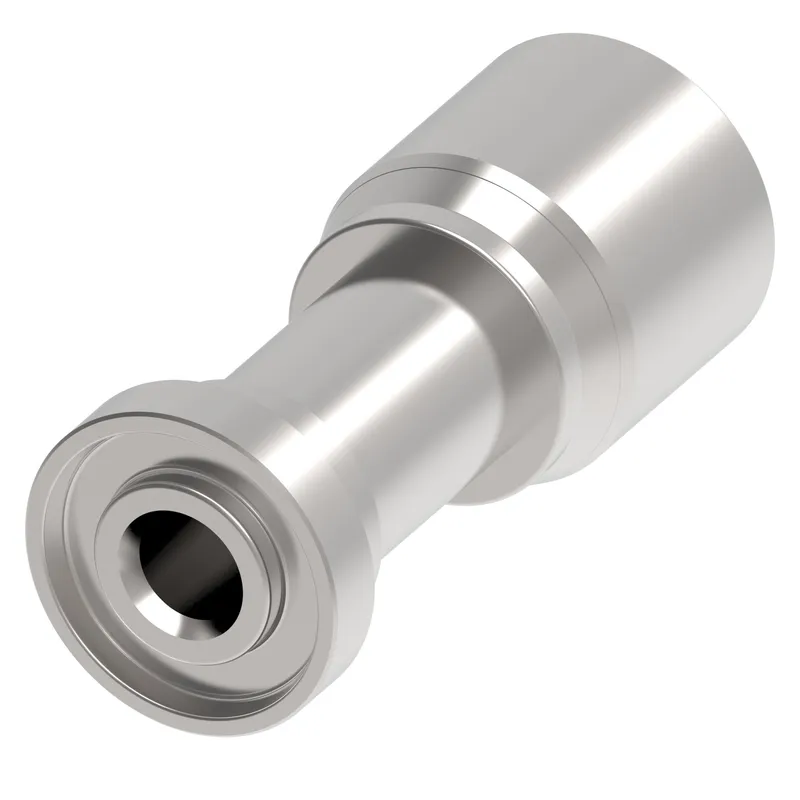

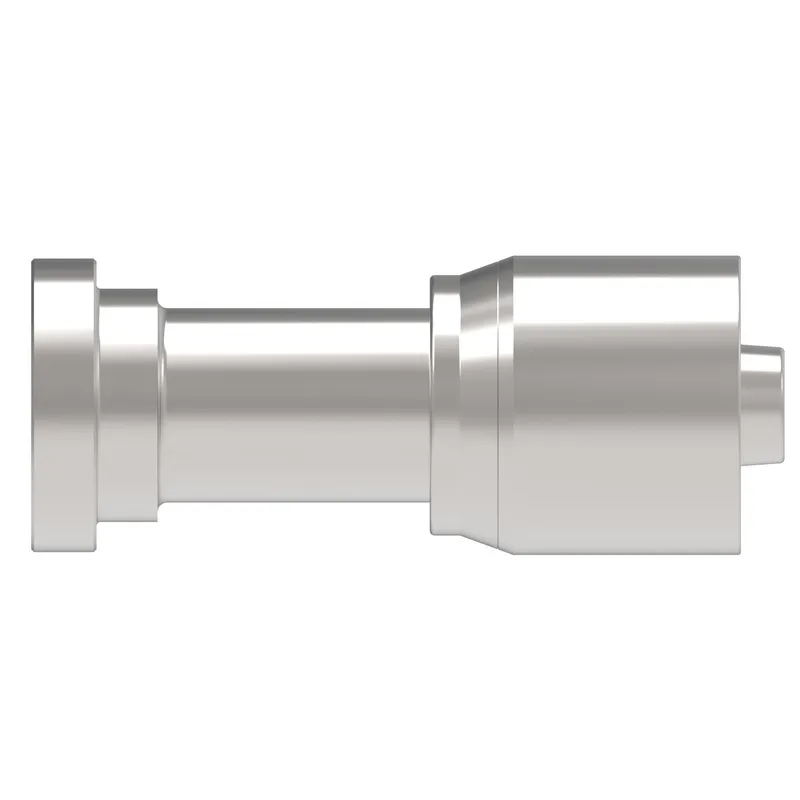

HOSE NIPPLE ASSY, 1P/32, C61/32, CS, STR

MPN
87311Y-32-32ZN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87311Y-32-32ZN?

Danfoss HOSE NIPPLE ASSY, 1P/32, C61/32, CS, STR, manufacturer part number 87311Y-32-32ZN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.590
A dimension MM142.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN2.000
Construction StyleCrimp
End size 1-32
End Type 1Split flange code 61
Finish platingZinc nickel
Hose cut off factor IN2.755
Hose cut off factor MM70.000
Inside diameter IN1.692
Inside diameter MM43.000
Product height in3.150
Product height mm80.010
Product length in5.590
Product length mm141.986
Product materialCarbon steel
Product width in3.150
Product width mm80.01
Thread sealantNo
Working pressure max BAR206
Working pressure max PSI3000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

87311Y-32-32ZN: frequently asked questions

When can 87311Y-32-32ZN be shipped?

87311Y-32-32ZN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87311Y-32-32ZN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87311Y-32-32ZN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87311Y-32-32ZN, subject to availability and destination.
