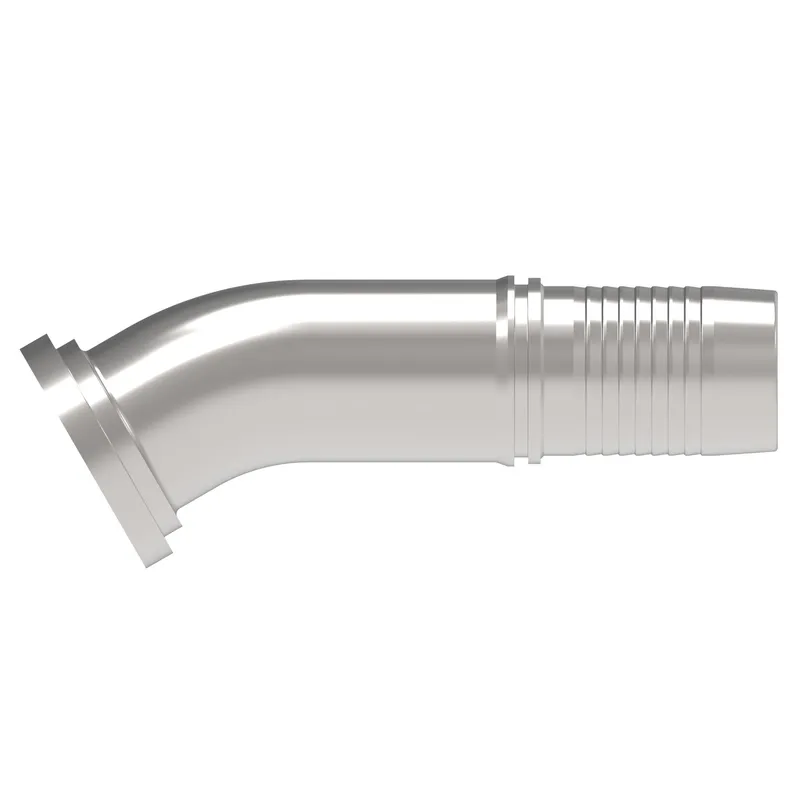

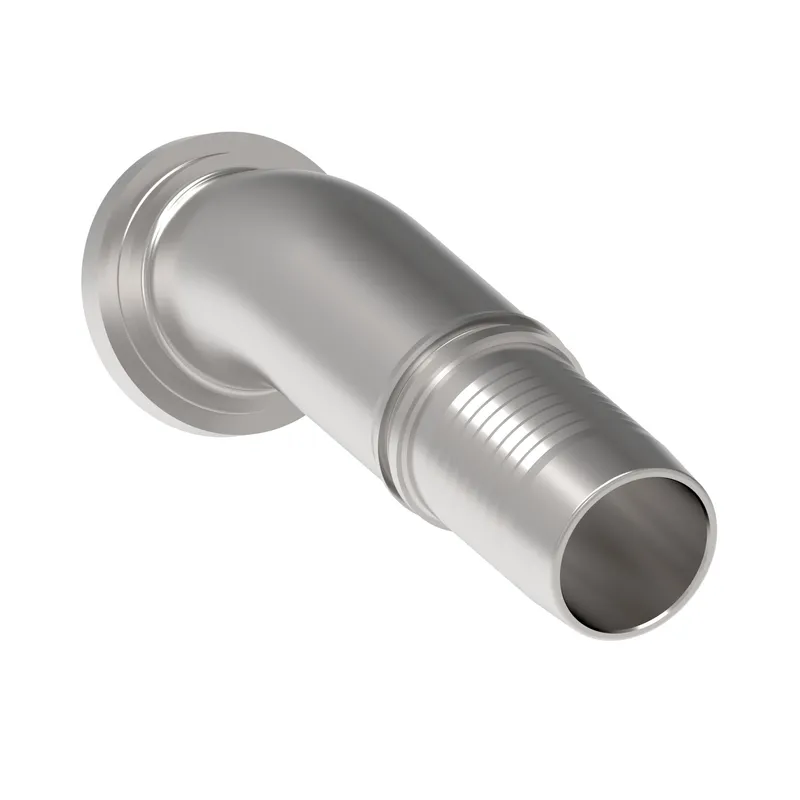

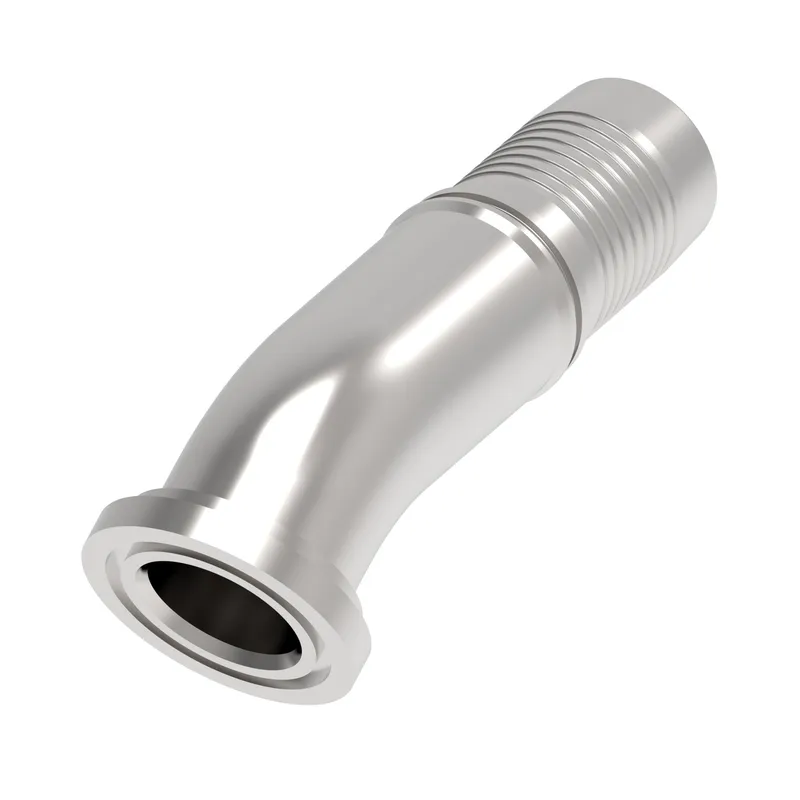

Danfoss 87331-16-16Z

HOSE NIPPLE, 2P/16, C61/16, CS, 30D

MPN
87331-16-16Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 87331-16-16Z?

Danfoss HOSE NIPPLE, 2P/16, C61/16, CS, 30D, manufacturer part number 87331-16-16Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.448
A dimension MM138.400
Angle shape30 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
Drop dimension IN0.700
Drop dimension MM17.80
End size 1-16
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN3.598
Hose cut off factor MM91.400
Hose size-16
Inside diameter IN0.826
Inside diameter MM21.000
Product height in2.205
Product height mm55.999
Product length in5.449
Product length mm138.400
Product materialCarbon steel
Product width in1.748
Product width mm44.399
Thread sealantNo
Working pressure max BAR345
Working pressure max PSI5000

87331-16-16Z: frequently asked questions

When can 87331-16-16Z be shipped?

87331-16-16Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87331-16-16Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87331-16-16Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87331-16-16Z, subject to availability and destination.
