Terminal blocks Parts

B&R

0TB2104.4022

Accessory terminal block, 4-pin, AX2

B&R

0TB2105.4021

Accessory terminal block, 5-pin, AX1

B&R

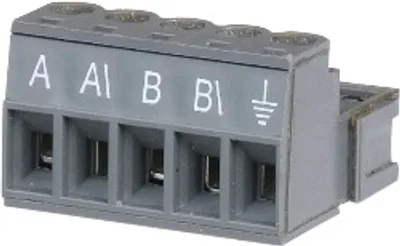

0TB2105.4022

Accessory terminal block, 5-pin, AX2

B&R

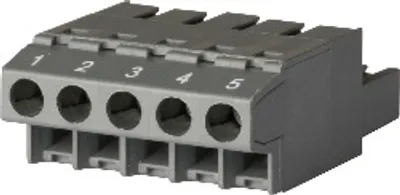

0TB2105.9010

The single-row 5-pin terminal block 0TB2105 is as the…

B&R

0TB2105.9110

The single-row 5-pin terminal block 0TB2105 is as the…

B&R

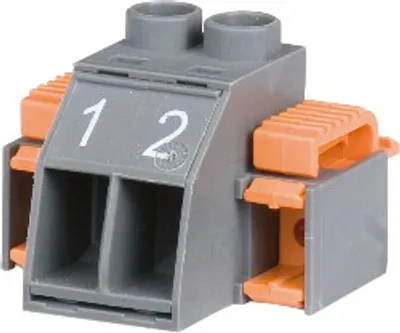

0TB3102-7011

Accessory terminal block, 2-pin, A-coded

B&R

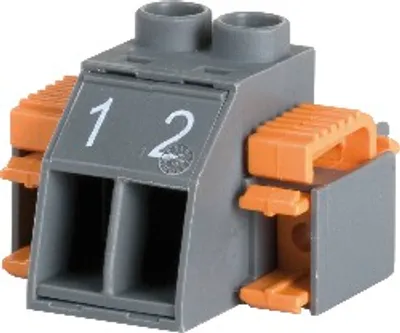

0TB3102-7012

The single row 2-pin terminal block 0TB3102 is for…

B&R

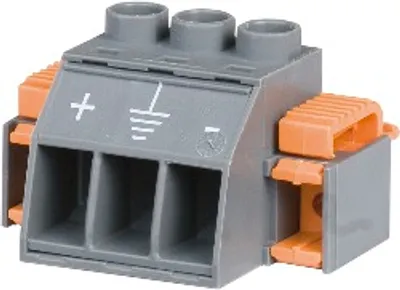

0TB3103-7020

The single row, 3-pin terminal block 0TB3103 is for…

B&R

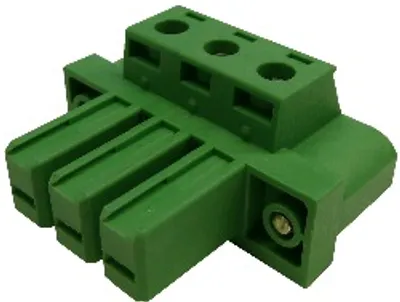

0TB3103.8000

This single row 3-pin terminal block is to connect the…

B&R

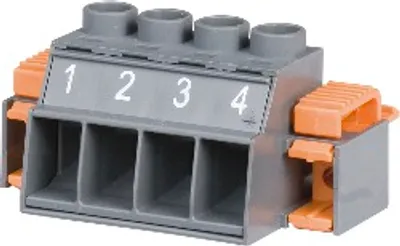

0TB3104-7010

Accessory terminal block, 4-pin

B&R

0TB3104-7011

The single row 4-pin terminal block 0TB3104 is for…

B&R

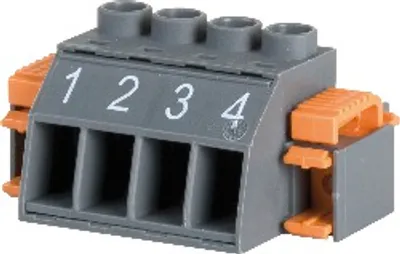

0TB3104-7012

The single row 4-pin terminal block 0TB3104 is for…

B&R

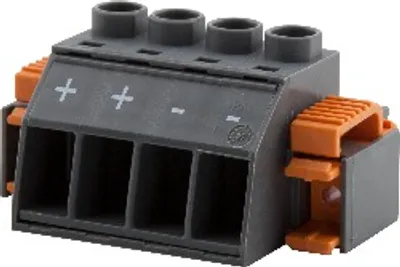

0TB3104-7021

Accessory terminal block, 4-pin

B&R

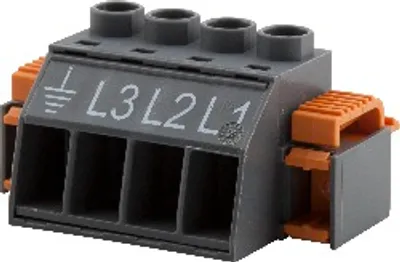

0TB3104-7022

Accessory terminal block, 4-pin

B&R

0TB704.9

The single-row 4-pin terminal block 0TB704 is as the…

B&R

0TB704.91

The single-row 4-pin terminal block 0TB704 is as the…

B&R

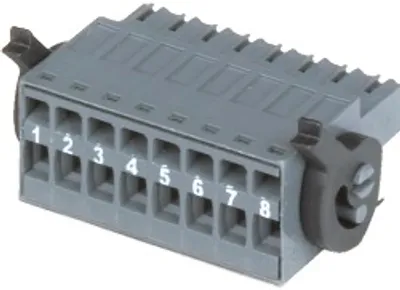

0TB708.91

The single-row 8-pin terminal block TB708/TB1108 is …

B&R

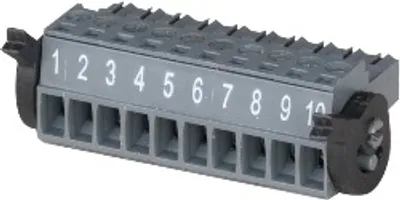

0TB710.90

Accessory terminal block, 10-pin

B&R

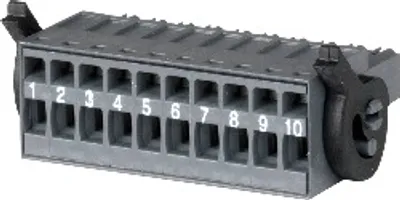

0TB710.91

The single row 10-pin terminal block 0TB710 is for…

B&R

3TB170.9

Accessories, 20-pin terminal block

B&R

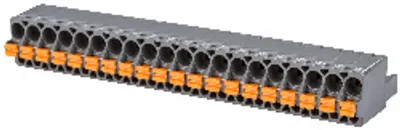

3TB170.91

Accessories, 20-pin terminal block

B&R

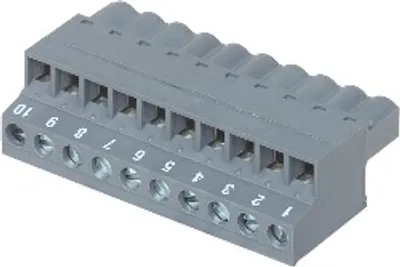

7TB710.9

The single row 10-pin terminal block TB710 is for…

B&R

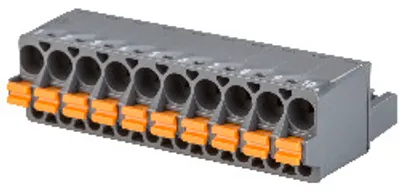

7TB710.91

The single row 10-pin terminal block TB710 is for…

B&R

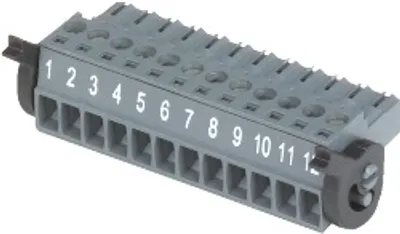

7TB712.9

The single-row, 12-pin 7TB712 terminal block is to…

Compare Terminal blocks

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Connection cross section – AWG wire	Connection cross section – Wire end sleeves with plastic covering	Connection cross section – Fine-stranded wires	Number of pins	Contact resistance
0TB2104.4022	26 to 12 AWG	0.25 to 2.50 mm²	0.20 to 2.50 mm²	4	≤2 mΩ
0TB2105.4021	26 to 12 AWG	0.25 to 2.50 mm²	0.20 to 2.50 mm²	5	≤2 mΩ
0TB2105.4022	26 to 12 AWG	0.25 to 2.50 mm²	0.20 to 2.50 mm²	5	≤2 mΩ
0TB2105.9010	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 1.50 mm²	5	≤5 mΩ
0TB2105.9110	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	5	≤5 mΩ
0TB3102-7011	22 to 10 AWG	0.25 to 4 mm²	0.20 to 6 mm²	2	≤4.5 mΩ
0TB3102-7012	22 to 10 AWG	0.25 to 4 mm²	0.20 to 6 mm²	2	≤4.5 mΩ
0TB3103-7020	22 to 10 AWG	0.25 to 4 mm²	0.20 to 6 mm²	3	≤4.5 mΩ
0TB3103.8000	24 to 10 AWG	0.25 to 4 mm²	—	3 (male)	—
0TB3104-7010	22 to 10 AWG	0.25 to 6 mm²	0.50 to 6 mm²	4	≤4.5 mΩ
0TB3104-7011	22 to 10 AWG	0.25 to 4 mm²	0.20 to 6 mm²	4	≤4.5 mΩ
0TB3104-7012	22 to 10 AWG	0.25 to 4 mm²	0.20 to 6 mm²	4	≤4.5 mΩ
0TB3104-7021	22 to 10 AWG	0.25 to 6 mm²	0.50 to 6 mm²	4	≤4.5 mΩ
0TB3104-7022	22 to 10 AWG	0.25 to 6 mm²	0.50 to 6 mm²	4	≤4.5 mΩ
0TB704.9	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 1.50 mm²	4	≤5 mΩ
0TB704.91	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	4	≤5 mΩ
0TB708.91	26 to 14 AWG	0.20 to 1.00 mm²	0.20 to 1.50 mm²	8	≤4.2 mΩ
0TB710.90	26 to 14 AWG	0.20 to 1.00 mm²	0.20 to 1.50 mm²	10	≤4.2 mΩ
0TB710.91	26 to 14 AWG	0.20 to 1.00 mm²	0.20 to 1.50 mm²	10	≤4.2 mΩ
3TB170.9	24 to 12 AWG	0.20 to 2.50 mm²	0.20 to 2.50 mm²	—	≤2 mΩ
3TB170.91	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	—	≤5 mΩ
7TB710.9	24 to 12 AWG	0.25 to 2.50 mm²	0.20 to 2.50 mm²	10	≤2 mΩ
7TB710.91	26 to 12 AWG	0.20 to 1.50 mm²	0.20 to 2.50 mm²	10	≤5 mΩ
7TB712.9	28 to 14 AWG	0.20 to 1.50 mm²	0.20 to 1.50 mm²	12	≤4.2 mΩ
