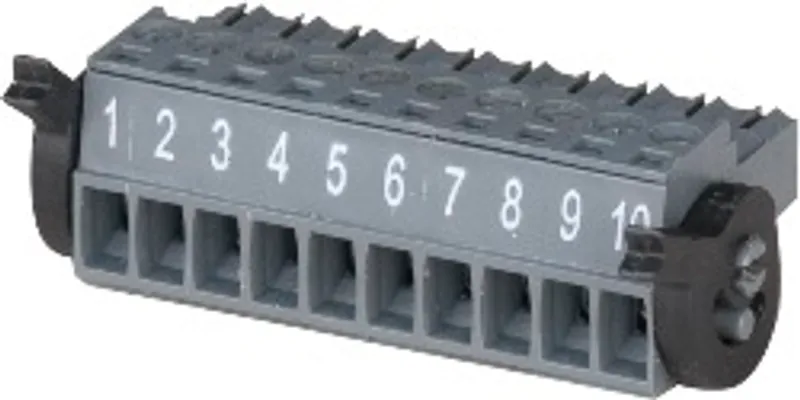

B&R 0TB710.90

Accessory terminal block, 10-pin

MPN: 0TB710.90
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0TB710.90?

Accessory terminal block, 10-pin, screw clamp terminal block 1.5 mm²

Specifications

General information

Certifications – CE	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable

Terminal block

Connection cross section – AWG wire	26 to 14 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.00 mm²
Connection cross section – Single-wire	0.20 to 1.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 1.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.50 mm²
Note	Mechanical removal aid ; Nominal data per UL
Number of pins	10
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	3.5 mm
Wire stripping length	6 mm

Electrical properties

Nominal voltage	300 V
Nominal current	10 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤4.2 mΩ

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet 0TB710.9xPDF · 585 KB · 1.00 (11/29/2022) - EN
