Home / Accessories / Terminal blocks

Terminal blocks Parts

B&R

0TB1102.2100-01

Accessory terminal block, 2-pin

B&R

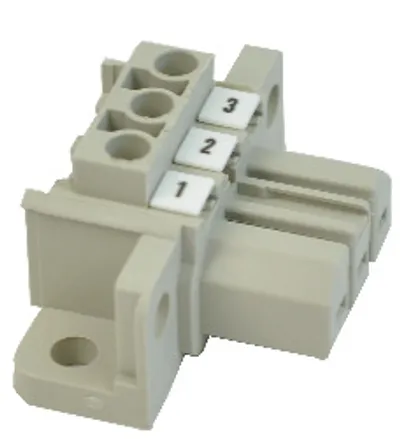

0TB7103.7010

Connector 230 VAC, 3-pin female

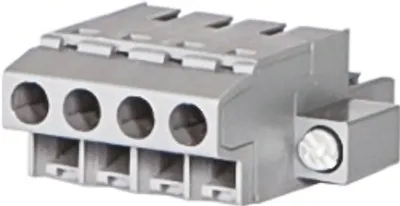

B&R

0TB2104.8000

Connector 24 VDC, 4-pin female

B&R

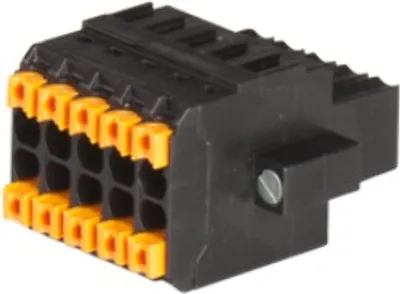

0TB1210.3100

Two-row 10-pin terminal block is to…

B&R

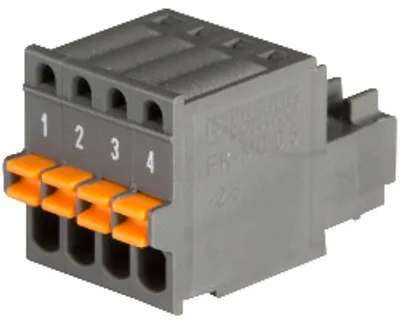

0TB5104.2110-01

Accessory terminal block, 4-pin (2.5)

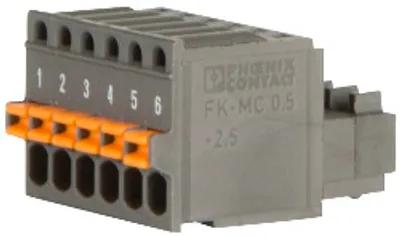

B&R

0TB5106.2110-01

Accessory terminal block, 6-pin (2.5)

B&R

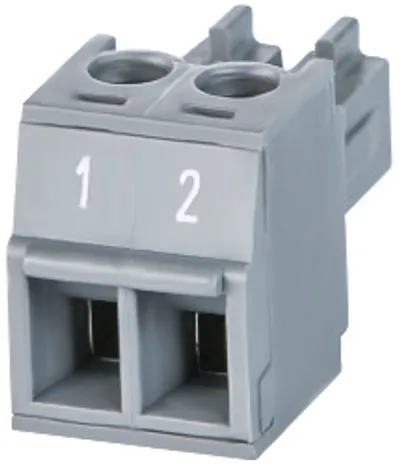

0TB6102.2010-01

Accessory terminal block, 2-pin (3.81)

B&R

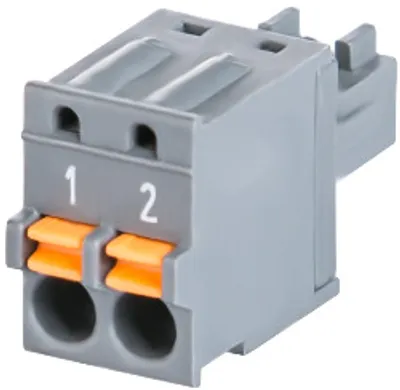

0TB6102.2110-01

Accessory terminal block, 2-pin (3.81)

B&R

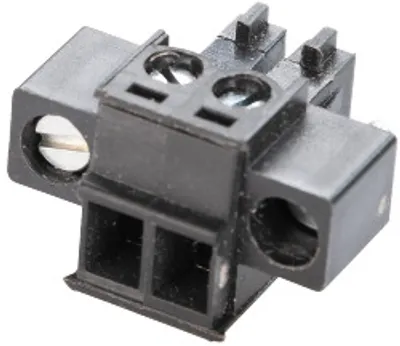

0TB6102.3000-00

2-pin accessory screw clamp terminal block (3.81)

B&R

0TB6102.3100-00

Accessory 2-pin cage clamp terminal block (3.81)

B&R

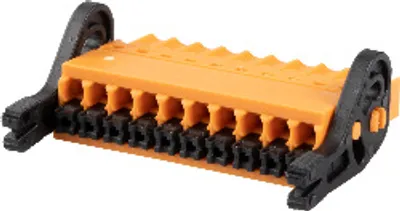

0TB710.92

Accessory terminal block, 10-pin

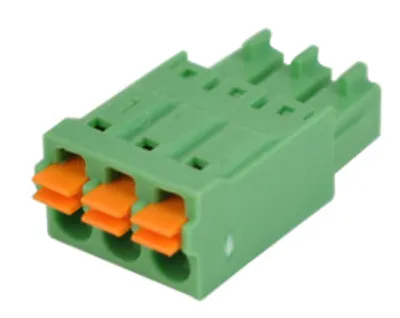

B&R

0TB6103.4100

This 1-row, 3-pin terminal block is to connect to…

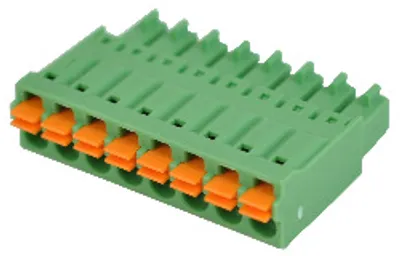

B&R

0TB6108.4100

This 1-row, 8-pin terminal block is to connect to…

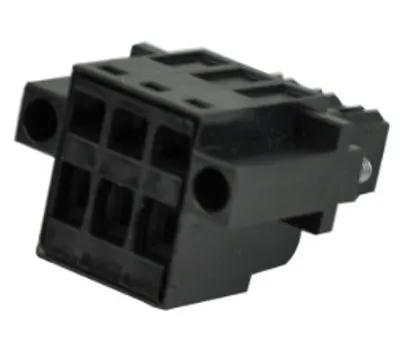

B&R

0TB703.81

This 1-row, 3-pin terminal block is to connect to…

B&R

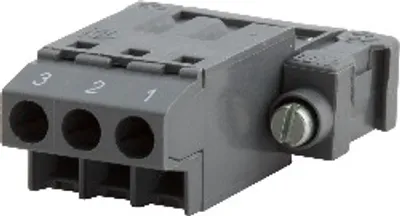

0TB103.3

Accessory terminal block, 3-pin male

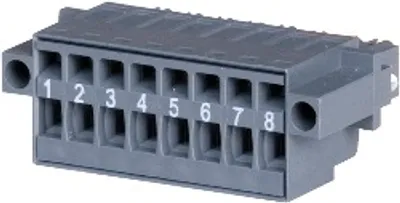

B&R

0TB1108.8110

The single-row 8-pin terminal block TB708/TB1108 is …

B&R

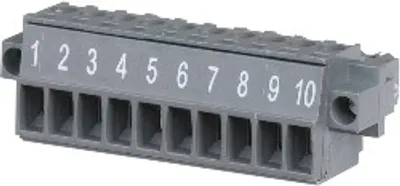

0TB1110.8010

The single-row, 10-pin 0TB1110 terminal block is to…

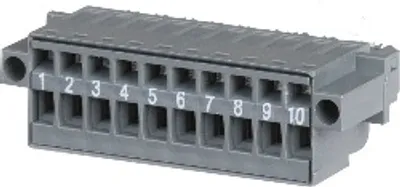

B&R

0TB1110.8110

The single-row, 10-pin 0TB1110 terminal block is to…

B&R

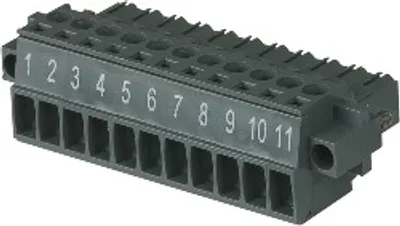

0TB1111.8010

The single-row 11-pin 0TB1111 screw clamp is to…

B&R

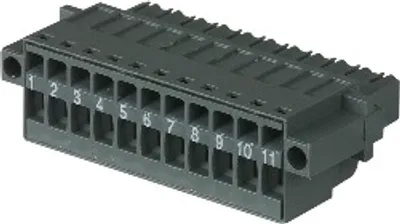

0TB1111.8110

The single-row 11-pin 0TB1111 screw clamp is to…

B&R

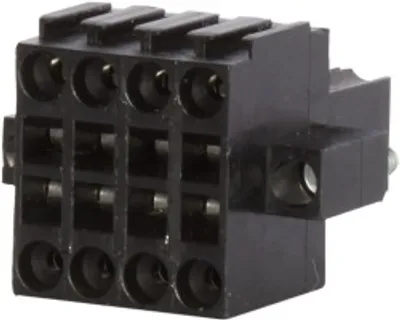

0TB1208.3100

The 2-row 8-pin terminal block TB1208 is to connect to…

B&R

0TB2102.4021

Accessory terminal block, 2-pin, AX1

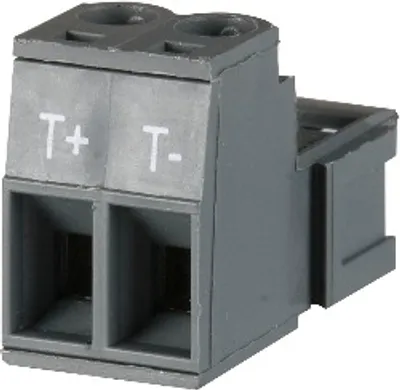

B&R

0TB2102.4022

Accessory terminal block, 2-pin, AX2

B&R

0TB2104.4021

Accessory terminal block, 4-pin, AX1

Compare Terminal blocks

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Connection cross section – AWG wire	Connection cross section – Single-wire	Number of pins	Connection cross section – Wire end sleeves with plastic covering	Connection cross section – With wire end sleeve
0TB1102.2100-01	28 - 16 AWG	0.20 to 1.50 mm²	2	—	—
0TB7103.7010	12 to 22 AWG	0.5 to 4 mm²	3	0.5 to 4 mm²	0.5 to 4 mm²
0TB2104.8000	26 to 14 AWG	0.2 to 2.5 mm²	4 (female)	0.2 to 1.5 mm²	0.2 to 1.5 mm²
0TB1210.3100	26 to 16 AWG	0.14 to 1.5 mm²	10 (female)	0.14 to 1 mm²	0.14 to 1.5 mm²
0TB5104.2110-01	26 to 20	—	4	—	0.25 to 0.5 mm²
0TB5106.2110-01	26 to 20	—	6	—	0.25 to 0.5 mm²
0TB6102.2010-01	28 to 16	—	2 (female)	0.25 to 0.5 mm²	0.25 to 1.5 mm²
0TB6102.2110-01	28 to 16	—	2 (female)	0.25 to 0.5 mm²	0.25 to 1.5 mm²
0TB6102.3000-00	28 to 16	—	2 (female)	0.2 to 1.5 mm²	0.2 to 1.5 mm²
0TB6102.3100-00	28 to 16	—	2 (female)	0.25 to 0.5 mm²	0.25 to 1.5 mm²
0TB710.92	26 to 16 AWG	0.14 to 1.50 mm²	10	0.25 to 1.00 mm²	0.25 to 1.00 mm²
0TB6103.4100	16 to 24 AWG	0.20 to 1.50 mm²	3	0.25 to 0.75 mm²	0.25 to 1.5 mm²
0TB6108.4100	16 to 24 AWG	0.20 to 1.50 mm²	8	0.25 to 0.75 mm²	0.25 to 1.5 mm²
0TB703.81	26 to 14 AWG	0.20 to 1.50 mm²	3	0.20 to 1.00 mm²	0.20 to 1.50 mm²
0TB103.3	26 to 14 AWG	0.20 to 2.50 mm²	3 (male)	0.20 to 1.50 mm²	0.20 to 1.50 mm²
0TB1108.8110	26 to 14 AWG	0.20 to 1.50 mm²	8	0.20 to 1.00 mm²	0.20 to 1.50 mm²
0TB1110.8010	28 to 14 AWG	0.20 to 1.50 mm²	10	0.20 to 1.50 mm²	0.20 to 1.50 mm²
0TB1110.8110	26 to 14 AWG	0.20 to 1.50 mm²	10	0.20 to 1.00 mm²	0.20 to 1.50 mm²
0TB1111.8010	28 to 14 AWG	0.20 to 1.50 mm²	11	0.20 to 1.50 mm²	0.20 to 1.50 mm²
0TB1111.8110	26 to 14 AWG	0.20 to 1.50 mm²	11	0.20 to 1.00 mm²	0.20 to 1.50 mm²
0TB1208.3100	28 to 18 AWG	0.20 to 1 mm²	8 (female)	0.13 to 0.34 mm²	0.13 to 0.34 mm²
0TB2102.4021	26 to 12 AWG	0.20 to 2.50 mm²	2	0.25 to 2.50 mm²	0.20 to 2.50 mm²
0TB2102.4022	26 to 12 AWG	0.20 to 2.50 mm²	2	0.25 to 2.50 mm²	0.20 to 2.50 mm²
0TB2104.4021	26 to 12 AWG	0.20 to 2.50 mm²	4	0.25 to 2.50 mm²	0.20 to 2.50 mm²
