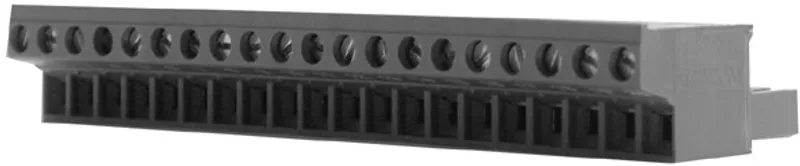

B&R 3TB170.9
Accessories, 20-pin terminal block
- MPN
- 3TB170.9
- Category
- Terminal blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 3TB170.9?
2005 terminal block, 20-pin, screw clamp terminal block
Specifications
Short description
| Accessories | 20-pin terminal block |
Terminal block
| Connection cross section – AWG wire | 24 to 12 AWG |
| Connection cross section – Wire end sleeves with plastic covering | 0.20 to 2.50 mm² |
| Connection cross section – Single-wire | 0.20 to 2.50 mm² |
| Connection cross section – Fine-stranded wires | 0.20 to 2.50 mm² |
| Connection cross section – With wire end sleeves | 0.20 to 2.50 mm² |
| Note | Nominal data per UL |
| Type of terminal block | Screw clamp terminal block variant |
| Cable type | Only copper wires (no aluminum wires!) |
| Pitch | 5.08 mm |
Electrical properties
| Nominal voltage | 300 V |
| Nominal current | 10 A / contact |
| Contact resistance | ≤2 mΩ |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
3TB170.9: frequently asked questions
When can 3TB170.9 be shipped?
3TB170.9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3TB170.9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3TB170.9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3TB170.9, subject to availability and destination.
