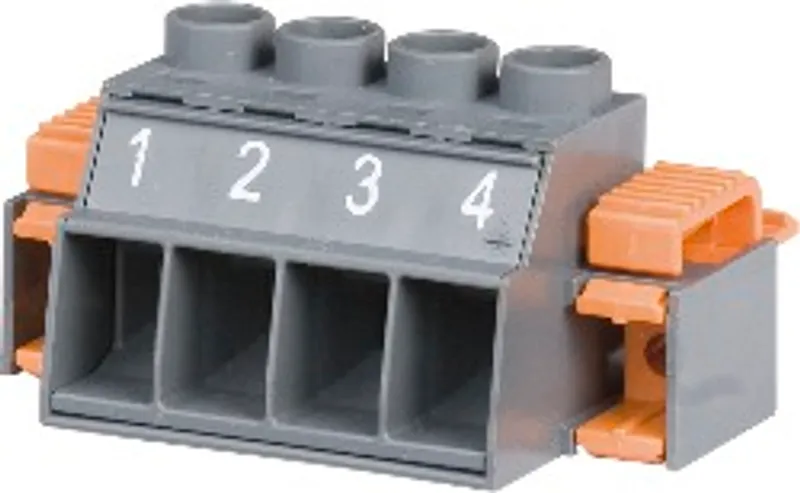

B&R 0TB3104-7010

Accessory terminal block, 4-pin

MPN: 0TB3104-7010
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare B&R parts? We buy surplus →

What is the B&R 0TB3104-7010?

Accessory terminal block, 4-pin, screw clamp terminal block 6 mm²

Specifications

Terminal block

Connection cross section – AWG wire	22 to 10 AWG
Connection cross section – Wire end sleeves with plastic covering	0.25 to 6 mm²
Connection cross section – Single-wire	0.20 to 6 mm²
Connection cross section – Fine-stranded wires	0.50 to 6 mm²
Connection cross section – With wire end sleeve	0.25 to 6 mm²
Note	Multifunction flange for secure, quick and tool-free locking ; Nominal data per UL
Number of pins	4
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	7.62 mm
Tightening torque	0.5 to 0.6 Nm

Electrical properties

Nominal voltage	600 V
Nominal current	31 A (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤4.5 mΩ

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

CAD & dimension drawings

3D File Step 0TB3104-7010ZIP · 194 KB · 1.00 (04/19/2024)

0TB3104-7010: frequently asked questions

When can 0TB3104-7010 be shipped?

0TB3104-7010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0TB3104-7010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0TB3104-7010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB3104-7010, subject to availability and destination.
