Home / B&R / Terminal blocks / B&R 0TB3103.8000

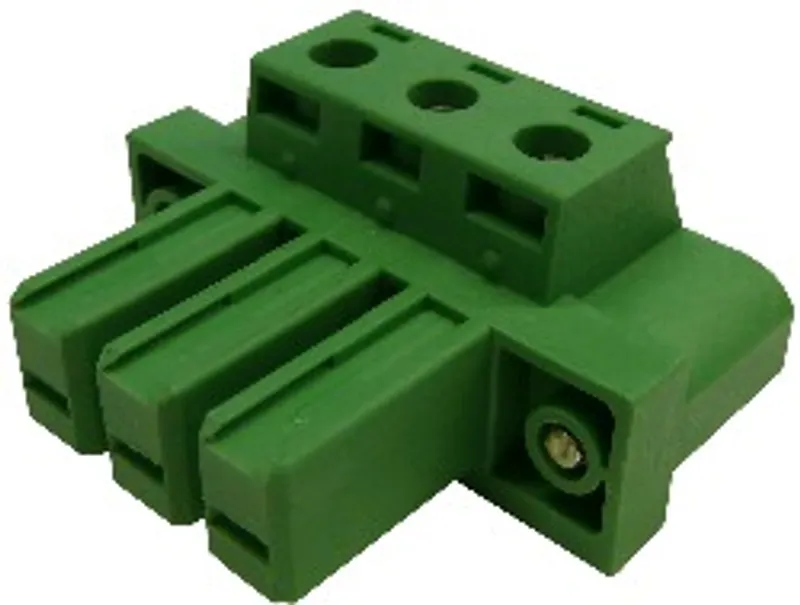

B&R 0TB3103.8000

This single row 3-pin terminal block is to connect the…

MPN: 0TB3103.8000
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 0TB3103.8000?

This single row 3-pin terminal block is used to connect the voltage supply.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cULus HazLoc E180196; Industrial control equipment; for hazardous locations; Class I, Division 2, Groups ABCD (note: Yes, but applies only if all components installed in the complete system have this certification and the complete system bears the corresponding mark.)

Terminal block

Connection cross section – AWG wire	24 to 10 AWG
Connection cross section – Wire end sleeves with plastic covering	0.25 to 4 mm²
Connection cross section – Flexible	0.2 to 4 mm²
Connection cross section – Inflexible	0.2 to 4 mm²
Note	Protected against vibration by the screw flange
Number of pins	3 (male)
Type of terminal block	Screw clamp terminal block variant
Pitch	7.62 mm
Tightening torque	0.5 to 0.6 Nm

Electrical properties

Nominal voltage	400 V
Nominal current	20 A

0TB3103.8000: frequently asked questions

When can 0TB3103.8000 be shipped?

0TB3103.8000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0TB3103.8000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0TB3103.8000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB3103.8000, subject to availability and destination.
