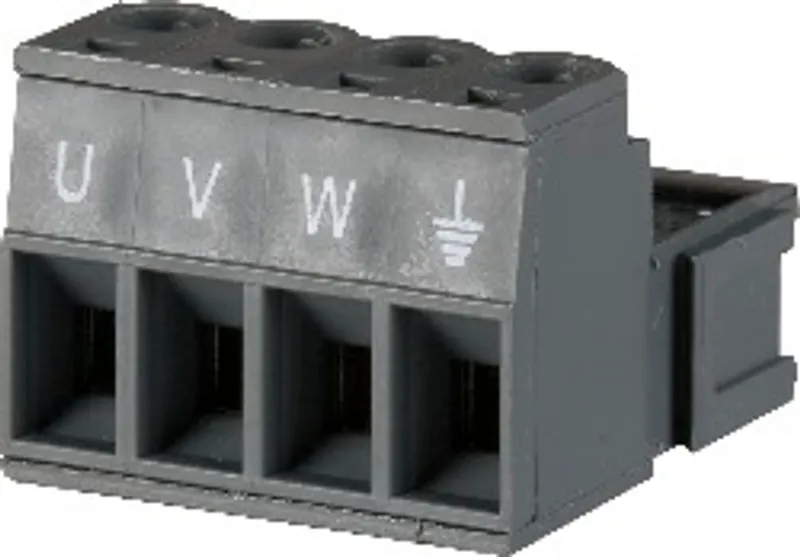

B&R 0TB2104.4022

Accessory terminal block, 4-pin, AX2

MPN: 0TB2104.4022
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0TB2104.4022?

Accessory terminal block, 4-pin, AX2, screw clamp terminal block 2.5 mm²

Specifications

Terminal block

Connection cross section – AWG wire	26 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering	0.25 to 2.50 mm²
Connection cross section – Single-wire	0.20 to 2.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 2.50 mm²
Connection cross section – With wire end sleeve	0.20 to 2.50 mm²
Note	Nominal data per UL
Number of pins	4
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	AX2
Pitch	5.08 mm
Tightening torque	0.4 to 0.5 Nm

Electrical properties

Nominal voltage	300 V
Nominal current	15 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤2 mΩ

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

CAD & dimension drawings

3D File Step 0TB2104.4022ZIP · 73 KB · 1.00 (09/04/2023)

Certificates (1)

EU Declaration ACOPOSmicroPDF · 201 KB · 2024-04 (04/23/2024)
