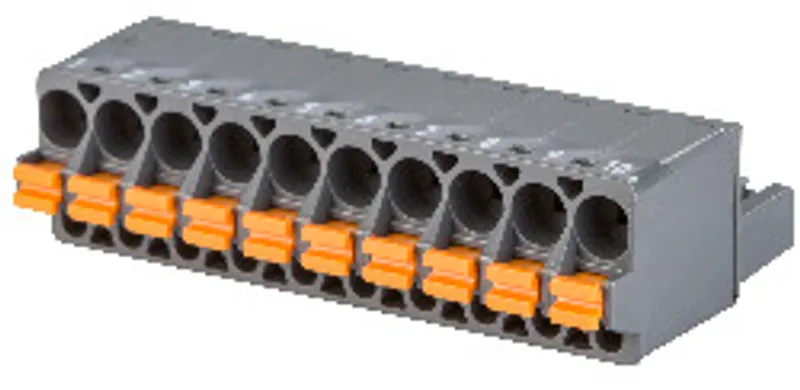

B&R 7TB710.91

The single row 10-pin terminal block TB710 is for…

MPN: 7TB710.91
Category: Terminal blocks

€15.90excl. VAT & shipping

In stock — 8 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 7TB710.91?

The single row 10-pin terminal block TB710 is used for making connections on various B&R I/O modules.

Specifications

Terminal block

Connection cross section – AWG wire	26 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 2.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 2.50 mm²
Connection cross section – With wire end sleeves	0.20 to 1.50 mm²
Note	Nominal data per UL
Number of pins	10
Type of terminal block	Push-in terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	5.08 mm

Electrical properties

Nominal voltage	300 V
Nominal current	10 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤5 mΩ

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet TB710PDF · 416 KB · 1.00 (03/27/2019) - EN

CAD & dimension drawings

3D file STEP 7TB710.91ZIP · 63 KB · 1.00 (05/06/2019)
